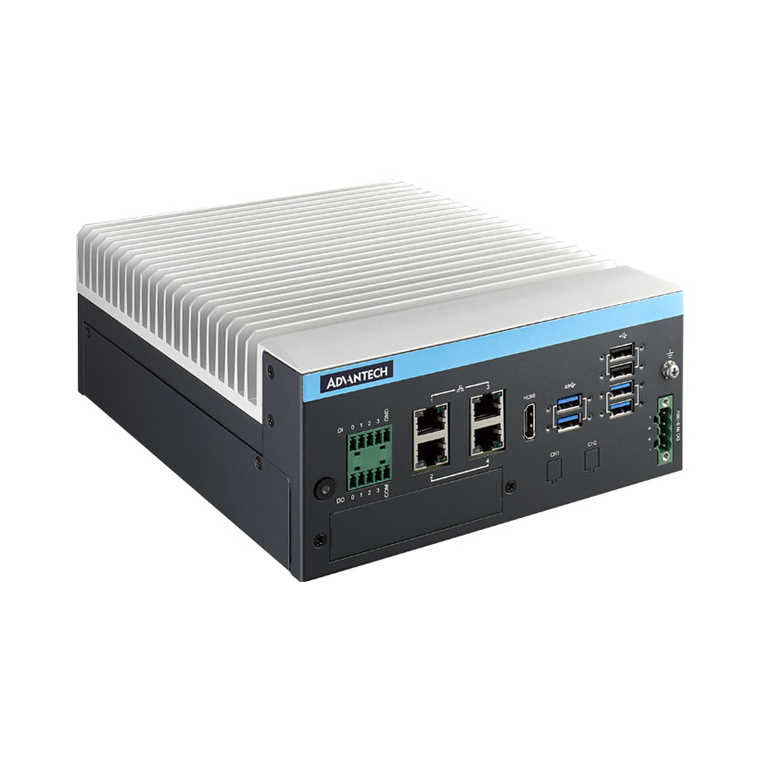

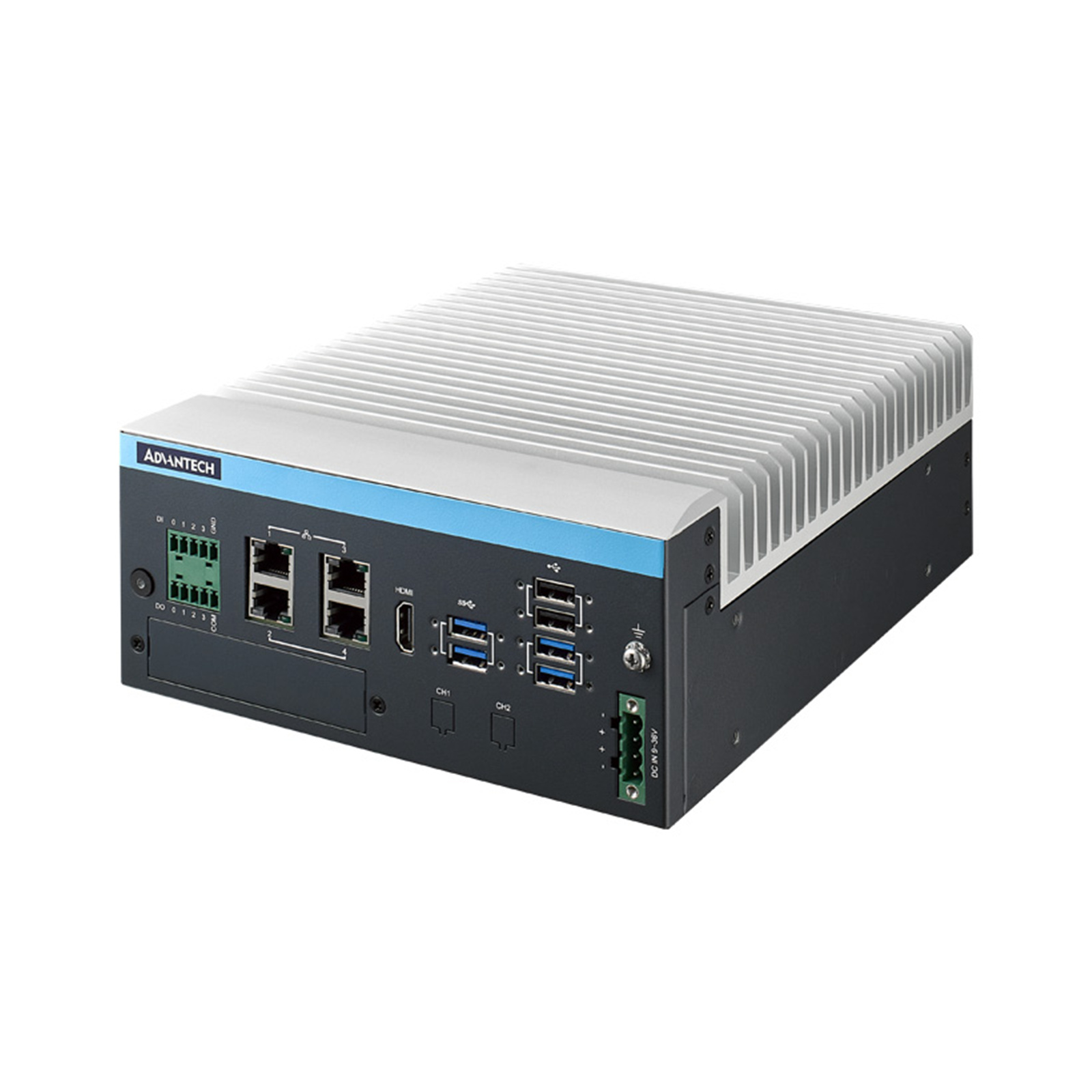

Advantech AI Inference System MIC-733-AO5A1 NVIDIA Jetson AGX Orin, 32G DRAM, 64G eMMC 4xGbE, 4xUSB, 2xmPCIe, 2xNano SIM slots, fanless,
Advantech AI Inference System MIC-733-AO5A1 NVIDIA Jetson AGX Orin, 32G DRAM, 64G eMMC 4xGbE, 4xUSB, 2xmPCIe, 2xNano SIM slots, fanless,
- Brand: Advantech
- MPN: MIC-733-AO5A1
- Part #: IPCAVH080016
- UPC:
- Brand: Advantech
- MPN: MIC-733-AO5A1
- Part #: IPCAVH080016
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech AI Inference System MIC-733-AO5A1 NVIDIA Jetson AGX Orin, 32G DRAM, 64G eMMC 4xGbE, 4xUSB, 2xmPCIe, 2xNano SIM slots, fanless,
- Brand: Advantech
- MPN: MIC-733-AO5A1
- Part #: IPCAVH080016

Product URL: https://www.pbtech.co.nz/product/IPCAVH080016/Advantech-AI-Inference-System-MIC-733-AO5A1-NVIDIA
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
AI System Based on NVIDIA® Jetson AGX Orin™
- Compact fanless design
- Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- Supports 4 x GbE (optional PoE), 4 x USB 3.2 Gen 2 (10 Gbit/s)
- Supports 2 x mPCIe, 2 x Nano SIM slots
- Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
Specifications
Processor
CPU
32GB: 8-core ARM Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
GPU
32GB: 1024-core NVIDIA Ampere™ GPU with 56 Tensor Cores
Memory
32G: 32GB LPDDR5
Flash
64GB eMMC
I/O
Ethernet
4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at)
Display
HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
External: 2 x USB 2.0, 4 x USB 3.2 Gen 2
Internal: 1 x USB 2.0
Digital I/O
4-ch DI, 4-ch DO
Power Switch
1 x Power ON/OFF Button
Serial Ports
2 x RS-232/422/485 (On-board pin header)
OTG USB
1 x Micro USB
Expansion
iModule (Optional)
1 x PCIe x8 (MIC-75M10-00A2)
Mini PCIe
2 x mPCIe (Signal: PCIe+USB)
SIM
2 x Nano SIM slots
M.2
1 x M.2 3052 (B-Key, Signal: USB)
TPM (Optional)
1 x TPM 2.0
GMSL (Optional)
2-ch GMSL2.0 with FAKRA connectors
iDoor (Optional)
1 x iDoor bracket reserve
Storage
M.2
1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card
1 x Micro SD slot
Power
Mode
AT/ATX (Default AT)
Input Voltage
9 ~ 36 VDC, 16-4A
Environment
Operating Temperature
0 ~ +60 °C with 0.7 m/s airflow (MaxN mode)
Operating Humidity
95% @ 40 °C (non-condensing)
Vibration
3Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
10G / 11 ms
Mechanical
Dimensions (W x D x H)
Core Module: 192 x 230 x 87 mm (7.55" x 9.05" x 3.43")
Plus MIC-75M10: 192 x 230 x 111 mm (7.55" x 9.05" x 4.37")
Weight
4.5 kg (9.9 lb)
Installation
Desktop / Wall mount
BSP
Jetpack
Above 5.0
