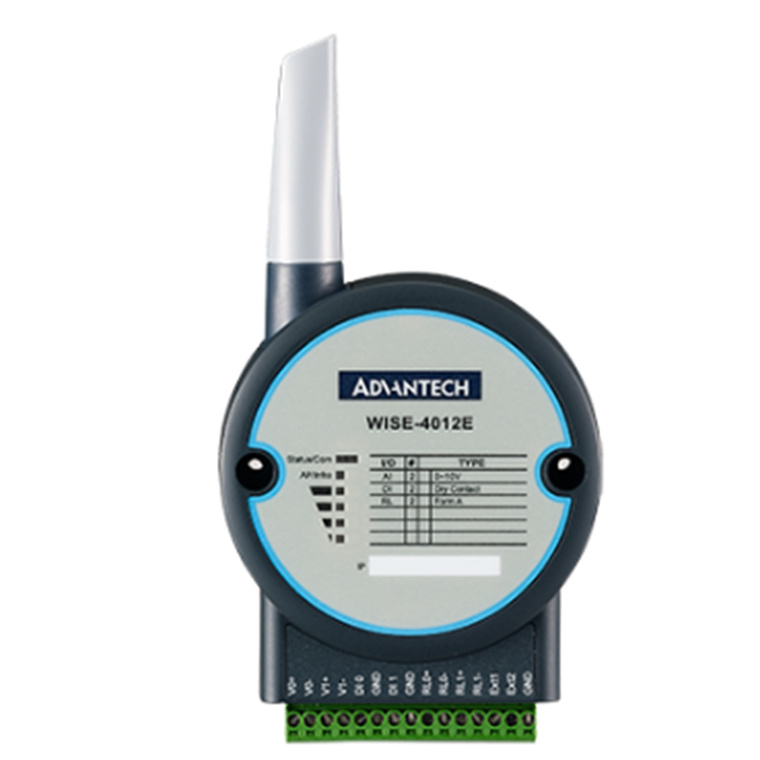

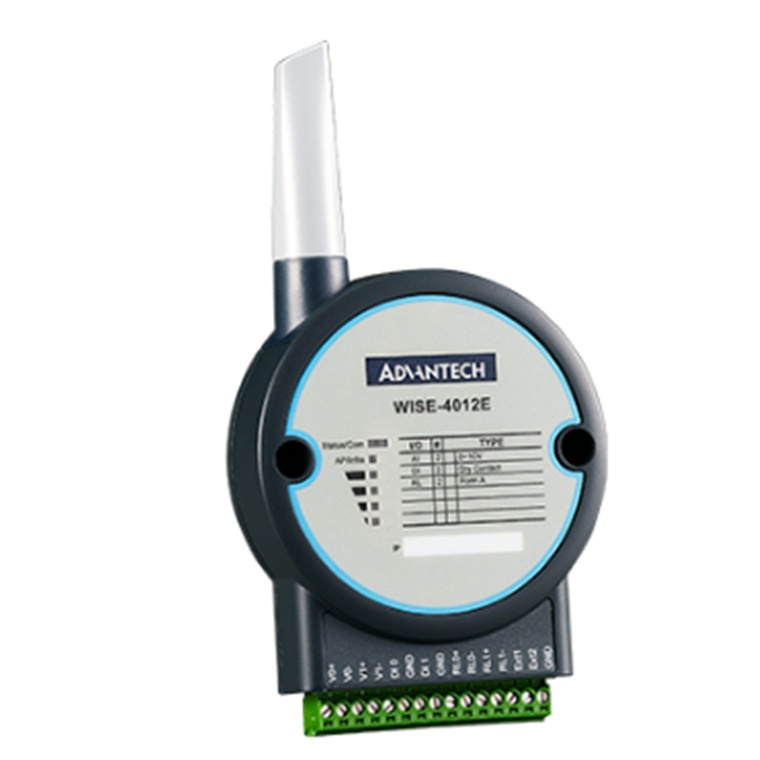

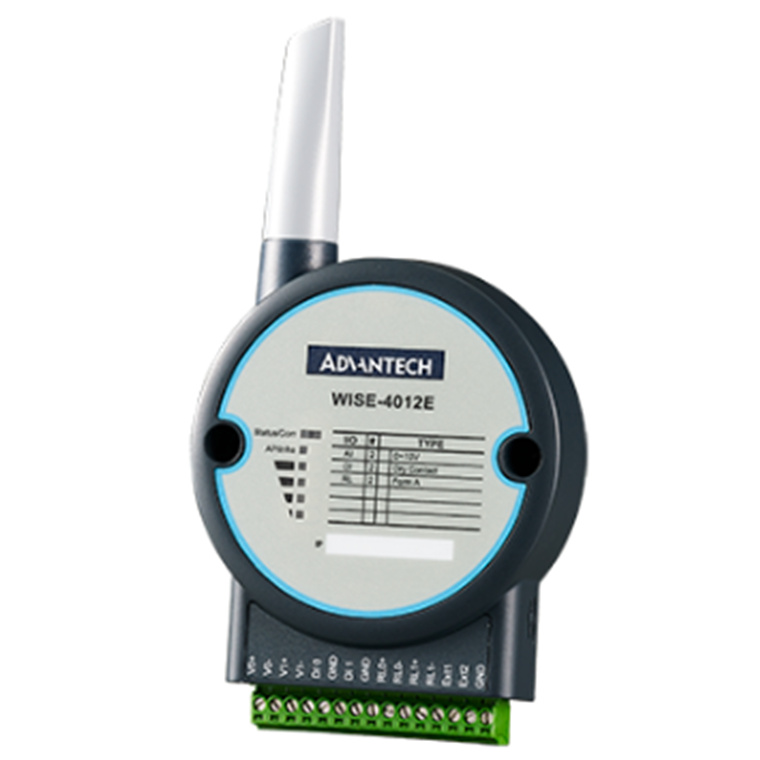

Advantech WISE-4012E-AE-WA 2.4G WiFi IoT Wireless I/O Developer Kit with WebAccess Demo Project
Advantech WISE-4012E-AE-WA 2.4G WiFi IoT Wireless I/O Developer Kit with WebAccess Demo Project
- Brand: Advantech
- MPN: WISE-4012E-AE-WA
- Part #: IPCAVH140002
- UPC:
- Brand: Advantech
- MPN: WISE-4012E-AE-WA
- Part #: IPCAVH140002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech WISE-4012E-AE-WA 2.4G WiFi IoT Wireless I/O Developer Kit with WebAccess Demo Project
- Brand: Advantech
- MPN: WISE-4012E-AE-WA
- Part #: IPCAVH140002

Product URL: https://www.pbtech.co.nz/product/IPCAVH140002/Advantech-WISE-4012E-AE-WA-24G-WiFi-IoT-Wireless-I
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- WiFi 2.4GHz IEEE 802.11b/g/n WLAN
- Includes WebAccess demo project for developer
- Includes extension board for simulating sensor status
- Supports Modbus/TCP with RESTful web service
- Supports file-based cloud storage and local logging with RTC time stamp
For more infomation: https://advdownload.advantech.com/productfile/PIS/WISE-4012E/file/WISE-4012E_DS(070621)20210706101618.pdf
Specifications
Analog Input
Channels
2
Input Range
0~10 V
Resolution(Bits)
12-bit
Sampling Rates(S/s)
10 Hz (sum)
Digital Input
Channels
2 (TTL)
Input Voltage
Dry Contact
Logic level 0: open
Logic level 1: close to Iso.GND
General
Connectors
1 x Plug-in screw terminal, 1 x Micro USB
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
Hardware
Certification
CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, ANATEL
LED Indicators
Status/Com, AP/Infra, Signal Strength
Power Consumption
1.5 W @ 5 VDC
Power Input
5 VDC
Watchdog Timer
1.6 s
Mechanical
Dimension (W x H x D)
80 x 139 x 25 mm
Enclosure
PC
Weight (Net)
0.16 kg
Power Requirements
Input Voltage
5 VDC
Relay Output
Channels
2 Form A
Contact Rating (Resistive)
1 A @ 30 VDC
Relay Type
2 x Form A
Resistance
Min. 1 GO min.
Wireless Communication
Frequency Band
IEEE 802.11 b/g/n 2.4 (GHz)
Standard(Technology)
WIFI
