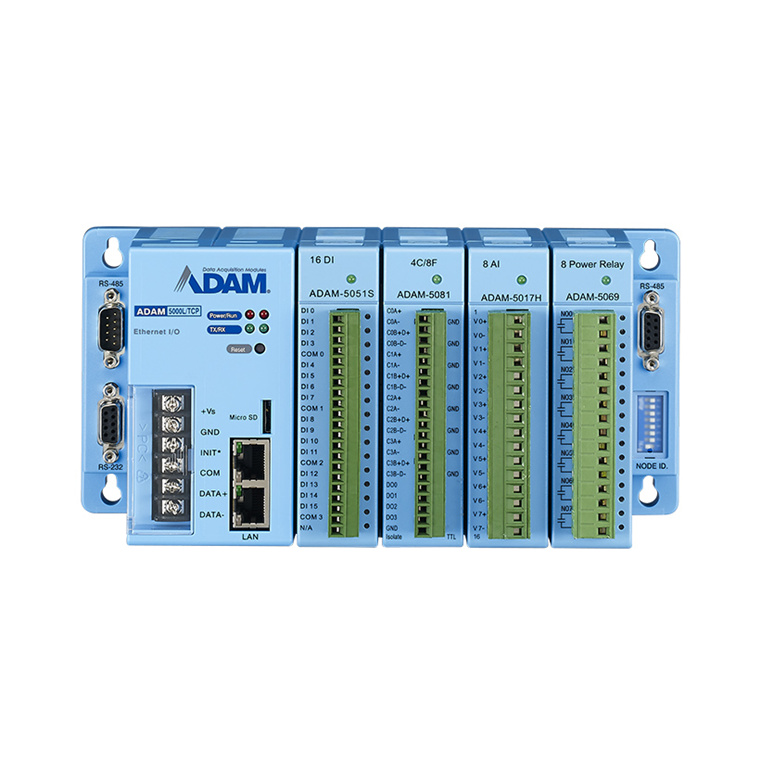

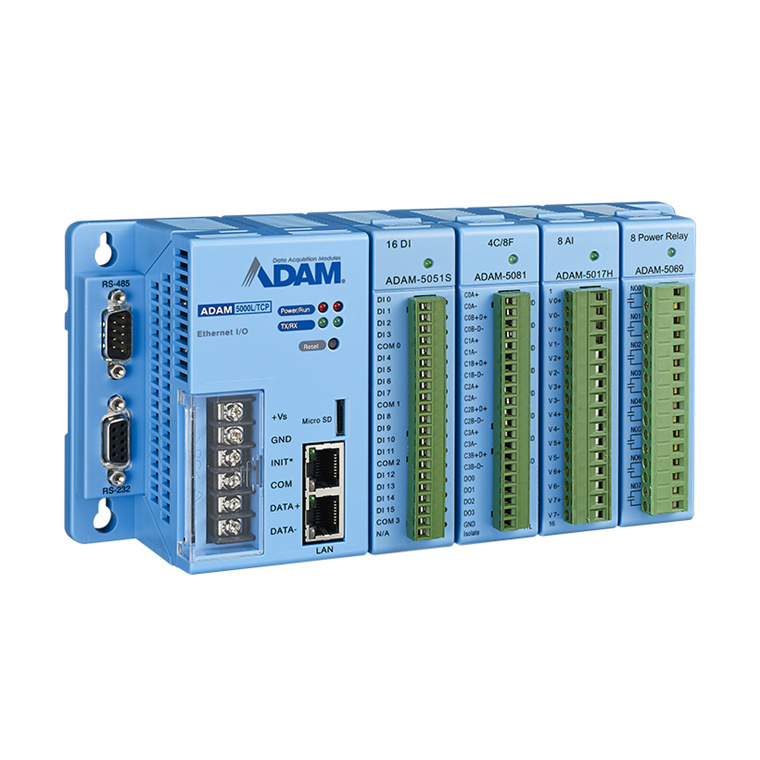

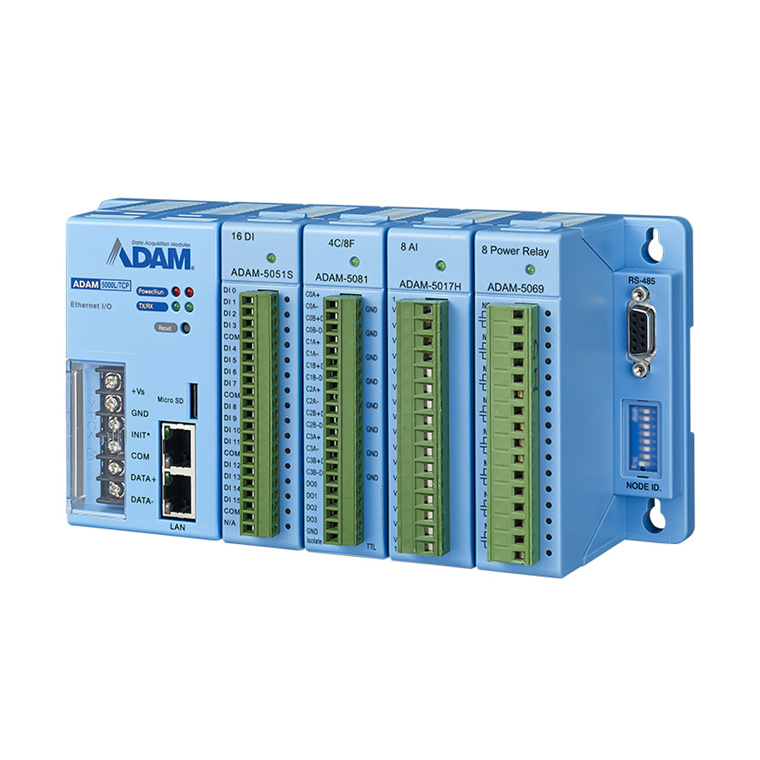

Advantech ADAM-5000L/TCP-BE 4 slot Remote I/O System with Modbus Ethernet
Advantech ADAM-5000L/TCP-BE 4 slot Remote I/O System with Modbus Ethernet
- Brand: Advantech
- MPN: ADAM-5000L/TCP-BE
- Part #: IPCAVH220102
- UPC:
- Brand: Advantech
- MPN: ADAM-5000L/TCP-BE
- Part #: IPCAVH220102
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech ADAM-5000L/TCP-BE 4 slot Remote I/O System with Modbus Ethernet
- Brand: Advantech
- MPN: ADAM-5000L/TCP-BE
- Part #: IPCAVH220102

Product URL: https://www.pbtech.co.nz/product/IPCAVH220102/Advantech-ADAM-5000LTCP-BE-4-slot-Remote-IO-System
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
ADAM-5000L/TCP
4-slot Distributed DA&C System for Ethernet
- 10/100Base-T auto-negotiation high-speed communication port
- Supports Modbus/TCP for easy integration
- Supports UDP event handling function
- 1500 VDC isolation for Ethernet communication
- Provides C and .NET class library to develop applications
- Built-in watchdog timer for system auto-reset
- Windows utility- I/O modules configuration and calibration- Network auto searching- Data stream setting- Current status monitoring and alarm trigger
- 4 I/O slots for up to 64 points data monitoring and control
- Allows concurrent access for 8 host PCs
- Allows remote configuration via Ethernet
- Up to 100 m communication distance w/o repeater
- ARM 32-bit RISC CPU
Specifications
Control System
CPU
Cortex M4
I/O Slots
ADAM-5000L/TCP: 4
Memory
Flash ROM:1 MB
Operating System
Real-time OS
LED Indicators
Power (3.3 V)
RUN
Communication (Link, Active, 10/100 Mbps, Tx, Rx)
Storage
1 x MicroSD slot
Communications (Ethernet)
Data Transfer Rate
Up to 100 Mbps
Event Response Time
< 5 ms
Interface
2 x RJ-45 sharing one MAC Address
Wiring
UTP, category 5 or greater
Communications (Serial)
Comm. Distance
RS-485: 1.2 km (4000 feet)
RS-232: 15 m
Comm. Protocol
Modbus/RTU
Data Transfer Rate
Up to 115.2 kbps
Interface
1 x DB9-M for RS-485
1 x DB9-F for RS-485
1 x DB9-F for RS-232 (System Monitoring)
Max. Nodes
15 (in RS-485 daisy-chain network for Remote I/O connection)
Power
Power Consumption
4.0 W @ 24 VDC (ADAM-5000L/TCP) (not including I/O modules)
Power Input
Unregulated 10 ~ 30 VDC
Software
API
VS.NET Llass Library
Windows Utility
Network setting, I/O configuration & calibration, data stream, alarm setting
Modbus/TCP OPC Server
Modbus/TCP OPC Server
Protection
Communication Line Isolation
3.000 VDC
I/O Module Isolation
3.000 VDC
LAN Communication
1.500 VDC
Overvoltage Protection
Yes
Power Reversal Protection
Yes
General
Certification
CE, FCC class A
Connectors
1 x DB9-M/DB9-F/screw terminal for RS-485 (communication)
1 x DB9-F for RS-232 (internal use)
1 x Screw-terminal for power input
2 x RJ-45 for LAN
Dimensions (W x H x D)
ADAM-5000L/TCP: 231 x 110 x 75 mm
Enclosure
ABS+PC
Mounting
DIN-rail, wall
Environment
Operating Humidity
5 ~ 95%, non-condensing
Operating Temperature
- 10 ~ 70°C (14 ~ 158°F)
Storage Temperature
- 25 ~ 85°C (-13 ~ 185°F)
