Features

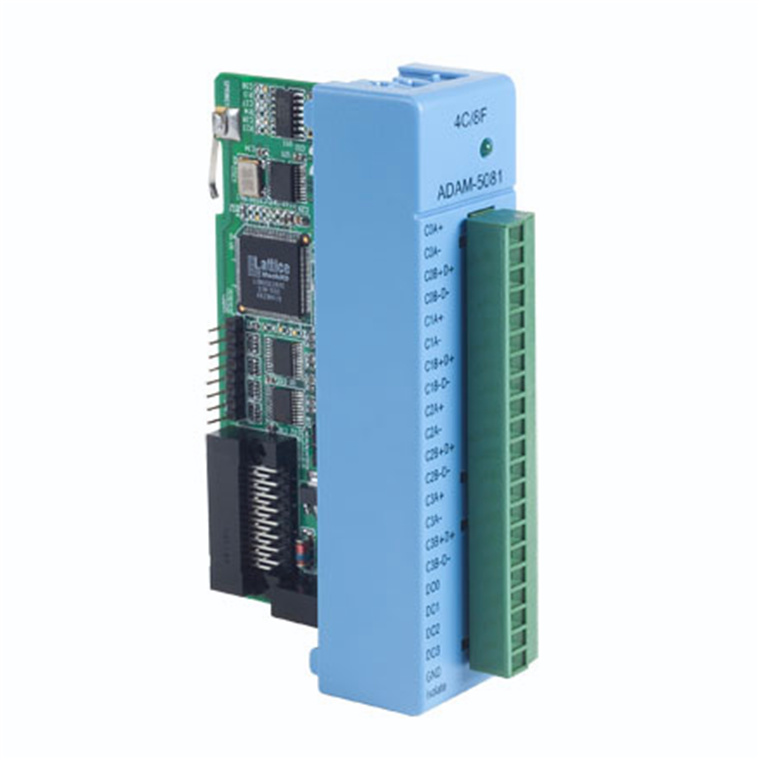

ADAM-5081
4-ch High Speed Counter/Frequency Module
- Minimum Pulse Width: 1µ sec. (Frequency/Counter Mode)
- Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
- Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
- Isolated Voltage: 2500 Vdc
- Programmable Digital Noise Filter: 1~65000µ sec.
- 4 channels for Counter, 8 channels for Frequency
- Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag
Specifications
General
Certification
CE
Connectors
1 x plug-in screw terminal (# 14 ~ 18 AWG)
Power Consumption
1.1 W (Max.)
Enclosure
ABS+PC
Counter/Frequency
Channels
4/8
Maximum Count
4,294,967,295 (32 bit)
Input Frequency
5 Hz ~ 1 MHz max. (frequency mode)
1 MHz max. (counter mode)
Input Level
Isolated or TTL level
Minimum Pulse Width
1µsec. (frequency mode)
1µsec. (counter mode)
Minimum Input Current
2 mA (isolated)
Isolation Input Level
Logic level 0: 3 VDC max,
Logic level 1: 10 ~ 30 VDC
TTL Input Level
Logic level 0: 0 ~ 0.8 VDC,
Logic level 1: 2.3 ~ 5 VDC
Isolation voltage
2,500 VRMS
Modes
Counter (up/down, bi-direction, up, A/B Phase), Frequency
Counter Aux. Function
Initial preset, hi-low alarm setting, alarm digital output mapping, overflag
Programmable Digital Filter
1 ~ 65,000 µsec (Noise Filter Function)
Note
Does not support ADAM-5510 KW series
