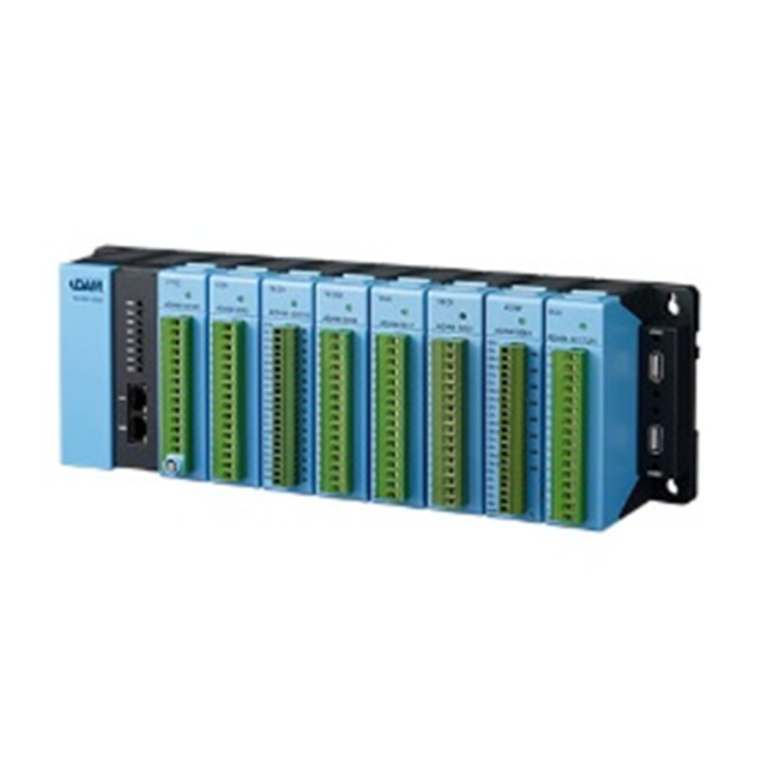

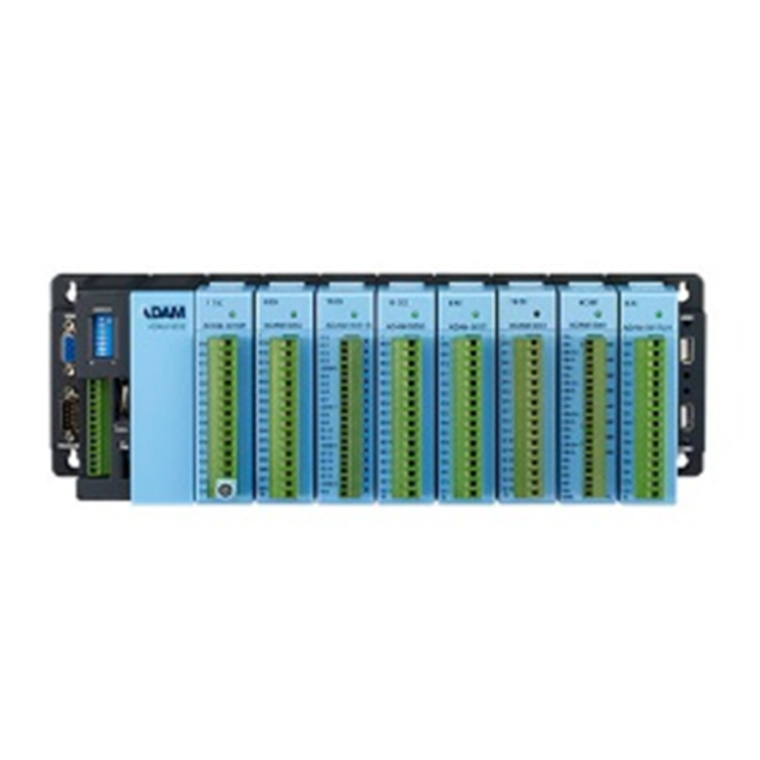

Advantech ADAM-5630E-AE 8-slot Edge Intelligent DAQ controller

PB Tech price
PB Tech price
$ 1,122 .28
 +GST
$ 1,290 .62
 inc GST
$1,122.28  +GST
$1,290.62

Advantech ADAM-5630E-AE 8-slot Edge Intelligent DAQ controller

  • Brand: Advantech
  • MPN: ADAM-5630E-AE
  • Part #: IPCAVH220138
  • UPC:
PB Tech price
$ 1,122 .28 $ 1,290 .62
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 16 Oct When will I receive it?
$1,122.28  +GST
$1,290.62

Finance from $12.15 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

ADAM-5630

8-slot Edge Intelligent DAQ controller

- Linux C programming based on Linux operating system
- Built-in real-time clock and watchdog timer
- 4 serial communication ports onboard
- 2 Ethernet Ports
- 4 or 8 I/O slot expansion
- 1 micro SD slot expansion for data storage

Specifications

Control System

CPU

TI Cortex-A8 AM3352 600MHz

Memory

512MB, DDR3L

Battery memory

128K

RTC (Real Time Clock)

Provide second, minute, hour, date, day of week, month, year

OS

RT-Linux V3.12

Storage

1 x 1GB NAND Flash (system)
1 x Mirco-SD (Storage)

Programming

Linux C

Watch dog

Yes

I/O Slot

Optional 8 or 4 slots

LED Indicators

PWR,RUN,ERR,BAT,LED1/2/3/4

Display

VGA, Resolution 800 x 600

USB

2 x USB 2.0

Serial Communication

Max. Nodes

256 (in RS-485 daisy-chain network)

Distance

1.2Km (4,000feet in RS-485 mode)

Speed

50-115200 bps

Isolation

2500 VDC (COM1,2,3 only)

Connector

COM1: Screw terminal (2-PIN RS-232/485)
COM2: Screw terminal (RS-485)
COM3: Screw terminal (RS-485)
COM4: DB9-M (RS-232/485)

Ethernet Communication

Connector

2 x RJ45

Distance

100 m

Speed

10/100/1000 Mbps

System Software

Embedded Service

Web Server, FTP Sever, Telnet Server, SSH Server,
SNMP Server

SDK Provided

Standard SDK by Linux C

Power Consumption

Power Consumption

8W

Power input

10 ~ 30 VDC

Reverse Protection

Yes

General

Certification

CE,FCC Class A (No RED certification)

Dimensions

4-slots 231 x 110 x 75 mm
8-slots 355 x 110 x 75 mm

Enclosure

ABS-PC

Mounting

DIN-Rail, Wall-Mount

Environment

Humidity

5 ~ 95% non-condensing

Operating Temperature

-40 ~ 70°C

Storing Temperature

-40 ~ 85°C
