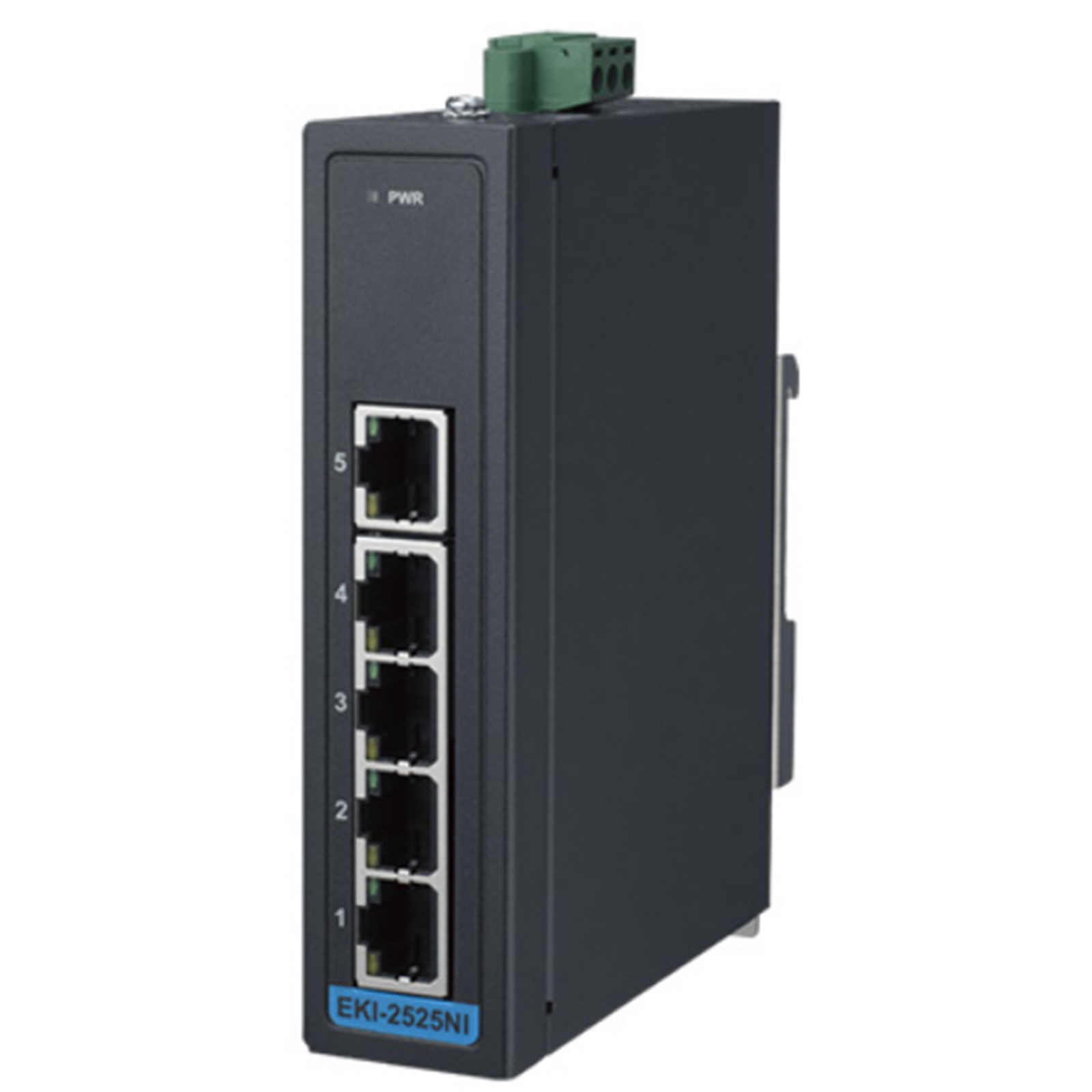

Advantech EKI-2525NI-A 5FE Unmanaged Ethernet Switch, -40~75
Out of stock
Advantech EKI-2525NI-A 5FE Unmanaged Ethernet Switch, -40~75
- Brand: Advantech
- MPN: EKI-2525NI-A
- Part #: IPCAVH220463
- UPC:
- Brand: Advantech
- MPN: EKI-2525NI-A
- Part #: IPCAVH220463
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2525NI-A 5FE Unmanaged Ethernet Switch, -40~75
- Brand: Advantech
- MPN: EKI-2525NI-A
- Part #: IPCAVH220463

Product URL: https://www.pbtech.co.nz/product/IPCAVH220463/Advantech-EKI-2525NI-A-5FE-Unmanaged-Ethernet-Swit
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Supports wide operating temperatures from -40 to 75°C
Comply with Profinet conformance class A
Specifications
Communications
?Standard
IEEE 802.3, 802.3u, 802.3x
LAN
10/100Base-T (X)
Transmission Distance
Up to 100 m
Transmission Speed
Up to 100 Mbps
Interface
Connectors
8 x RJ45 (EKI-2528N) or 5 x RJ45 (EKI-2525N) terminal
block plug-in with lock 3 pins fixed flange screw
LED Indicators
PWR
10/100T (X): Link/Activity, Duplex/Collision
Power
Input Current
EKI-2525NI 0.22A@12VDC
0.05A@48VDC
EKI-2528NI 0.25A@12VDC
0.0625A@48VDC
Power Consumption
EKI-2525NI: 2W
EKI-2528NI: 2.4W
Power Input
12 ~ 48 VDC, single inputs
Mechanism
?Dimensions (W x H x D)
EKI-2525NI: 30 x 120 x 95 mm (1.18" x 4.72" x 3.74")
EKI-2528NI: 30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Enclosure
IP30, Metal shell with solid mounting kits
Mounting
DIN-rail
Protection
Power Reverse
Present
Overload current
Present
Environment
Operating Temperature
-40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
5 ~ 95% (non-condensing)
Storage Humidity
5 ~ 95% (non-condensing)
