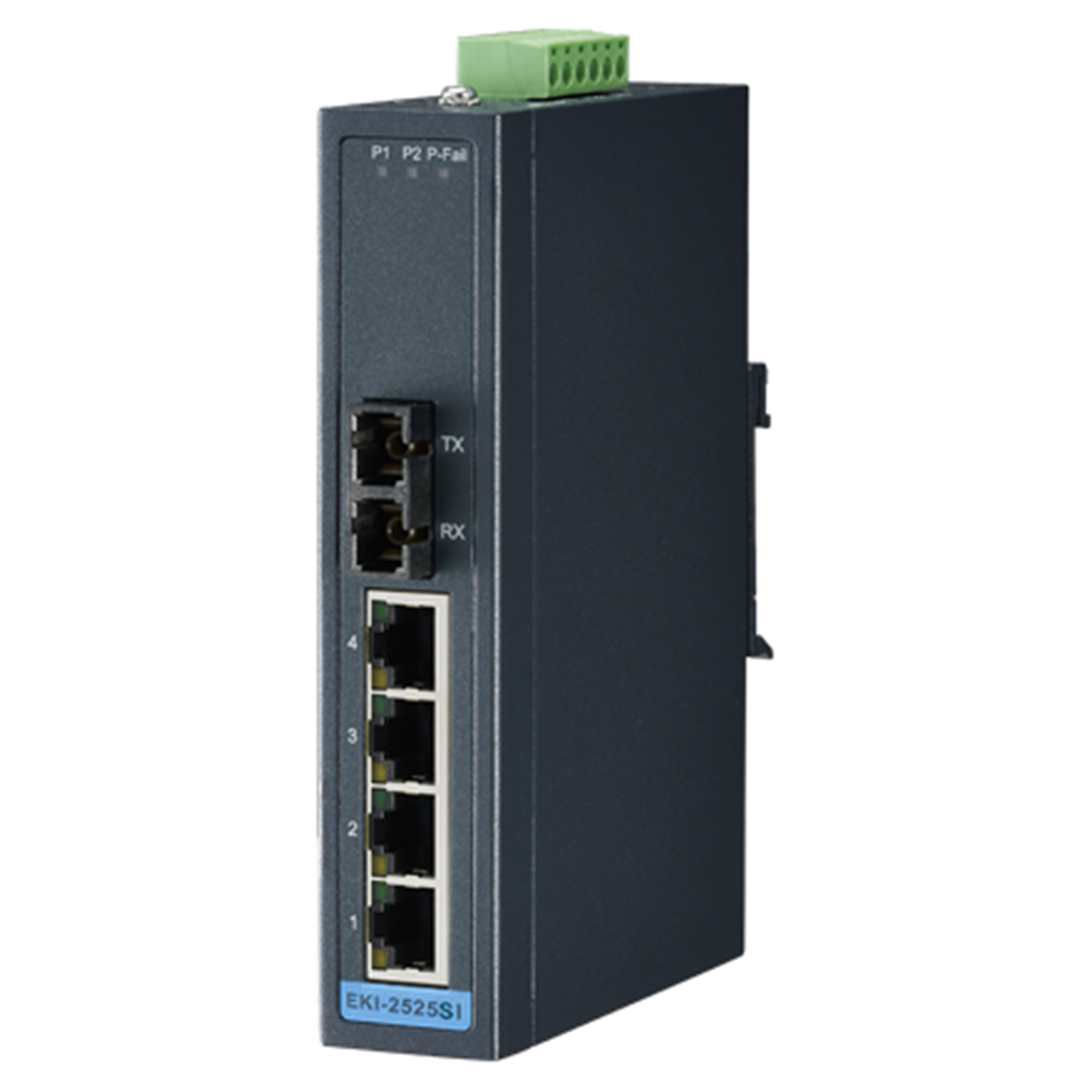

Advantech EKI-2525SI-ST-AE 4+1 ST Single-mode Unmanaged Ethernet Switch, -40 75
Out of stock
Advantech EKI-2525SI-ST-AE 4+1 ST Single-mode Unmanaged Ethernet Switch, -40 75
- Brand: Advantech
- MPN: EKI-2525SI-ST-AE
- Part #: IPCAVH220466
- UPC:
- Brand: Advantech
- MPN: EKI-2525SI-ST-AE
- Part #: IPCAVH220466
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2525SI-ST-AE 4+1 ST Single-mode Unmanaged Ethernet Switch, -40 75
- Brand: Advantech
- MPN: EKI-2525SI-ST-AE
- Part #: IPCAVH220466

Product URL: https://www.pbtech.co.nz/product/IPCAVH220466/Advantech-EKI-2525SI-ST-AE-41-ST-Single-mode-Unman
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
4FE+1FE ST Single-mode Unmanaged Ethernet Switch, -40~75?
- Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
- Provides 1 x 100 Mbps Single-mode ST type fiber optic port
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides redundant 12 ~ 48 VDC power input
- Provides flexible mounting: DIN-rail and wall mount
Specifications
Communications
?Standard
IEEE 802.3, 802.3u, 802.3x
LAN
10/100Base-T (X), 100Base-FX
Transmission Distance
Ethernet: Up to 100 m
Multi-mode Fiber: Up to 2 km (EKI-2525MI)
Single-mode Fiber: Up to 30 km (EKI-2525SI)
Transmission Speed
Up to 100 Mbps
Optical Fiber
?Multi-Mode
Wavelength: 1310nm
(EKI-2525MI) Tx Power: -14/-20 dBm
Rx Sensitivity: -31 dBm
Parameters: 50/125 um, 62.5/125 um
Single-Mode
Wavelength: 1310 nm
(EKI-2525SI) Tx Power: -8/-15 dBm
Rx Sensitivity: -34 dBm
Parameters: 9/125 um
Interface
?Connectors
4 x RJ45 ports
1 x SC Type Fiber Connector (EKI-2525MI/SI) or
1 x ST Type Fiber Connector (EKI-2525MI/SI-ST)
6-pin removable screw terminal (Power & Relay)
LED Indicators
P1, P2, P-Fail
10/100TX: Link/Activity, Duplex/Collision
Power
?Power Consumption
Max. 5 W
Power Input
12 ~ 48 VDC, Redundant Dual Inputs
Fault Output
1 Relay Output
Mechanism
?Dimensions (W x H x D)
30 x 140 x 95 mm (1.18" x 5.52" x 3.74")
Enclosure
IP30, Metal Shell with Solid Mounting Kits
Mounting
DIN-Rail, Wall
Protection
?Reverse Polarity
Present
Overload Current
Present
Environment
?Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
10 ~ 95% (non-condensing)
Storage Humidity
10 ~ 95% (non-condensing)
?MTBF
382,904 hours
Certification
?EMI
CE, FCC Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Shock
IEC60068-2-27
Freefall
IEC60068-2-32
Vibration
IEC60068-2-6
