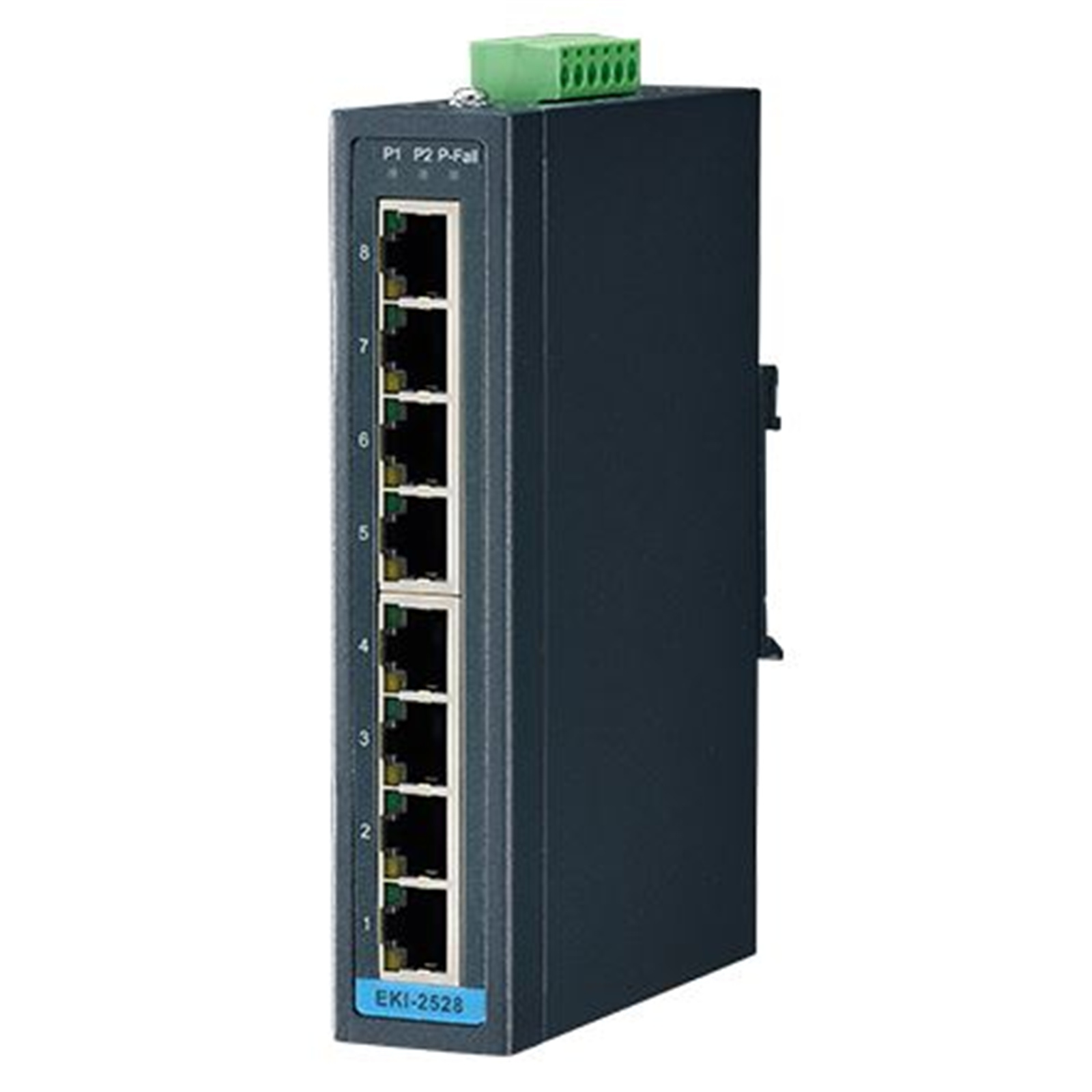

Advantech EKI-2528I-LA-AE 8 FE Unmanaged Switch w/Wide Temp. Low AC
Out of stock
Advantech EKI-2528I-LA-AE 8 FE Unmanaged Switch w/Wide Temp. Low AC
- Brand: Advantech
- MPN: EKI-2528I-LA-AE
- Part #: IPCAVH220475
- UPC:
- Brand: Advantech
- MPN: EKI-2528I-LA-AE
- Part #: IPCAVH220475
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2528I-LA-AE 8 FE Unmanaged Switch w/Wide Temp. Low AC
- Brand: Advantech
- MPN: EKI-2528I-LA-AE
- Part #: IPCAVH220475

Product URL: https://www.pbtech.co.nz/product/IPCAVH220475/Advantech-EKI-2528I-LA-AE-8-FE-Unmanaged-Switch-wW
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
8FE Unmanaged Ethernet Switch -40~75?
- Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Supports wide operating temperatures from -40 to 75°C
Specifications
Certification
EMI
CE, FCC Class A
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
EN 60950, UL60950, Class 1 Division 2
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Temperature (Max. Operating)
75°C (167°F)
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
-
Fiber Port Interface
-
Fiber Port Connector Type
-
Fiber Transmission Distance
-
Fiber Transmission Speed
-
RJ-45 Port Number
8
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m100 m
RJ-45 Transmission Speed
10/100 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
-
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Enclosure (Plastic)
-
IP Rating
IP30
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
4-pin removable terminal (power)
Power Consumption
5.1W
Power Input (AC)
10~24 VAC
Power Input (DC)
12 ~ 48 VDC
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Reverse Polarity
Present
