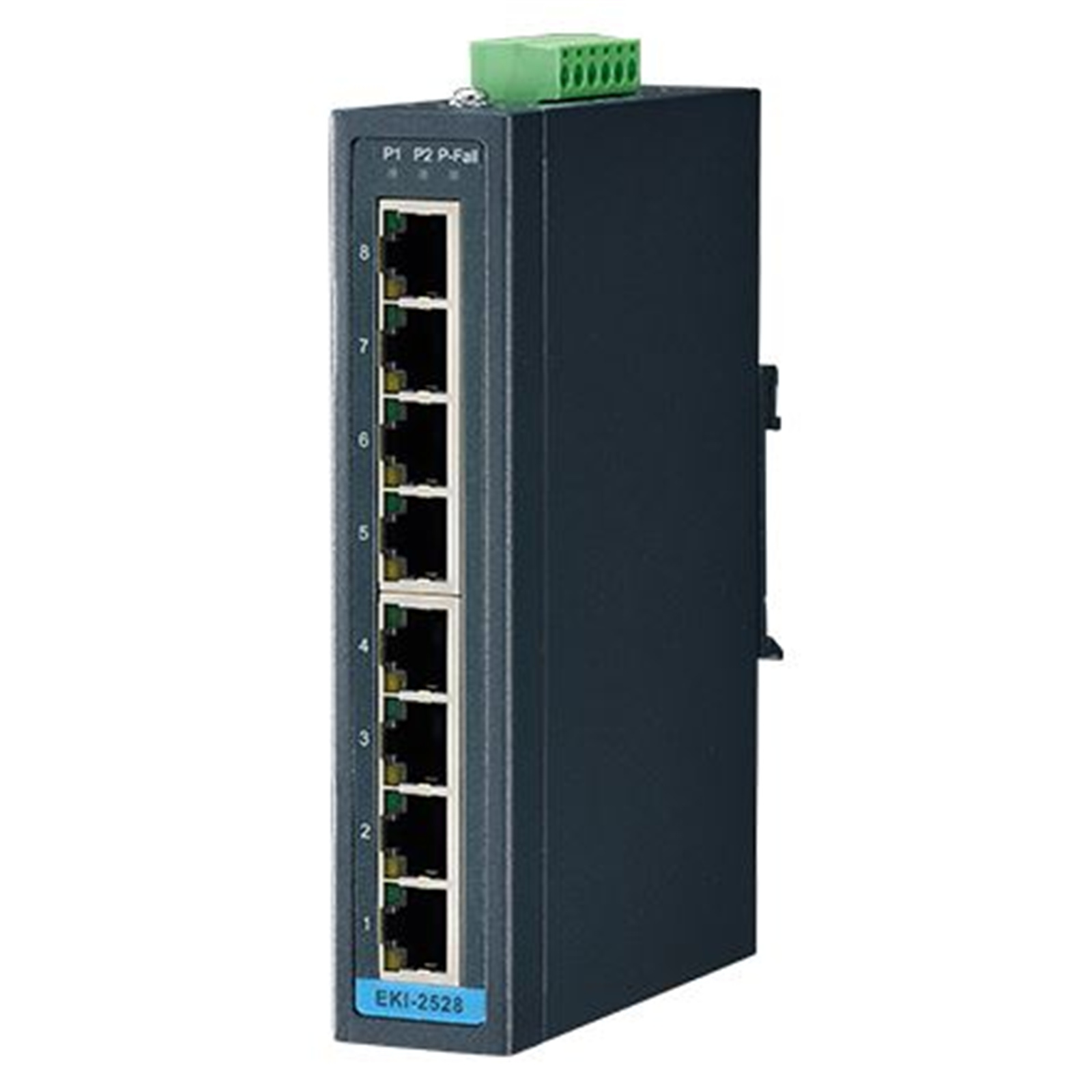

Advantech EKI-2528NI-A 8-port Ethernet Switch w/ Wide Temp
Out of stock
Advantech EKI-2528NI-A 8-port Ethernet Switch w/ Wide Temp
- Brand: Advantech
- MPN: EKI-2528NI-A
- Part #: IPCAVH220477
- UPC:
- Brand: Advantech
- MPN: EKI-2528NI-A
- Part #: IPCAVH220477
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2528NI-A 8-port Ethernet Switch w/ Wide Temp
- Brand: Advantech
- MPN: EKI-2528NI-A
- Part #: IPCAVH220477

Product URL: https://www.pbtech.co.nz/product/IPCAVH220477/Advantech-EKI-2528NI-A-8-port-Ethernet-Switch-w-Wi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
8FE Unmanaged Ethernet Switch, -40~75?
- Provides 8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Supports wide operating temperatures from -40 to 75°C
Specifications
Certification
EMI
CE, FCC Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety
UL 62368
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Temperature (Max. Operating)
75°C (167°F)
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
-
Fiber Transmission Distance
-
Fiber Transmission Speed
-
RJ-45 Port Number
8
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
-
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Enclosure (Plastic)
-
IP Rating
IP30
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
6-pin removable screw terminal
Power Input (AC)
-
Power Input (DC)
12 ~ 48 VDC
Power Input (PoE)
-
Power Input (Battery)
-
Redundant Dual Inputs
Yes
Power Consumption
2.4W
Protection
Overload Current
Present
Reverse Polarity
Present
