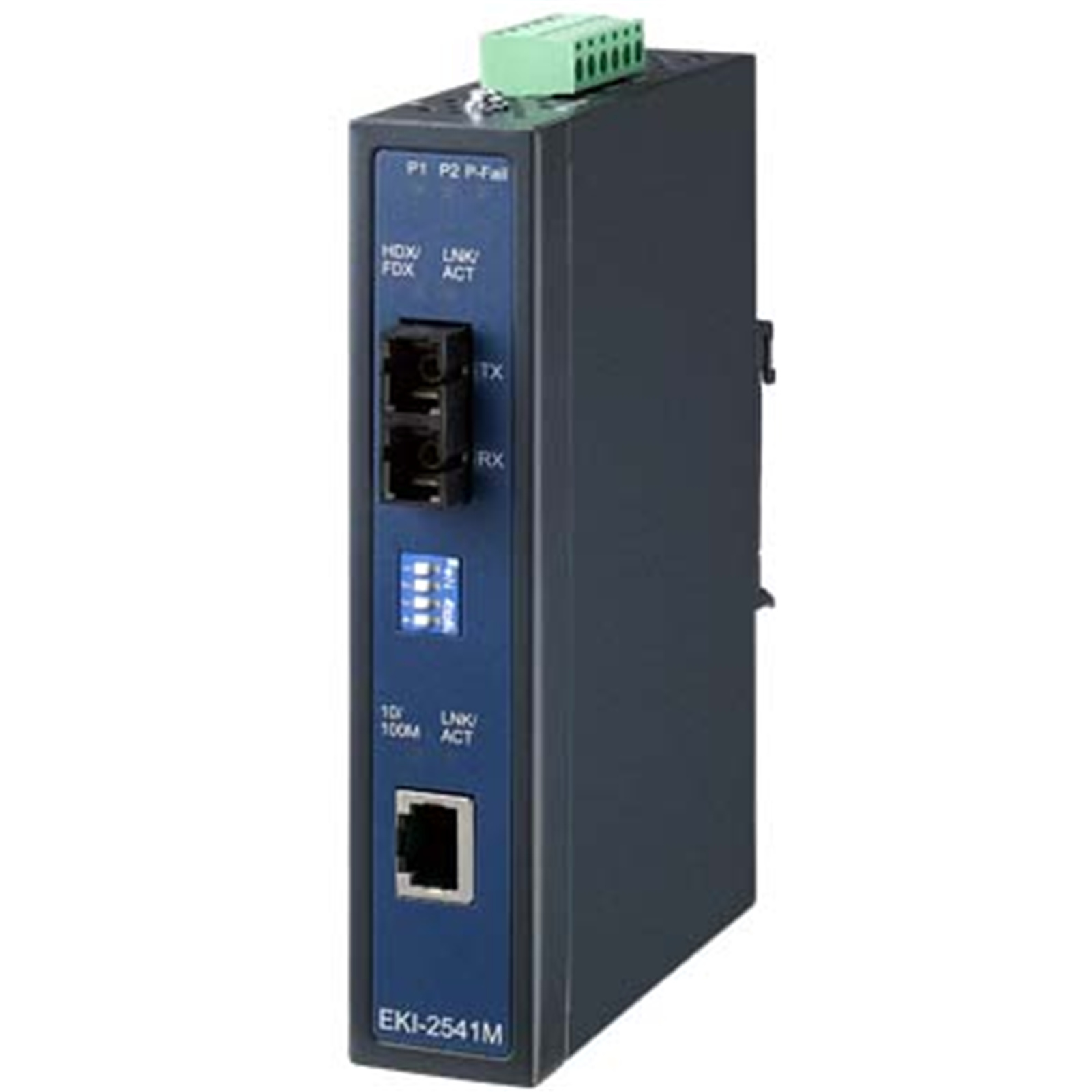

Advantech EKI-2541MI-BE Hardened Media Converter, 100Mbps, Multimode 1310nm, 2km, SC

PB Tech price
PB Tech price
$ 349 .14
 +GST
$ 401 .51
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-2541MI-BE Hardened Media Converter, 100Mbps, Multimode 1310nm, 2km, SC

  • Brand: Advantech
  • MPN: EKI-2541MI-BE
  • Part #: IPCAVH220480
  • UPC:
PB Tech price
$ 349 .14 $ 401 .51
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

The EKI-2541M are designed to transparently convert Ethernet networks to fiber networks. The advantages of fiber optics are the wide bandwidth, EMI immunity, and longdistance transmission. Therefore, the EKI-2541M are ideal for fiber-to-building applications at central offices or local sites. These converters support MDI/MDIX auto detection, thus eliminating the need to use crossover wires. Furthermore, they can operate normally at temperatures of -10 ~ 60°C and they accept a wide voltage range of 12 ~ 48 VDC. They also feature 3,000 VDC surge protection (EFT) against overvoltage, making them highly suitable for harsh operating environments. The EKI-2541M are enhanced Ethernet to fiber-optic converters. Aside from their standard features, these versatile converters also feature link fault pass-through. Typically, when one side of the link fails, the other side continues transmitting packets and waiting for a response that never arrives from the disconnected side. However, the EKI-2541M will force the link to shut down as soon as the link failure is detected, thus giving the application software a chance to correct the problem.

- 1 x 10/100 Mbps Ethernet port with RJ45 connector
- 1 x 100 Mbps multi-mode/single-mode SC-type fiber port
- Internal jumper for link fault pass-through
- Supports full/half duplex flow control
- Supports store and forward transmission
- Supports auto-negotiation
- Supports MDI/MDI-X auto-crossover
- Redundant 12 ~ 48 VDC power input
- Flexible mounting options: DIN rail and panel mount

Specifications

Communication

Standard

IEEE802.3, 802.3u, 802.3x

LAN

10/100BASE-TX, 100BASE-FX

Transmission Distance Etherne

Up to 100 m
Fiber: Multi-mode: up to 2 km

Transmission Speed

Up to 100 Mbps

Optical Fiber

Multi-mode
Wavelength: 1310 nm
(EKI-2541M/MI) Tx Power: -14/-20 dBm
Rx Sensitivity: -31 dBm
Parameters: 50/125 um,62.5/125 um

Interface

Connectors

1 x RJ45
1 x SC type fiber connector
6-pin removable screw terminal (power)

LED Indicators

P1, P2, P-Fail
Ethernet: 10/100 m, LNK/ACT
Fiber: HDX/FDX, LNK/ACT

DIP Switch

Port/Power Alarm, LFP
Fiber: HDX/FDX, Converter/Switch

Power

Power Consumption

Max. 2.7 W

Power Input

12 ~ 48 VDC, redundant dual inputs

Mechanism

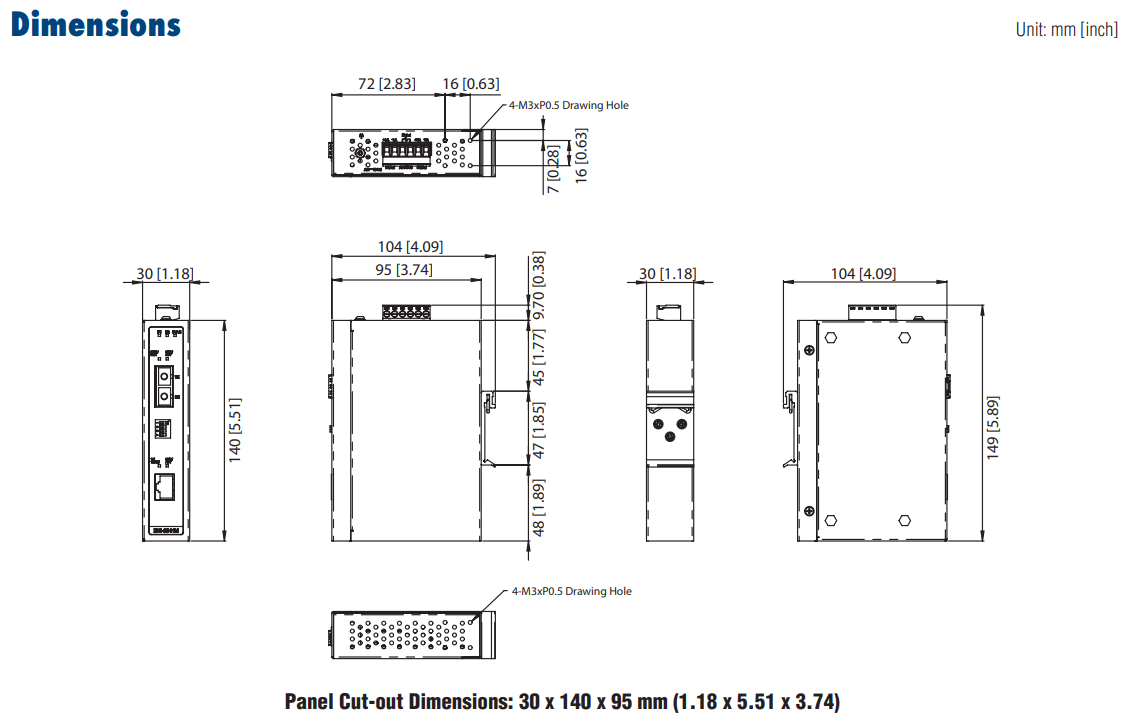

Dimensions (W x H x D)

30 x 140 x 95 mm (1.18"x5.51"x3.74")

Mounting

DIN-rail, Wall (optional)

Enclosure

IP30, Metal shell with solid mounting

Protection

Power Reverse

Present

Overload current

Present

Environment

Operating Temperature (Wide Temp. model )

-40 ~ 75°C (-40 ~ 167°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Operating Humidity

5 ~ 95% (non-condensing)

Storage Humidity

0 ~ 95% (non-condensing)

MTBF

577,175 hours

Manufacturer Part No:
EKI-2541MI-BE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
IPCAVH220480
Product Model:
EKI-2541MI-BE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
