Advantech EKI-2701HP-AE Industrial IEEE 802.3at Gigabit PoE Injector
Out of stock
Advantech EKI-2701HP-AE Industrial IEEE 802.3at Gigabit PoE Injector
- Brand: Advantech
- MPN: EKI-2701HP-AE
- Part #: IPCAVH220492
- UPC:
- Brand: Advantech
- MPN: EKI-2701HP-AE
- Part #: IPCAVH220492
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2701HP-AE Industrial IEEE 802.3at Gigabit PoE Injector
- Brand: Advantech
- MPN: EKI-2701HP-AE
- Part #: IPCAVH220492

Product URL: https://www.pbtech.co.nz/product/IPCAVH220492/Advantech-EKI-2701HP-AE-Industrial-IEEE-8023at-Gig
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HP is compliant IEEE 802.3af/at and inject 30W for PD device. This product supports wide power input range between 24 to 48 VDC.
- Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
- IEEE 802.3af/at compliant, supports a full 30 watt output
- Power input (24 ~ 48 VDC), inject 30 W for each port
- Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
For more information: https://advdownload.advantech.com/productfile/PIS/EKI-2701HP/file/EKI-2701HP_HPI_DS(040821)20210408162652.pdf
Specifications
Model
EKI-2701HP-AE
PoE+ Injector, supports a full 30 W output
Communications
Standard
IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab
LAN
10/100/1000Base-T (X)
Transmission Distance
Up to 100 m (mid-span)
Transmission Speed
Up to 1000 Mbps
Interface
Connectors
PoE OUT: RJ45
DATA IN: RJ45
6-pin removable screw terminal
LED Indicators
PWR1, PWR2, PoE status, Link/Activity
Power
Power Consumption
Max. 33.36 W @ 24 VDC (Full load PoE)
Power Input
24 ~ 48 VDC, redundant dual power inputs
Power Output
30 W @ 55 VDC

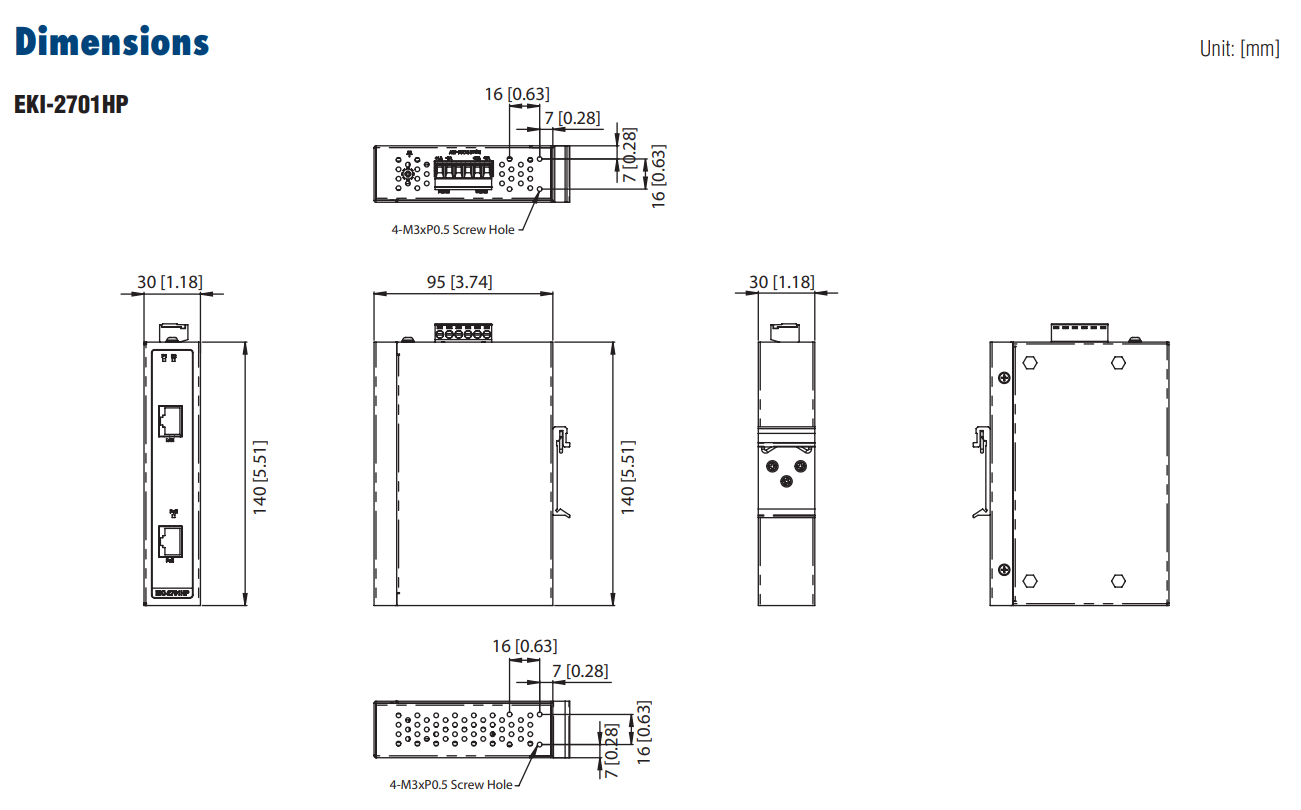

Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Enclosure
IP30, Metal shell with solid mounting kits
Mounting
DIN-rail, Wall
Protection
Reverse
Present
Overload Current
Present
Environment
Operating Temperature
-10 ~ 60°C (-14 ~ 140°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
5 ~ 95% (non-condensing)
Storage Humidity
0 ~ 95% (non-condensing)
MTBF
1,419,817 hours
Certification
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
