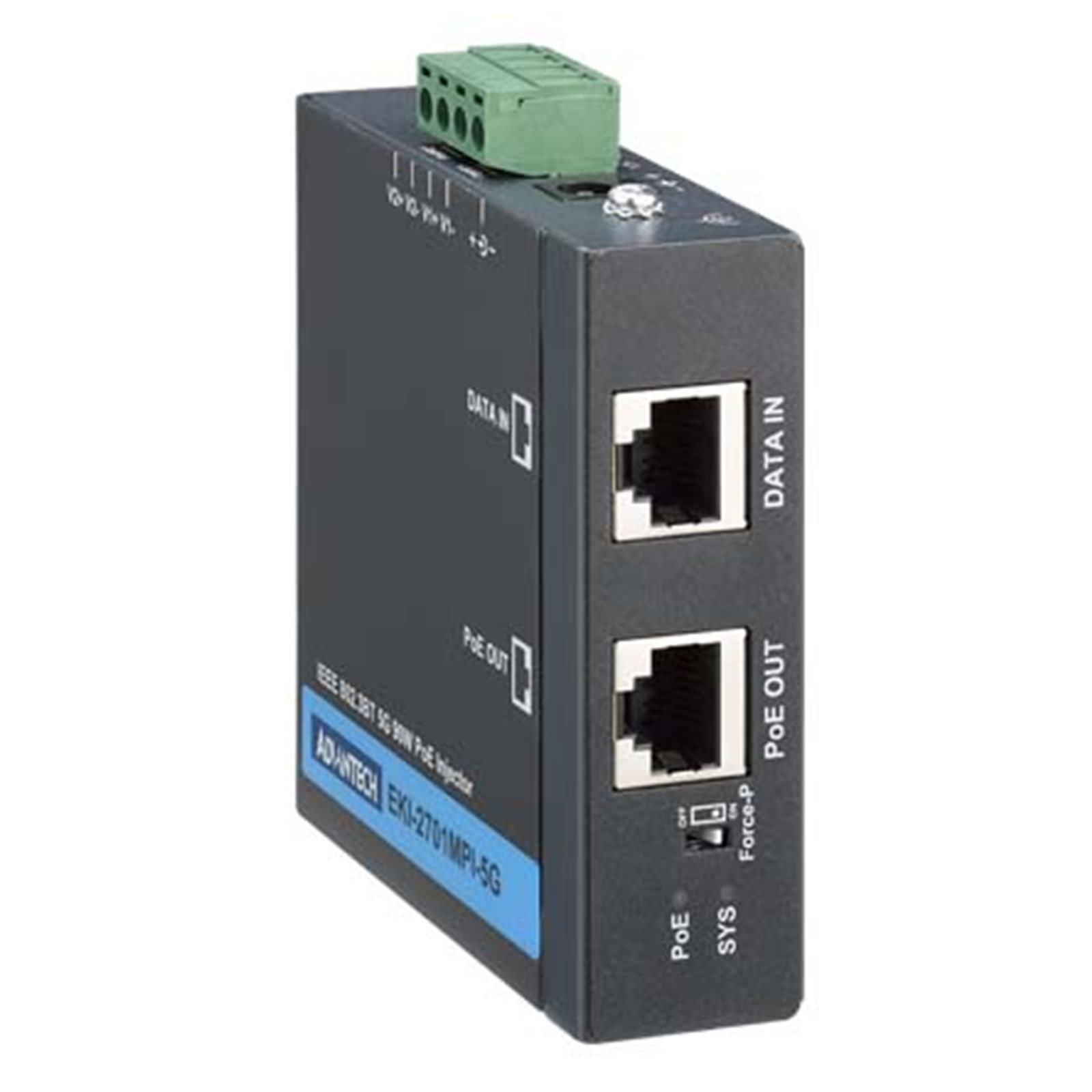

Advantech EKI-2701MPI-5GPS-A PoE injector 802.3bt-5G W/ PSU
Out of stock
Advantech EKI-2701MPI-5GPS-A PoE injector 802.3bt-5G W/ PSU
- Brand: Advantech
- MPN: EKI-2701MPI-5GPS-A
- Part #: IPCAVH220496
- UPC:
- Brand: Advantech
- MPN: EKI-2701MPI-5GPS-A
- Part #: IPCAVH220496
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2701MPI-5GPS-A PoE injector 802.3bt-5G W/ PSU
- Brand: Advantech
- MPN: EKI-2701MPI-5GPS-A
- Part #: IPCAVH220496

Product URL: https://www.pbtech.co.nz/product/IPCAVH220496/Advantech-EKI-2701MPI-5GPS-A-PoE-injector-8023bt-5
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
EKI-2701MPI-5G is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT6(A)/CAT7 cable to serve up to 90W.
EKI-2701MPI-5G injector flexibly deploys standard and high-powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distance up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting installation options provide greater user expediency.
With the use of EKI-2701MPI-5G, Wifi AP at 5Gbps transmission rate can be easily deployed as it is capable of providing power up to 90W and supporting multi data rate.
- Supports multi data rate 10M/100M/1G/2.5G/5G for Data in and PoE out
- IEEE 802.3af/at/bt compliant
- Force mode power supports up to 90W by DIP switch
- Power input 54~57 VDC, injects power up to 90W
- Provides slim size and DIN-rail with IP40 metal mechanism
- Supports operating temperatures from -40 ~ 75°C
Specifications
Model
EKI-2701MPI-5GPS-A Hardened 5G Gigabit Mega PoE Injector with AC adapter
Communications
Standard
IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt, 802.3ab/802.3bz
LAN
10/100/1000Base-T (X)/2.5G/5G
Transmission Distance
Ethernet: Up to 100 m (mid-span)
Transmission Speed
Up to 5 Gbps
Interface
Connectors
PoE OUT: RJ45
DATA IN: RJ45
LED Indicators
PoE, SYS
Power
Power Consumption
Max. 92 W (Full load PoE)
Power Input
54~57 VDC (Single input)
Power Output
90 W
Connectors
4P Pluggable Terminal Block, DC Jack
DIP Switch
PoE Force Mode: ON/OFF (default OFF)
Mechanism

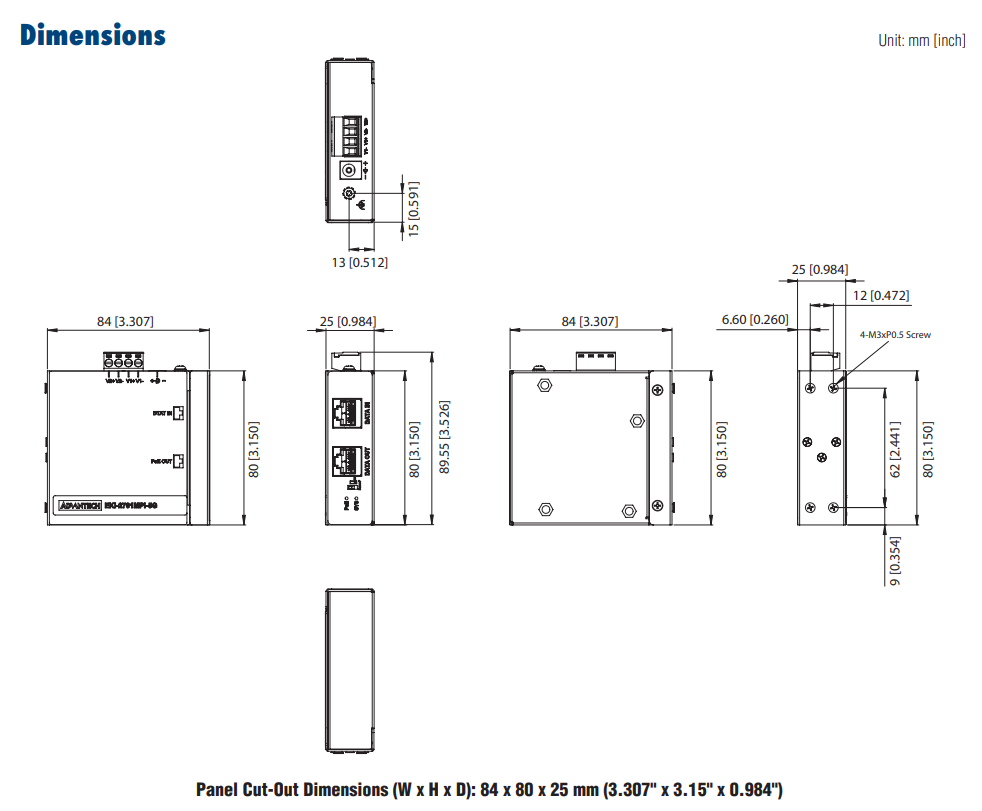

Dimensions (W x H x D)
84 x 80 x 25 mm (3.307" x 3.15" x 0.984")
Enclosure
IP40, Metal shell with solid mounting kits
Mounting
DIN-rail, Wall-mounted
Protection
Reverse
Present
Environment
Operating Temperature
EKI-2701MPI-5GPS-A: 0 ~ 40°C (32 ~ 104°F)
Storage Temperature
EKI-2701MPI-5GPS-A: -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity
10 ~ 95% (non-condensing)
Storage Humidity
10 ~ 95% (non-condensing)
Certification
EMI
CE, FCC
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Safety
UL62368
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
