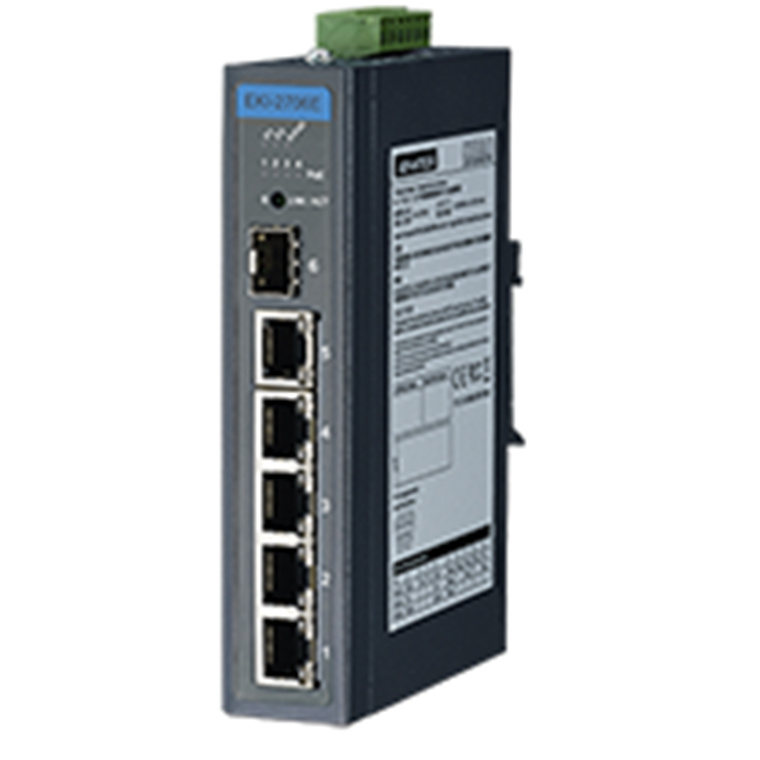

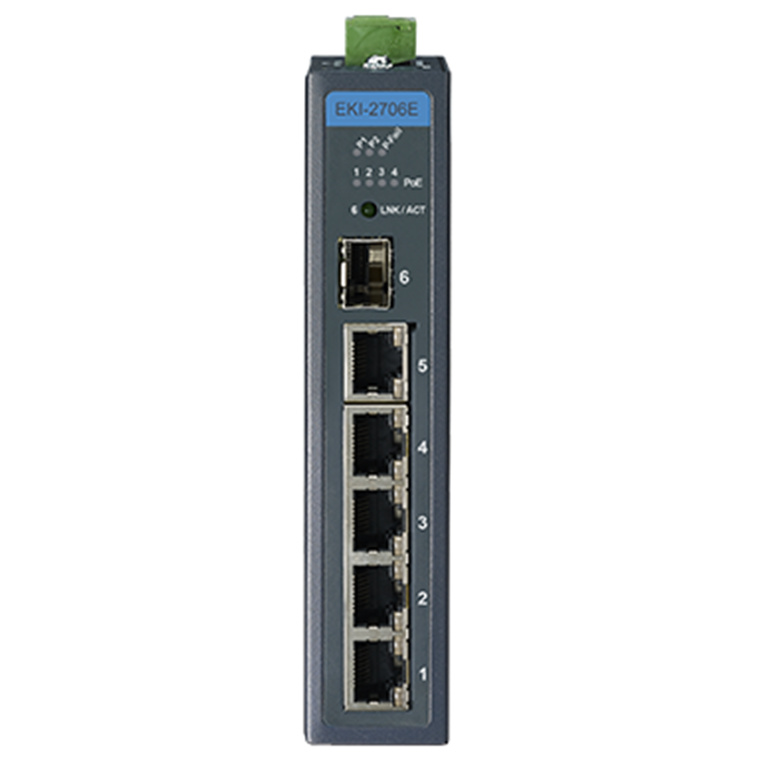

Advantech EKI-2706E-1GFPI-BE 4FE+1GE+1G SFP Unmanaged Ind. PoE Switch W/T
Out of stock
Advantech EKI-2706E-1GFPI-BE 4FE+1GE+1G SFP Unmanaged Ind. PoE Switch W/T
- Brand: Advantech
- MPN: EKI-2706E-1GFPI-BE
- Part #: IPCAVH220504
- UPC:
- Brand: Advantech
- MPN: EKI-2706E-1GFPI-BE
- Part #: IPCAVH220504
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2706E-1GFPI-BE 4FE+1GE+1G SFP Unmanaged Ind. PoE Switch W/T
- Brand: Advantech
- MPN: EKI-2706E-1GFPI-BE
- Part #: IPCAVH220504

Product URL: https://www.pbtech.co.nz/product/IPCAVH220504/Advantech-EKI-2706E-1GFPI-BE-4FE1GE1G-SFP-Unmanage
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
- Supports jumbo frame transmission up to 9 kbytes
- DIN-rail with IP30 metal mechanism
- Redundant 24~28 VDC power input
- 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports
Specifications
MPN
EKI-2706E-1GFPI-BE
Interface
Port Number
6
Ethernet Communication
RJ-45 Port Connector Type
5 x RJ-45 + 1 x SFP ports
RJ-45 Transmission Speed
10/100 Mbps ; 10/100/1000 Mbps
RJ-45 Transmission Distance
100 m
Fiber Transmission Distance
Up to 110 km
Power
Power Input (DC)
24 ~ 48 VDC
Power Operating Current
1A @ 24 VDC
Power Consumption
Max 2W
Power Connector Type
6-pin removable screw terminal (power & relay)
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
EMI
CE, FCC Class A
Safety
UL 60950-1
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
PoE Information
PoE Port Number
4
Switch Properties
MAC Table Size
2K
Packet Buffer Size
1M bit
Switch Fabric Speed
4.8Gbps
Jumbo Frame
9,216 bytes
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
IP Rating
IP30
Enclosure
Metal
Weight
0.45 kg (1.0 lb)
Mounting
DIN-rail, Wall
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Relative Humidity
10~95%
MTBF
Time
1,697,086 hours
Method
Telcordia(Relax), GB
