Features

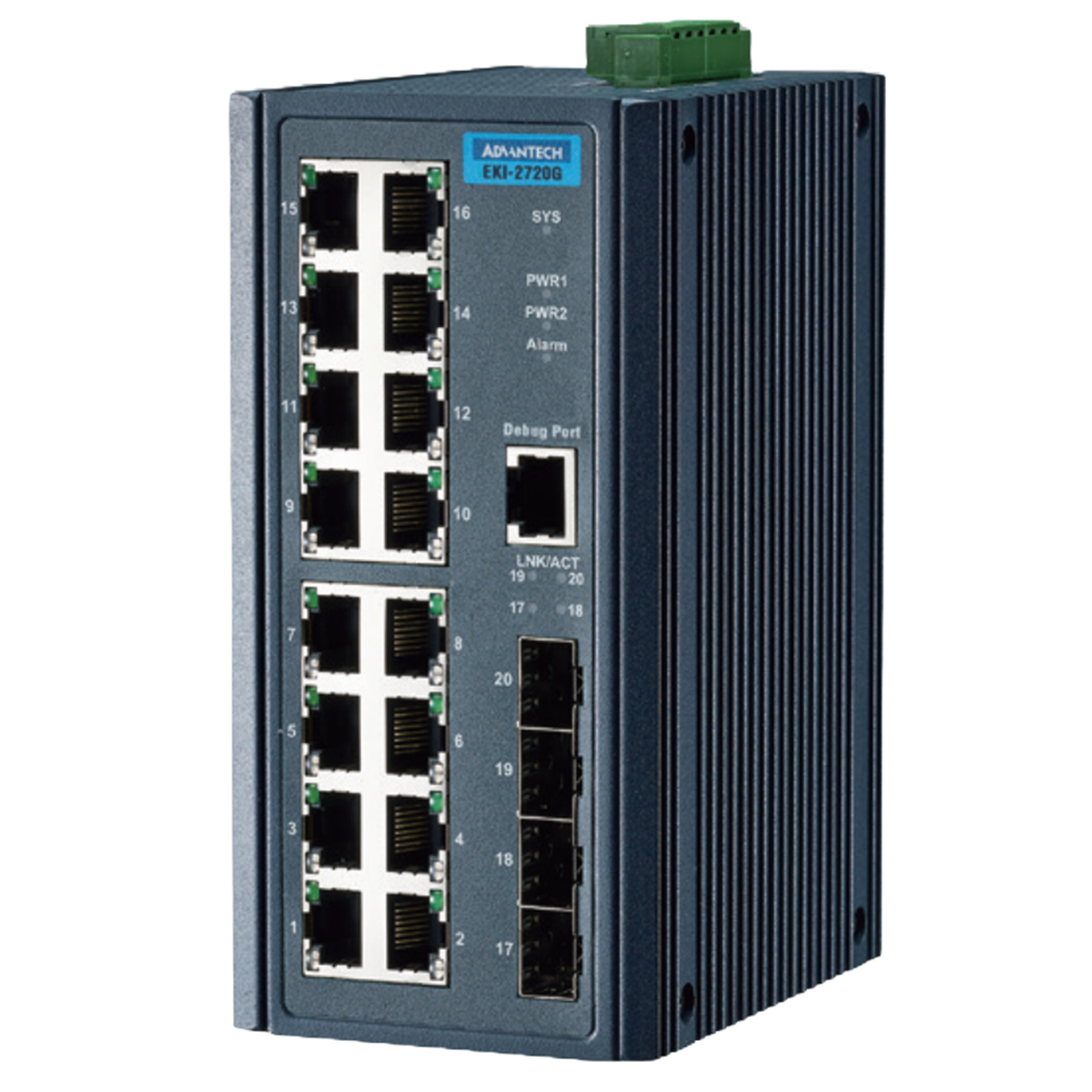

The EKI-2720G-4F provide users with abundant port options to connect to a range of different device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. The EKI-2720 series features a wide operating temperature and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment
- 16 x Gigabit Ethernet ports + 4 x SFP ports
- SFP socket for easy and flexible fiber expansion
- NEMA TS2 for traffic control
- EN50121-4 approval for railway trackside deployment
- Dual 12 ~ 48 VDC power input and 1 x relay output
Specifications
MPN
EKI-2720G-4FI-AE 16GE + 4SFP Port Unmanaged Ethernet Switch w/Wide Temp
Interface
I/O Port
16 x 10/100/1000BASE-T/TX RJ-45
4 x SFP (mini-GBIC) port
Debug Port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Physical
Enclosure
Metal Shell
Protection Class
IP 30
Installation
DIN-Rail

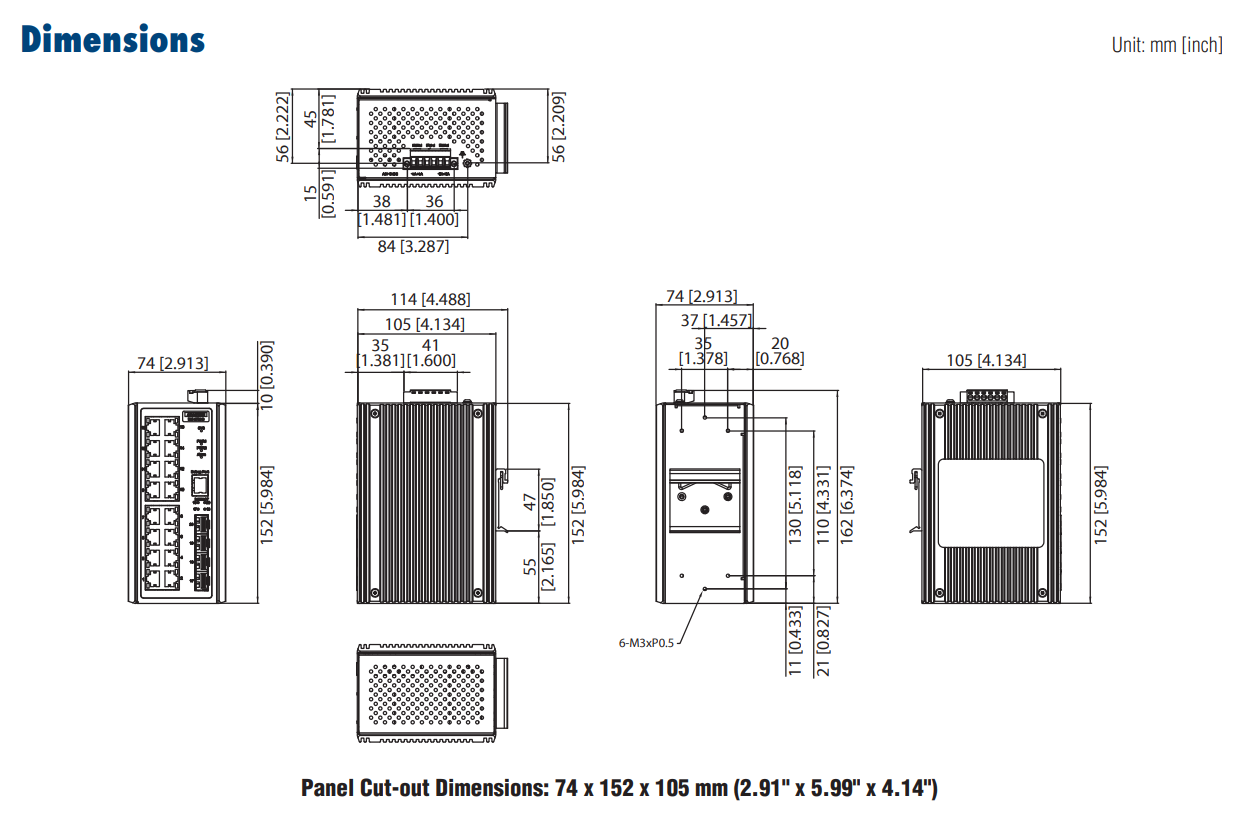

Dimensions (W x H x D)
74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
LED Display
System LED
PWR1, PWR2, SYS, Alarm
Port LED
Link / Speed / Activity
Environment
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Storage Temperature
-40 ~ 85°C
Ambient Relative Humidity
10 ~ 95% (non-condensing)
Humidity
10 ~ 95% (non-condensing)
Power
Power Consumption
15W
Power Input
12 ~ 48 VDC, redundant dual power input
Fault Output
1 Relay Output
Certification
EMI
CE, FCC Class A
Safety
UL61010-2-201
IEC60950*
*= Compliant
EMC
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN50121-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Traffic control
NEMA TS2
