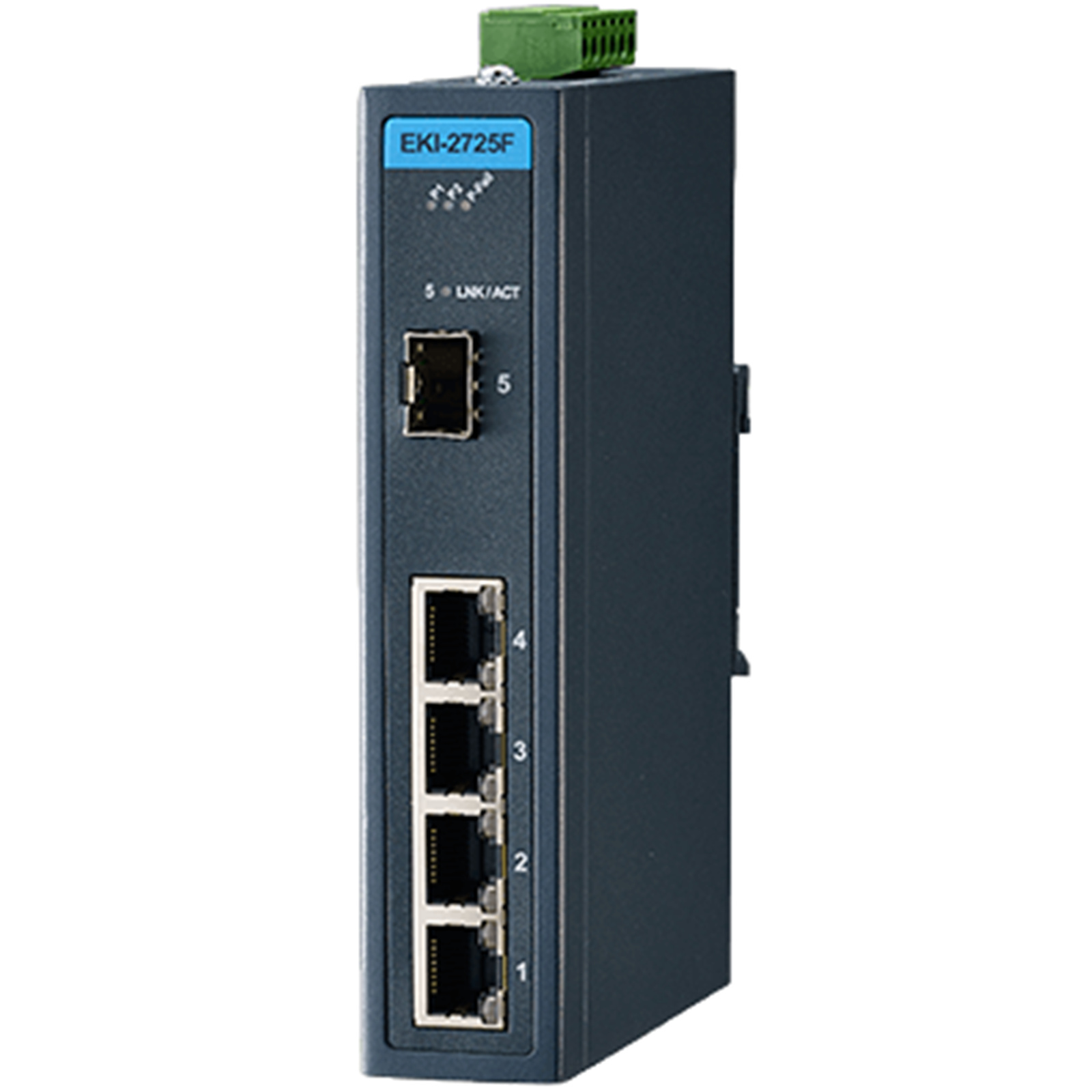

Advantech EKI-2725F-AE 4+1G port Full Gigabit Unmanaged Ethernet Switch
Out of stock
Advantech EKI-2725F-AE 4+1G port Full Gigabit Unmanaged Ethernet Switch
- Brand: Advantech
- MPN: EKI-2725F-AE
- Part #: IPCAVH220510
- UPC:
- Brand: Advantech
- MPN: EKI-2725F-AE
- Part #: IPCAVH220510
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2725F-AE 4+1G port Full Gigabit Unmanaged Ethernet Switch
- Brand: Advantech
- MPN: EKI-2725F-AE
- Part #: IPCAVH220510

Product URL: https://www.pbtech.co.nz/product/IPCAVH220510/Advantech-EKI-2725F-AE-41G-port-Full-Gigabit-Unman
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The EKI-2725F supports Gigabit Ethernet. The power rating is +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725F has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal housing rated at IP30 to protect against dusty industrial environments.
- Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
- Supports 10/100/1000 Mbps auto negotiation
- Supports jumbo frame transmission up to 9kb
- Provides slim size, DIN-rail with IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Provides broadcast storm protection
Specifications
Communications
Standard
IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
LAN
4 x 10/100/1000Mbps(RJ-45)+ 1 x 100/1000Mbps(SFP)
Transmission Distance
Ethernet: Up to 100 m (4-wire Cat.5e, Cat.6 RJ45 cable)
SFP: Up to 110 km (depends on SFP)
Transmission Speed
Up to 1000 Mbps
Interface
Connectors
4 x RJ45 + 1 x SFP
6-pin removable screw terminal (power & relay)
LED Indicators
P1, P2, P-Fail
10/100/1000T (X): Link/Activity, Duplex/Collision
SFP: LNK/ACT
Power
Power Consumption
2.5W
Power Input
12 ~ 48 VDC, redundant dual inputs
Fault Output
1 Relay Output
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Enclosure
IP30, metal shell with solid mounting kits
Mounting
DIN-rail, wall
Protection
Power Reverse
Present
Overload current
Present
Environment
Operating Temperature
-10 ~ 60 °C (14 ~ 140 °F)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
10 ~ 95% (non-condensing)
Storage Humidity
10 ~ 95% (non-condensing)
MTBF
1,868,330 hours
Certifications
Safety
UL 62368
EMI
CE, FCC Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
