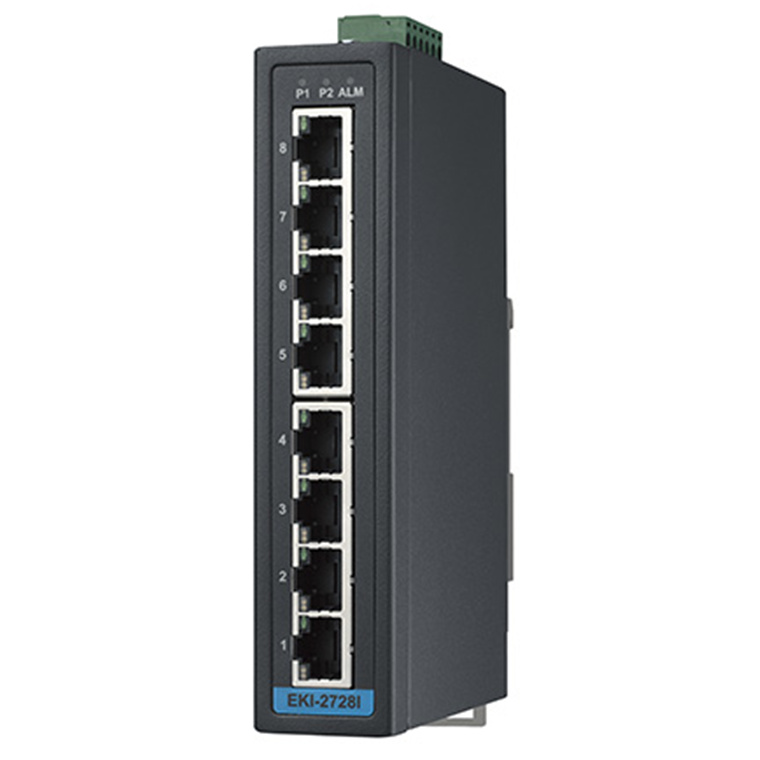

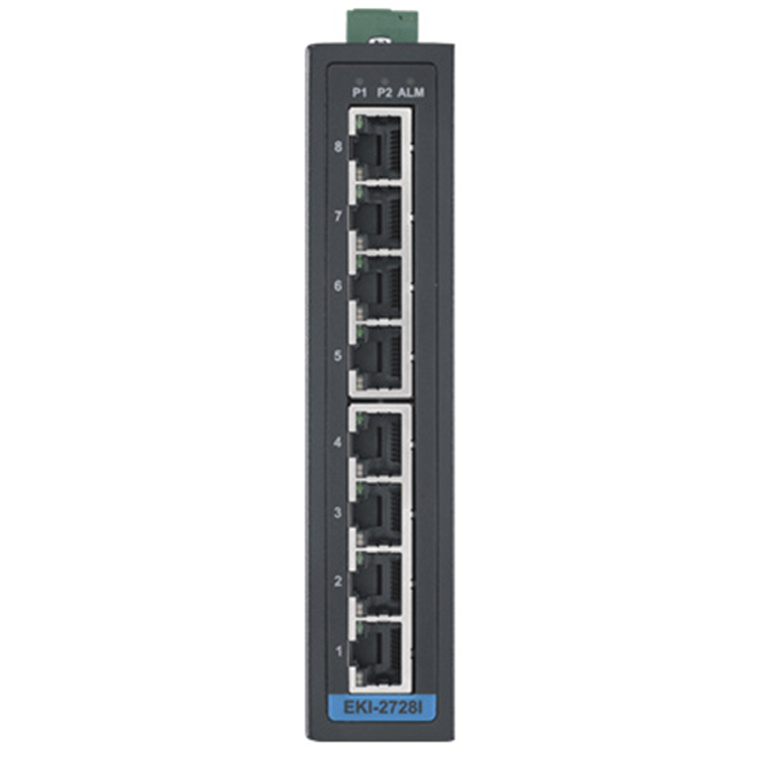

Advantech EKI-2728-D 8-port Ind. Unmanaged GbE Switch
Out of stock
Advantech EKI-2728-D 8-port Ind. Unmanaged GbE Switch
- Brand: Advantech
- MPN: EKI-2728-D
- Part #: IPCAVH220513
- UPC:
- Brand: Advantech
- MPN: EKI-2728-D
- Part #: IPCAVH220513
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2728-D 8-port Ind. Unmanaged GbE Switch
- Brand: Advantech
- MPN: EKI-2728-D
- Part #: IPCAVH220513

Product URL: https://www.pbtech.co.nz/product/IPCAVH220513/Advantech-EKI-2728-D-8-port-Ind-Unmanaged-GbE-Swit
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Provides 8 Gigabit Ethernet ports with Auto MDI/MDI-X
- Supports 10/100/1000Mbps Auto Negotiation
- Supports jumbo frame transmission up to 9kbytes
- Provides Slim size, DIN-rail with IP30 metal mechanism
- Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
Specifications
MPN
EKI-2728-D
Certification
EMI
CE, FCC Class A
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
UL 62368
Environment
Temperature (Min. Operating)
-10°C (14°F)
Temperature (Max. Operating)
60°C (140°F)
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
-
Fiber Port Interface
-
Fiber Port Connector Type
-
Fiber Transmission Distance
-
Fiber Transmission Speed
-
RJ-45 Port Number
8
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
-
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Enclosure (Plastic)
-
IP Rating
IP30
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
6-pin removable screw terminal
Power Consumption
Max. 3.9W
Power Input (AC)
-
Power Input (DC)
12 ~ 48 VDC12 ~ 48 VDC
Power Input (PoE)
-
Power Input (Battery)
-
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Reverse Polarity
Present
