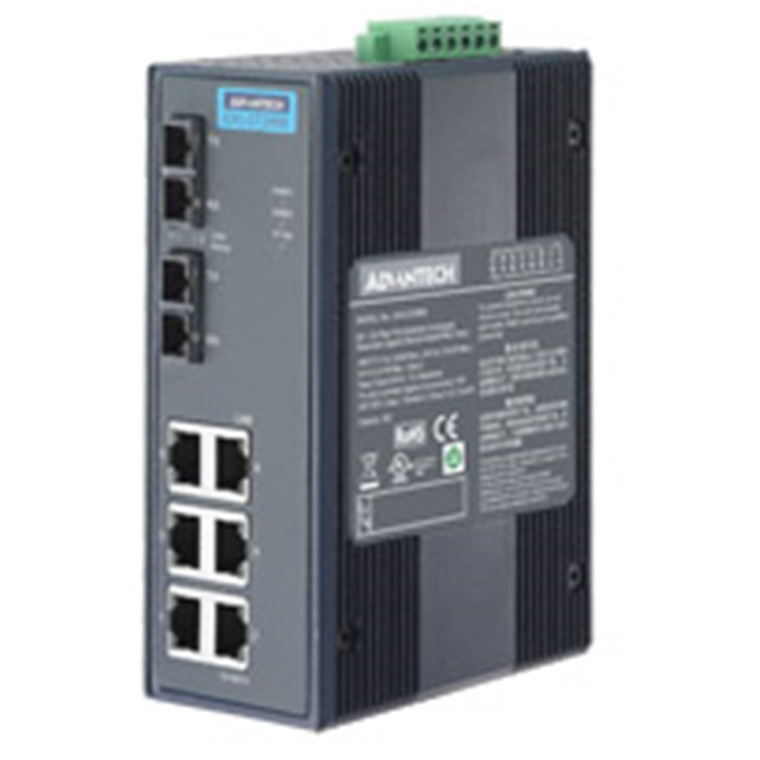

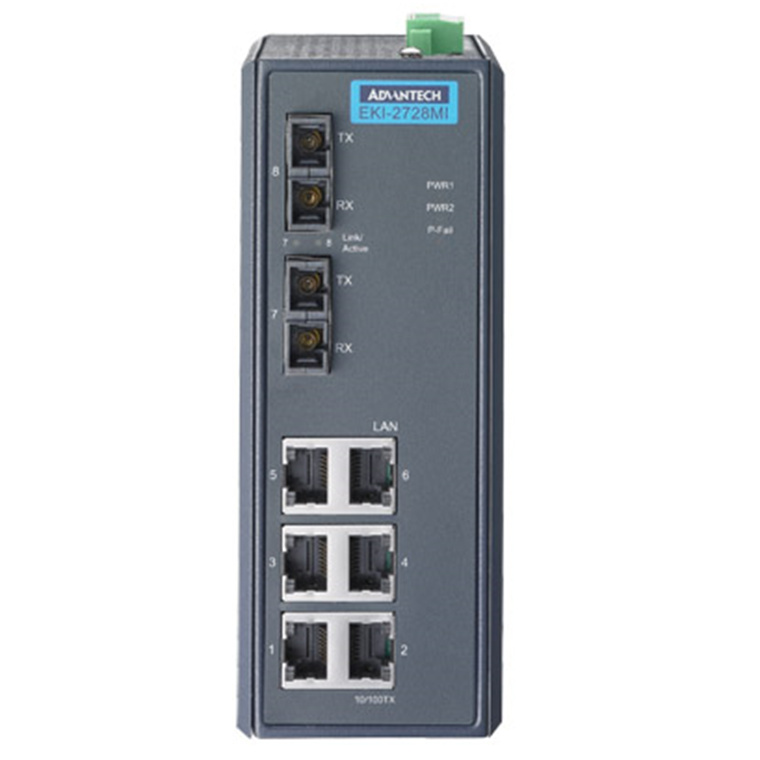

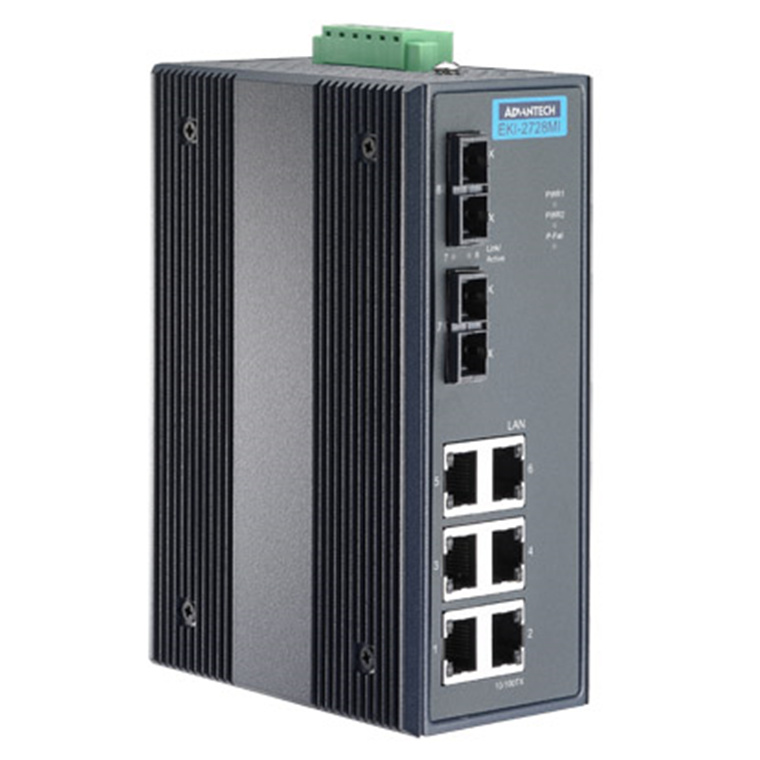

Advantech EKI-2728MI-BE 6+2G SC Multi-mode Full Gigabit Unmanaged Ethernet Switch, -40-75°C
Out of stock
Advantech EKI-2728MI-BE 6+2G SC Multi-mode Full Gigabit Unmanaged Ethernet Switch, -40-75°C
- Brand: Advantech
- MPN: EKI-2728MI-BE
- Part #: IPCAVH220516
- UPC:
- Brand: Advantech
- MPN: EKI-2728MI-BE
- Part #: IPCAVH220516
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-2728MI-BE 6+2G SC Multi-mode Full Gigabit Unmanaged Ethernet Switch, -40-75°C
- Brand: Advantech
- MPN: EKI-2728MI-BE
- Part #: IPCAVH220516

Product URL: https://www.pbtech.co.nz/product/IPCAVH220516/Advantech-EKI-2728MI-BE-62G-SC-Multi-mode-Full-Gig
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- 6 Gigabit Ethernet ports with auto negotiation and 2 Gigabit fiber optic ports
- Supports jumbo frame transmission up to 9k bytes
- Provides slim size, DIN-rail with IP30 metal mechanism
- Supports 5.49% power consumption
- Redundant DC power supply and one removable AC power input
Specifications
MPN
EKI-2728MI-BE
Certification
EMI
CE, FCC Class A
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
-
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Temperature (Max. Operating)
75°C (167°F)
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
2
Fiber Port Interface
Multi-Mode
Fiber Port Connector Type
SC Type
Fiber Transmission Distance
Up to 550 m
Fiber Transmission Speed
1000 Mbps
RJ-45 Port Number
6
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
-
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Dimensions (W x H x D)
59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.)
Enclosure (Plastic)
-
IP Rating
IP30
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Consumption
Max. 7W
Power Input (AC)
24 VAC
Power Input (DC)
12 ~ 48 VDC
Power Input (PoE)
-
Power Input (Battery)
-
Power Operating Current
1A @ 24 VDC
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Reverse Polarity
Present
