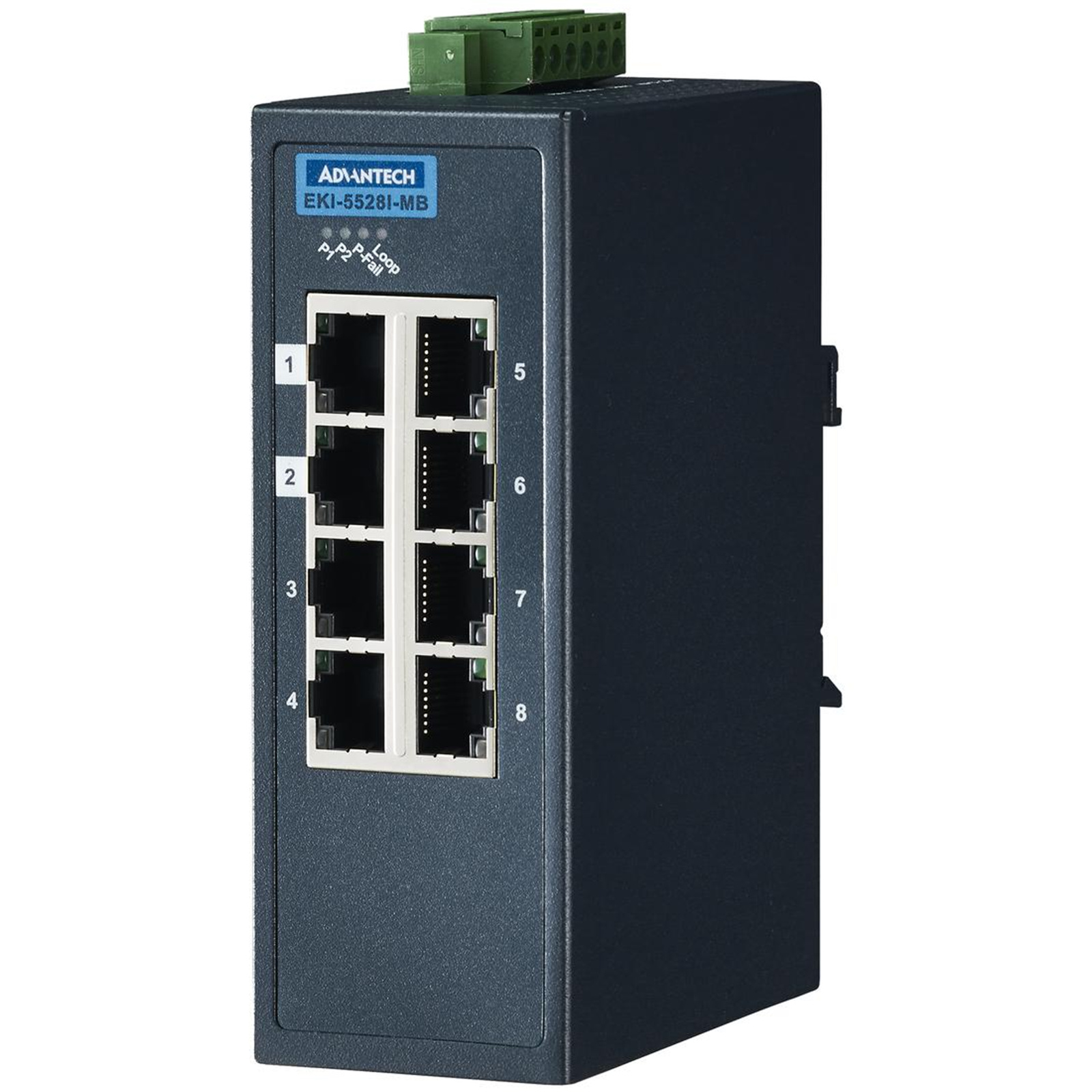

Advantech EKI-5528I-MB-AE 8 10/100Mbps Lite Managed Ethernet Switch support Modbus/TCP,-40 75
Out of stock
Advantech EKI-5528I-MB-AE 8 10/100Mbps Lite Managed Ethernet Switch support Modbus/TCP,-40 75
- Brand: Advantech
- MPN: EKI-5528I-MB-AE
- Part #: IPCAVH220547
- UPC:
- Brand: Advantech
- MPN: EKI-5528I-MB-AE
- Part #: IPCAVH220547
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-5528I-MB-AE 8 10/100Mbps Lite Managed Ethernet Switch support Modbus/TCP,-40 75
- Brand: Advantech
- MPN: EKI-5528I-MB-AE
- Part #: IPCAVH220547

Product URL: https://www.pbtech.co.nz/product/IPCAVH220547/Advantech-EKI-5528I-MB-AE-8-10100Mbps-Lite-Managed
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
8FE Managed Ethernet Switch support Modbus/TCP,-40~75?
- 8 ports Fast Ethernet RJ-45 (EKI-5528/I-MB)
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
Specifications
Certification
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
EMI
CE, FCC Class A
EMS
-
Ethernet Standard
IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
Freefall
IEC 60068-2-32
Safety
UL 508
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Environment
Relative Humidity
10~95%
Temperature (Max. Operating)
75°C (167°F)
Temperature (Min. Operating)
-40°C (-40°F)
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Connector Type
-
Fiber Port Interface
-
Fiber Port Number
-
Fiber Transmission Speed
-
Fiber Transmission Distance
-
RJ-45 Port Connector Type
RJ-45
RJ-45 Port Number
8
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100 Mbps
RJ-45/SFP Combo Port Number
-
RJ-45/SFP Combo Port Speed
-
Protocol Support
Modbus TCP
-
Modbus RTU
Yes
PROFINET
-
EtherNet/IP
-
EtherCAT
-
OPC UA
-
BACnet
-
Ethernet
Yes
Mechanism
Dimensions (W x H x D)
43 x 120 x 84 mm
Enclosure (Plastic)
-
IP Rating
IP30
Mounting (DIN-rail)
Yes
Mounting (Panel)
-
Mounting (Pole Mount)
-
Mounting (Rack Mount)
-
Mounting (Stack)
-
Mounting (Wall)
Yes
Weight
0.50 kg (1.1 lbs)
MTBF
Method
Telcordia(Relax), GB
Time
4,176,861 hours
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Consumption
5.2W (system)
Power Input (AC)
-
Power Input (Battery)
-
Power Input (DC)
12 ~ 48 VDC
Power Input (PoE)
-
Power Operating Current
0.1A @ 48VDC (system)
Redundant Dual Inputs
-
Protection
Reverse Polarity
Present
Overload Current
-
Switch Properties
Jumbo Frame
9,216 bytes
MAC Table Size
8K
Packet Buffer Size
4.1M bit
Switch Fabric Speed
1.6Gbps
