Advantech EKI-5629CI-AE 8+2G port Gigabit Unmanaged Ethernet Switch, ATEX/C1D2, -40 75

PB Tech price
PB Tech price
$ 665 .26
 +GST
$ 765 .05
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-5629CI-AE 8+2G port Gigabit Unmanaged Ethernet Switch, ATEX/C1D2, -40 75

  • Brand: Advantech
  • MPN: EKI-5629CI-AE
  • Part #: IPCAVH220551
  • UPC:
PB Tech price
$ 665 .26 $ 765 .05
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

The EKI-5629CI is the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5629CI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40 ~ 75°C operating temperature range
- EMS level 3 protection for extreme outdoor environments
- 12 ~ 48 VDC (8.4 ~ 52.8 VDC) wide-range power input
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Jumbo Frame Support (Up to 9,216 Bytes)
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Loop detection



Specifications

MPN

EKI-5629CI-AE
8FE + 2GE Combo Ethernet ProView Switch with Wide Temperature

Communications

Standard

IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az , 802.3ab

LAN

10/100/1000Base-T(X), Optional 100Base-FX, 1000Base-SX/LX/LHX/XD/ZX/EZX

Transmission Distance

Ethernet: UP to 100m (4-wire Cat.5e, Cat.6 RJ-45 cable suggested for Gigabit port)
SFP: UP to 110km (depends on SFP)

Transmission Speed

Ethernet: 10/100Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000Mbps, Auto-Negotiation
Gigabit Fiber: UP to 1000Mbps

Interface

Connectors

EKI-5629CI: 8 x Fast Ethernet (RJ45) + 2 x Giga (RJ45/SFP) combo ports
6-pin removable screw terminal (power & relay)

LED Indicators

P1, P2, P-Fail, Loop detection
10/100T(X): Link/Activity, Speed
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Lin k/Activity

Switch Properties

MAC Table Size

8K

Packet Buffer Size

4.1M bit

Switch Capacity

EKI-5629CI: 5.6 Gbps

Jumbo Frame

9216 bytes

Power

Power Consumption

EKI-5629CI: 5.8W

Power Input

12 ~ 48 VDC (8.4 ~ 52.8 VDC), redundant dual inputs

Fault Output

1 Relay Output

Mechanism

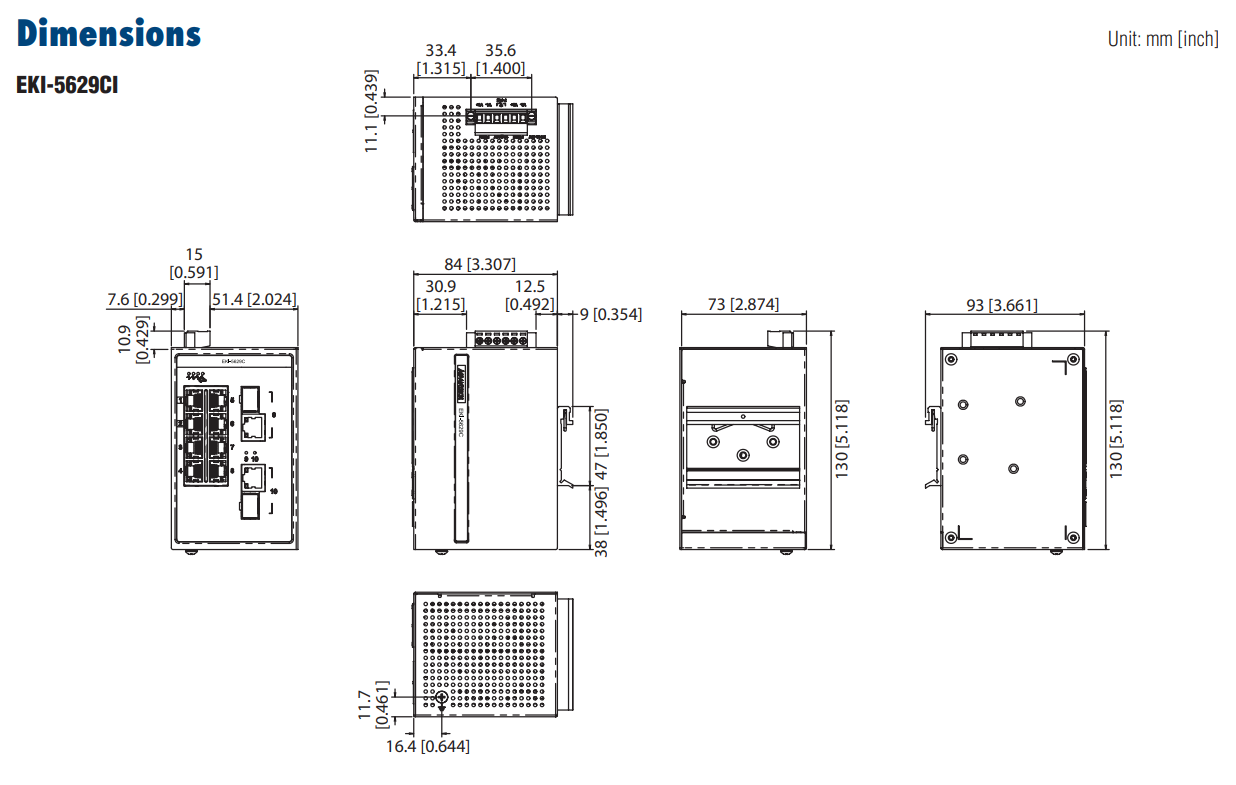

Dimensions (W x H x D)

74 x 120 x 84 mm

Enclosure

IP30, metal shell with solid mounting kits

Mounting

DIN-Rail, Wall

Protection

Reverse Polarity

Present

Overload Current

Present

Environment

Operating Temperature

-40 ~ 75°C (-40 ~ 167°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Operating Humidity

10 ~ 95% (non-condensing)

Storage Humidity

10 ~ 95% (non-condensing)

MTBF

EKI-5629CI: 3,183,604 hours

Certification

Safety

UL508, Class 1 Division 2, ATEX

EMI

CE/FCC

EMS

EN 61000-4-2 (Level 3)
EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 3)
EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3)
EN 61000-4-8 (Level 3)

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Manufacturer Part No:
EKI-5629CI-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220551
Product Model:
EKI-5629CI-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
