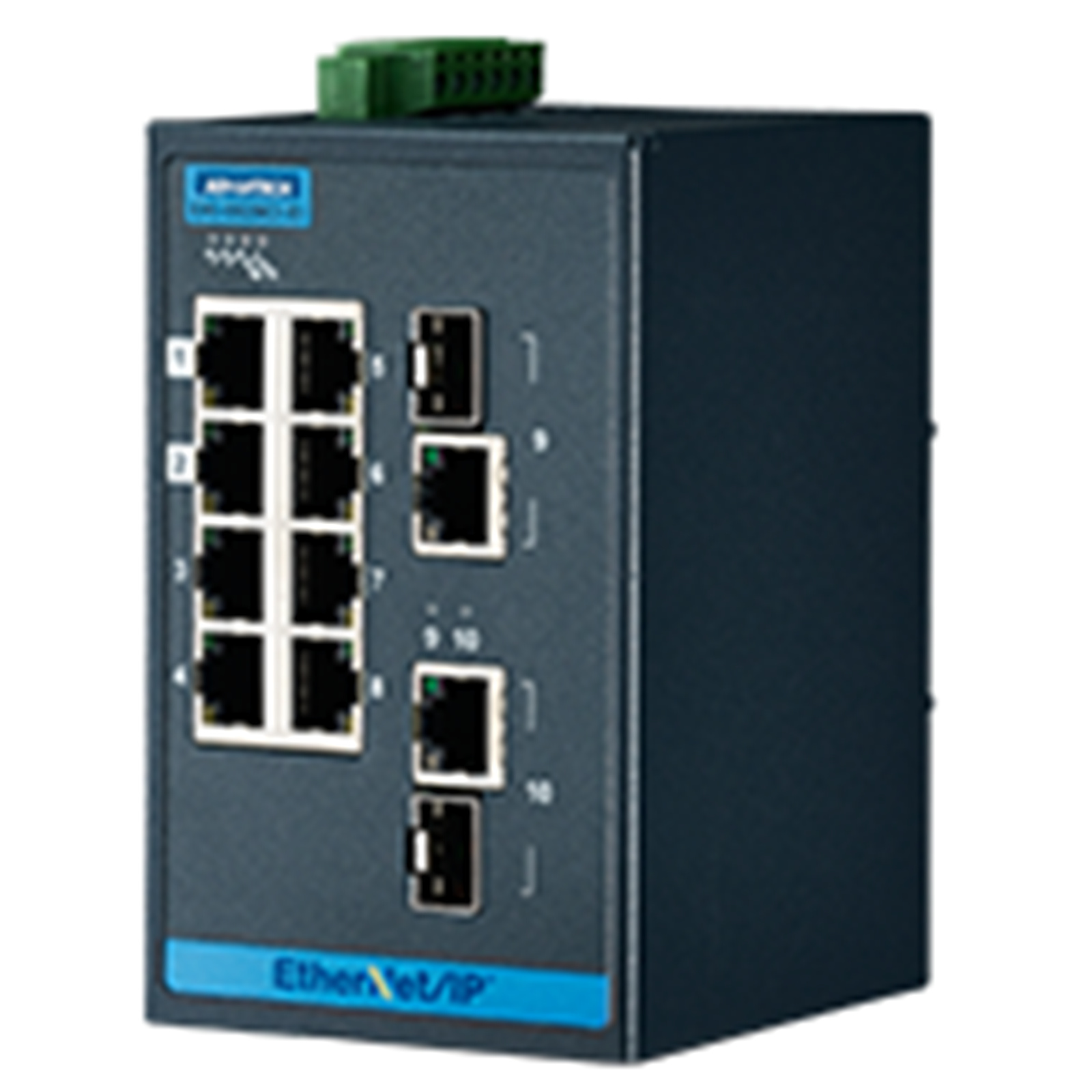

Advantech EKI-5629CI-EI-AE 8+2G Lite Managed Ethernet Switch support EtherNet/IP, -40 75
Out of stock
Advantech EKI-5629CI-EI-AE 8+2G Lite Managed Ethernet Switch support EtherNet/IP, -40 75
- Brand: Advantech
- MPN: EKI-5629CI-EI-AE
- Part #: IPCAVH220552
- UPC:
- Brand: Advantech
- MPN: EKI-5629CI-EI-AE
- Part #: IPCAVH220552
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-5629CI-EI-AE 8+2G Lite Managed Ethernet Switch support EtherNet/IP, -40 75
- Brand: Advantech
- MPN: EKI-5629CI-EI-AE
- Part #: IPCAVH220552

Product URL: https://www.pbtech.co.nz/product/IPCAVH220552/Advantech-EKI-5629CI-EI-AE-82G-Lite-Managed-Ethern
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Advantech's Entry Level Managed Switches Series are the best deal offer for your Ethernet connections. Advantech's Entry Level Managed Switches Series support the most useful management functions, such as IEEE 802.1Q VLAN, port mirroring, Redundancy, Storm Control, IP Multicast, and provide SNMP v1/v2c, WEB GUI, Standard MIB, Private MIB for access. Advantech's Entry Level Managed Switches Series are also easy and fast deployment from Advantech IXM technology and is compatible with EKI-7700 managed switch series. Advantech's Entry Level Managed Switches Series allow users to expand their industrial network quickly and efficiently, while their rugged industrial-grade design assures reliability and stability.
- 8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports Entry-Level
- Managed Switch
- Provides wide operating voltage 8.4~52.8 VDC
- C1D2 and ATEX certified for horizontal area
- IXM function enables fast deployment
- PROFINET or EtherNet/IP or Modbus/TCP Enabled by default
- Supports X-Ring for ultra high-speed recovery time less than 20ms
Specifications
MPN
EKI-5629CI-EI-AE
8FE + 2G Combo ports entry-level managed switch support EtherNet/IP w/wide temp.
Communications
Standard
IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 02.1p, 802.1Q, 802.1X,802.3AD,802.3az
LAN
10/100Base-T (X), 10/100/1000Base-T(X)
Transmission Distance
Ethernet: Up to 100 m
Transmission Speed
Ethernet 10/100 Mbps Auto-Negotiation
Interface
I/O Port
8 x RJ-45 + 2 x RJ-45/SFP combo ports
Power Connector
6-pin screw Terminal Block (including relay)
LED Indicators
System LED
PWR1, PWR2, P-Fail, Loop detection
Port LED
Link / Speed / Activity
Switch Properties
MAC Table Size
8K
Packet Buffer Size
TBD
Switch Capacity
5.6Gbps
Jumbo Frame
9216 Bytes
Physical
Enclosure
Metal Shell
Protection Class
IP 30
Installation
DIN-Rail

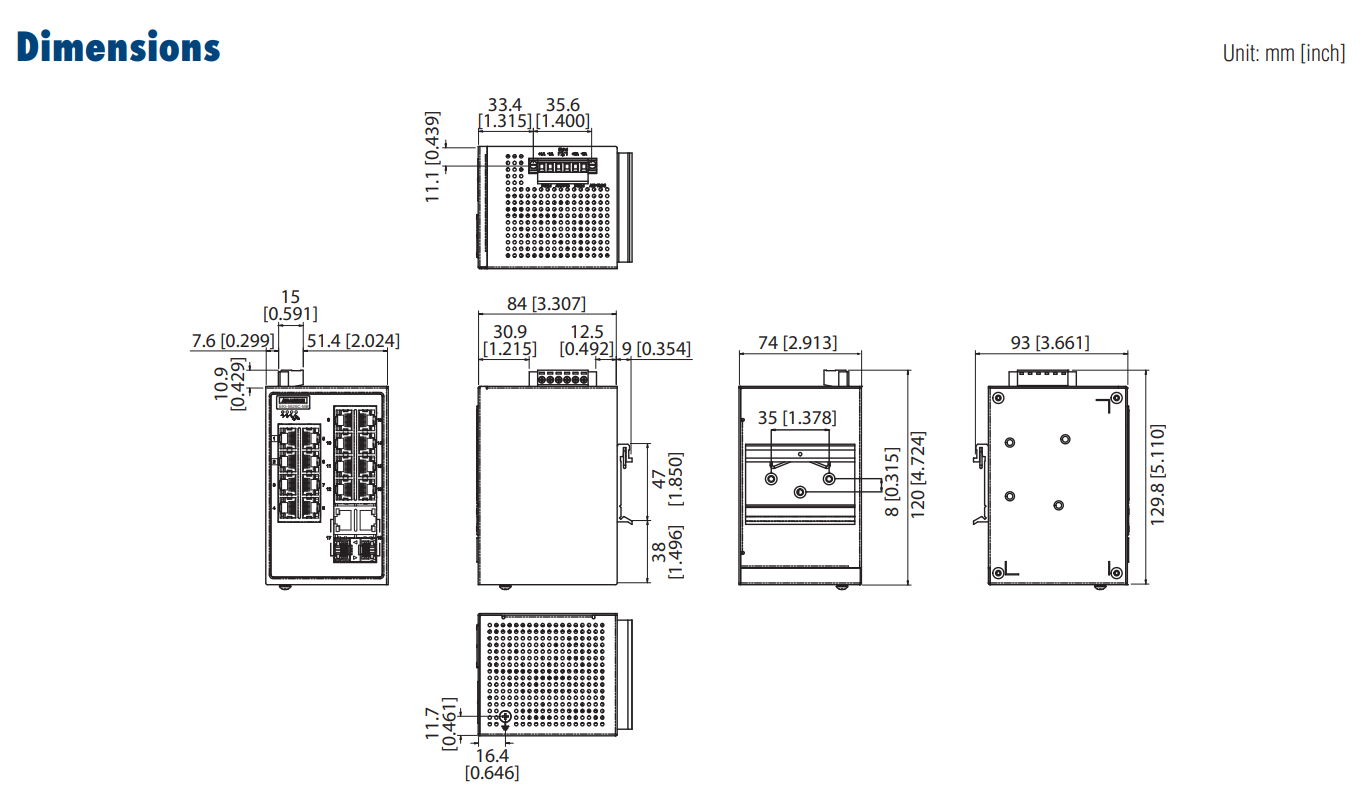

Dimensions (W x H x D)
74 x 120 x 84 mm
Weight
0.8kg
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C
Humidity
10 ~ 95% (non-condensing)
MTBF
3,183,604 hours
Power
Power Consumption
5.8W
Power Input
12 ~ 48 VDC, redundant dual power input
Operating Voltage
8.4~52.8VDC
Overload Current Protection
Present
Revise Polarity Protection
Present
Certification
EMI
CE, FCC Class A
Safety
UL508
EMC
EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Hazardous Location
Class 1 Division 2, ATEX
L2 Features
VLAN Group
256 (VLAN ID 1 ~ 4094)
VLAN Arrange
Tag based VLAN, GVRP
Port Mirroring
Per port, Multi-source port,
IP Multicast
IGMP Snooping v1/v2/v3, MLD
Snooping, IGMP Immediate leave
Storm Control
Broadcast, Multicast, Unknown unicast
Redundancy
IEEE 802.1D-STP, IEEE 802.1w-RSTP, X Ring Elite, with ultra high-speed recov ery time less than 20ms
QoS
Priority Queue Scheduling
WRR (Weighted Round Robin),
SP (Strict Scheduling Priority) Hybrid Priority
Class of Service
IEEE 802.1p Based CoS, IP TOS, DSCP based CoS
Rate Limiting
Ingress Rate limit, Egress Rate limit
Link Aggregation
IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking
Security
Port Security
Static, Dynamic, MAC address filtering
Authentication
802.1x (Port-Based, MD5/PEAP Encryption)
Management
DHCP
Client, Option 82
Access
SNMP v1/v2c, WEB, Standard MIB, Private MIB
Software upgrade
TFTP, HTTP, Dual Image
NTP
SNTP client
Data
Syslog
Protocols
IPV6, LLDP,
EtherNet/IP (EKI-5629CI-EI)
