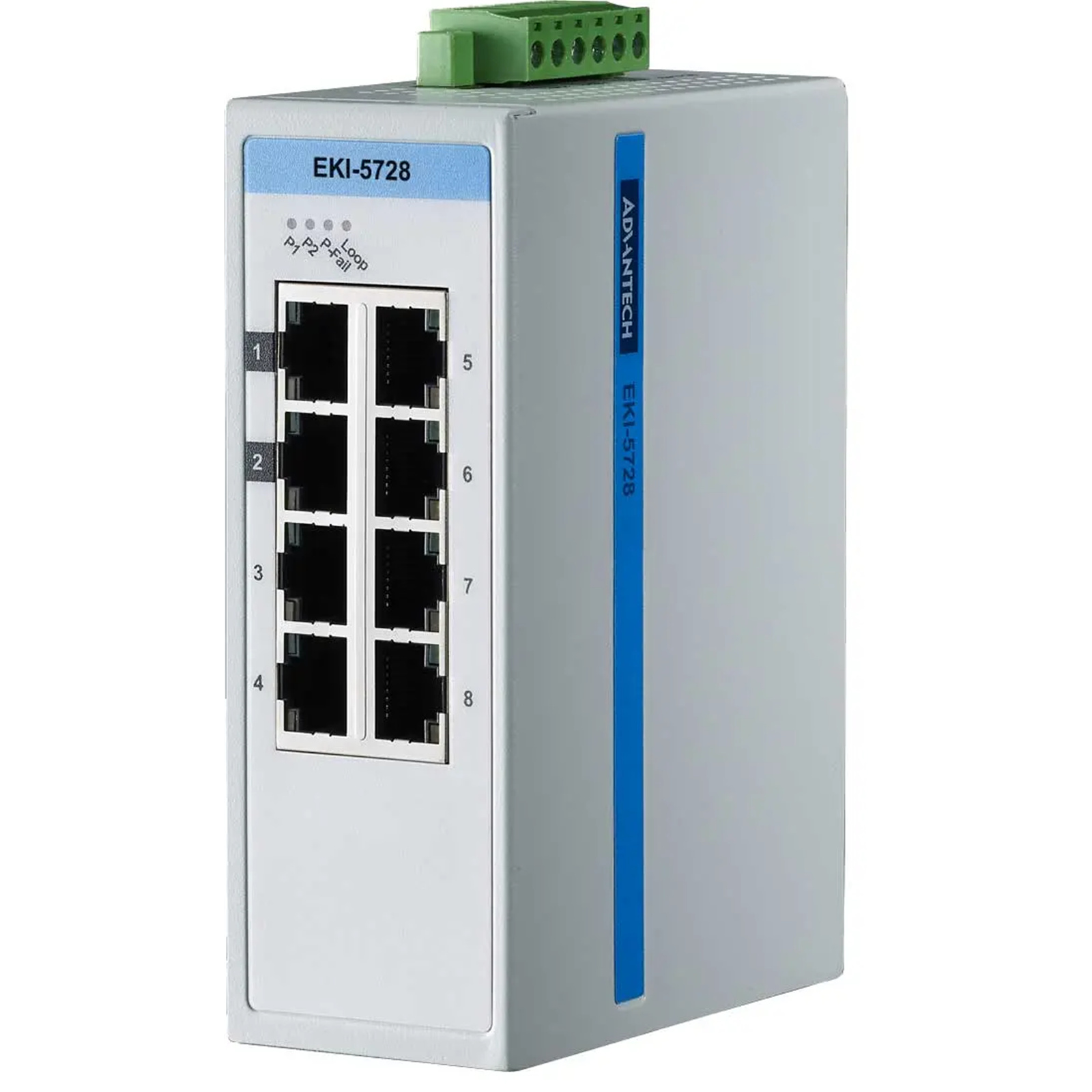

Advantech EKI-5728I-AE 8 port Full Gigabit Unmanaged Ethernet Switch, ATEX/C1D2, -40 75
Out of stock
Advantech EKI-5728I-AE 8 port Full Gigabit Unmanaged Ethernet Switch, ATEX/C1D2, -40 75
- Brand: Advantech
- MPN: EKI-5728I-AE
- Part #: IPCAVH220557
- UPC:
- Brand: Advantech
- MPN: EKI-5728I-AE
- Part #: IPCAVH220557
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-5728I-AE 8 port Full Gigabit Unmanaged Ethernet Switch, ATEX/C1D2, -40 75
- Brand: Advantech
- MPN: EKI-5728I-AE
- Part #: IPCAVH220557

Product URL: https://www.pbtech.co.nz/product/IPCAVH220557/Advantech-EKI-5728I-AE-8-port-Full-Gigabit-Unmanag
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
8GE Unmanaged Ethernet Switch, ATEX/C1D2, -40~75?
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40~75°C operating temperature range
- 8.4~52.8 V DC wide-range power input
- EMS level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports redundant 12~48V DC power input and P-Fail relay
- Loop detection
Specifications
Certification
EMI
CE, FCC
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
UL508, Class 1 Division 2, ATEX
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Temperature (Max. Operating)
75°C (167°F)
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
-
Fiber Port Interface
-
Fiber Port Connector Type
-
Fiber Transmission Distance
-
Fiber Transmission Speed
-
RJ-45 Port Number
8
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
-
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Dimensions (W x H x D)
43 x 120 x 93 mm
Enclosure (Plastic)
-
IP Rating
IP30
Weight
0.50 kg (1.1 lbs)
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Consumption
Max.4.72W
Power Input (DC)
8.4 ~ 52.8 VDC
Power Operating Current
0.23A @ 24V
Switch Properties
Jumbo Frame
9,216 bytes
MAC Table Size
8K
Packet Buffer Size
4.1M bit
Switch Fabric Speed
16Gbps
Protection
Overload Current
Present
Reverse Polarity
Present
