Advantech EKI-7428G-4CA-AE 28 port 19" Full Gigabit Managed Ethernet Switch with 4G combo port

PB Tech price
PB Tech price
$ 1,569 .44
 +GST
$ 1,804 .86
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-7428G-4CA-AE 28 port 19" Full Gigabit Managed Ethernet Switch with 4G combo port

  • Brand: Advantech
  • MPN: EKI-7428G-4CA-AE
  • Part #: IPCAVH220568
  • UPC:
PB Tech price
$ 1,569 .44 $ 1,804 .86
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

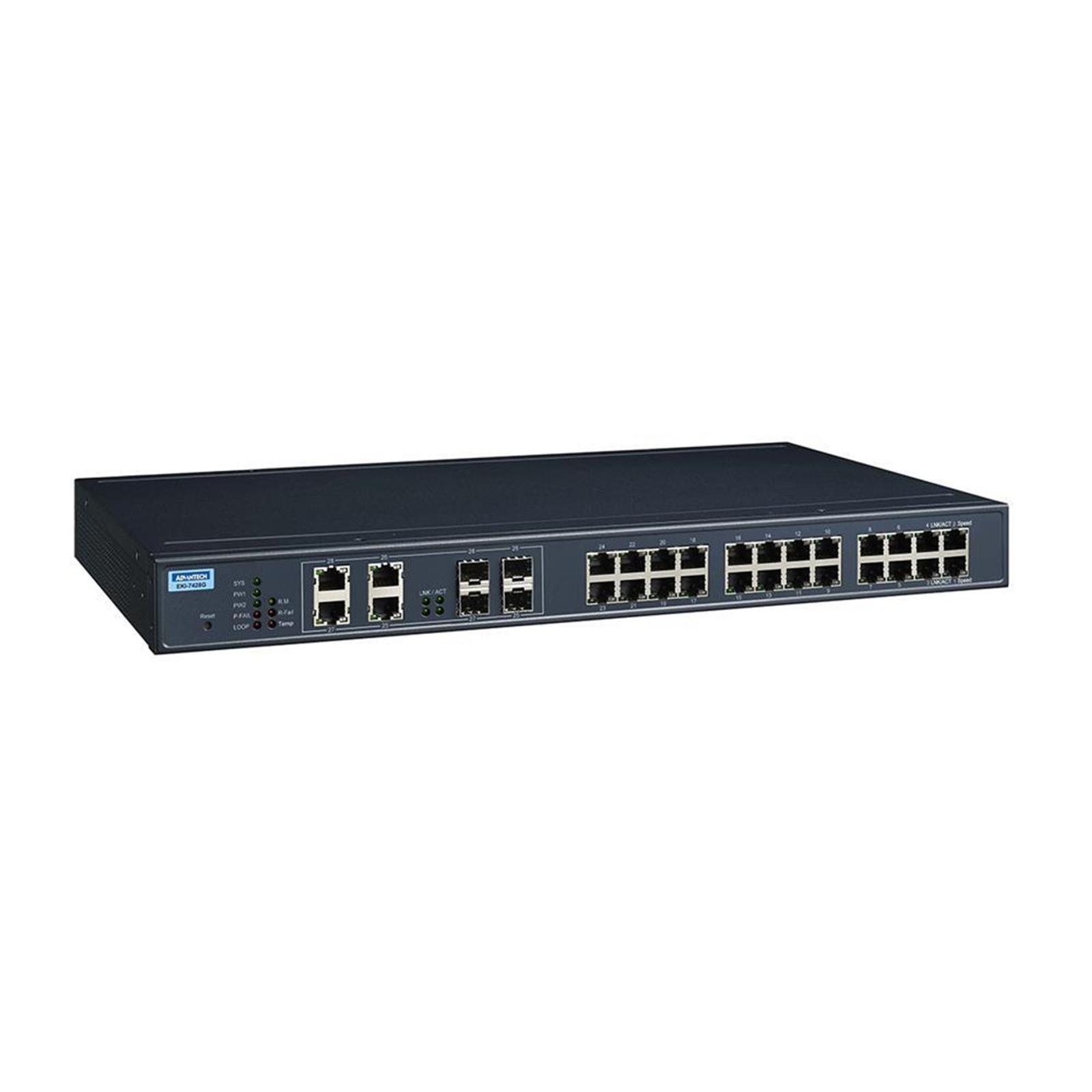

24G+4G Combo Port L2 Managed Switch

- 24 x Gigabit ports + 4 x Gigabit Copper/SFP combo ports
- SFP socket for easy and flexible fiber expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
- Support Security Pack against internal and external Cyber threats

Specifications

Certification

Ethernet Standard

IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az

Vibration

-

Freefall

-

Shock

-

EMS

-

EMI

-

EMC

FCC Part 15,Subpart B:ANSI C63.4-2014 CE EN55032: 2010+AC:2011 EN55024: 2010+A1:2015

Safety

LVD IEC/EN 62368-1

Environment

Temperature (Max. Operating)

60°C (140°F)

Temperature (Min. Operating)

0°C (32°F)

Relative Humidity

-

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Operating Humidity

5~90%

Storage Temperature

-40 ~ 70°C (-40 ~ 158°F)

Ethernet Communication

RJ-45/SFP Combo Port Speed

-

RJ-45/SFP Combo Port Number

-

Fiber Port Optical Mode

-

Fiber Transmission Speed

10/100/1000 Mbps

Fiber Port Number

4

RJ-45 Port Number

28

Fiber Transmission Distance

Up to 110 km

Fiber Port Connector Type

SFP cage

Fiber Port Interface

SFP

RJ-45 Transmission Distance

100 m

Ethernet Standard

IEEE 802.1p , 802.1s , 802.1w , 802.1x , 802.3ad

RJ-45 Port Connector Type

RJ-45

RJ-45 Transmission Speed

10/100/1000 Mbps

Mechanism

Mounting (Panel)

-

Enclosure (Plastic)

-

Mounting (Pole Mount)

-

Mounting (Stack)

-

Mounting (Wall)

Yes

Mounting (Rack Mount)

Yes

Mounting (DIN-rail)

-

Weight

3 kg

IP Rating

-

Dimensions (W x H x D)

441 x 44 x 196 mm

MTBF

Method

-

Time

-

PoE Information

Support PoE

-

PoE Output

-

PoE Budget

-

PoE Port Number

-

Power

Redundant Dual Inputs

-

Power Input (Battery)

-

Power Input (PoE)

-

Power Input (AC)

100 ~ 240 VAC

Power Operating Current

0.19A @ 240VAC

Power Connector Type

3-pin Power Connector

Power Input (DC)

-

Power Consumption

18W

Protection

Reverse Polarity

-

Overload Current

-

Switch Properties

Jumbo Frame

9,216 bytes

Switch Fabric Speed

56Gbps

Packet Buffer Size

4.1M bit

MAC Table Size

8K

Manufacturer Part No:
EKI-7428G-4CA-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220568
Product Model:
EKI-7428G-4CA-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
