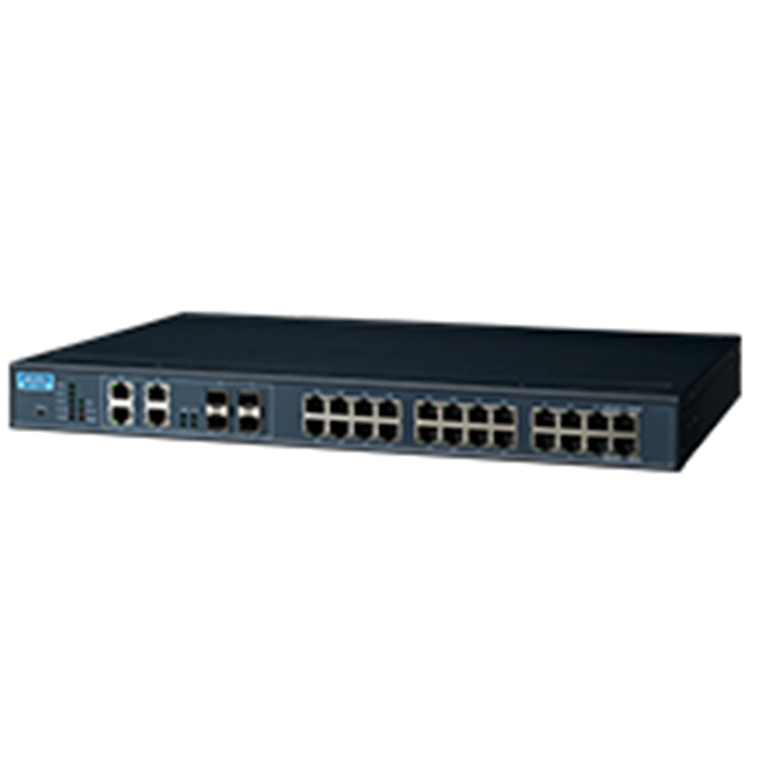

Advantech EKI-7428G-4CI-AE 24GE+4G Combo Port Managed Switch w/ Wide Temp

PB Tech price
PB Tech price
$ 1,931 .38
 +GST
$ 2,221 .09
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-7428G-4CI-AE 24GE+4G Combo Port Managed Switch w/ Wide Temp

  • Brand: Advantech
  • MPN: EKI-7428G-4CI-AE
  • Part #: IPCAVH220569
  • UPC:
PB Tech price
$ 1,931 .38 $ 2,221 .09
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 VDC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs

- 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
- SFP socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables fast deployment
- Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
- 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
- 40 ~ 70°C wide-range operating temperature
- Support Security Pack to against internal and external cyber threats

Specifications

MPN

EKI-7428G-4CI-AE
24GE+4G Combo Port Managed Ethernet Switch w/ Wide Temp

Communications

Standard

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab

LAN

10/100/1000Base-T (X), Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX

Transmission Distance

Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45 cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)

Transmission Speed

Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps

Interface

Connectors

24 x RJ45 (Ethernet)
4 x RJ45/SFP (mini-GBIC) combo ports
4-pin removable screw terminal (Power)
3-pin removable screw terminal (Relay)

LED Indicators

10/100T (X): Link/Activity, Duplex/Collision
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Link/Activity

Console

RS-232 (RJ45)

Network Management

Configuration

Web browser, Telnet, Serial console, TFTP, SNMPv1/v2c/v3, Port Speed/Duplex Configuration, IPv6

Switching

Switching Capacity 56 Gbps
Forwarding Rate 41.6 Mpps
MAC Address 8K
Jumbo Frame 9K
VLAN Group 256 (VLAN ID 1 ~ 4094)
Packet Buffer 4.1 Mbit

VLAN

IEEE 802.1Q, GVRP, Port-based VLAN

Redundancy

Advantech X-Ring, 802.1w/1D/1s RSTP/STP/MSTP

Security

IP Security, SSH, SSL, SNMPV3, HTTPS, IP Source
Guard, DHCP Snooping, ARP Spoofing Prevention,
802.1X, TACACS+, Access Control List

Traffic Control

IGMP Snooping/Query for multicast group management, Port Trunking, Static/802.3ad, LACP Rate limit and storm control, IEEE 802.1p QoS CoS/TOS/DSCP priority queuing, IEEE 802.3x flow control

Diagnostics

Port Mirroring, Real-time traffic statistic, MAC Address
Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON

Mechanism

Enclosure

IP30, metal shell with solid mounting kits

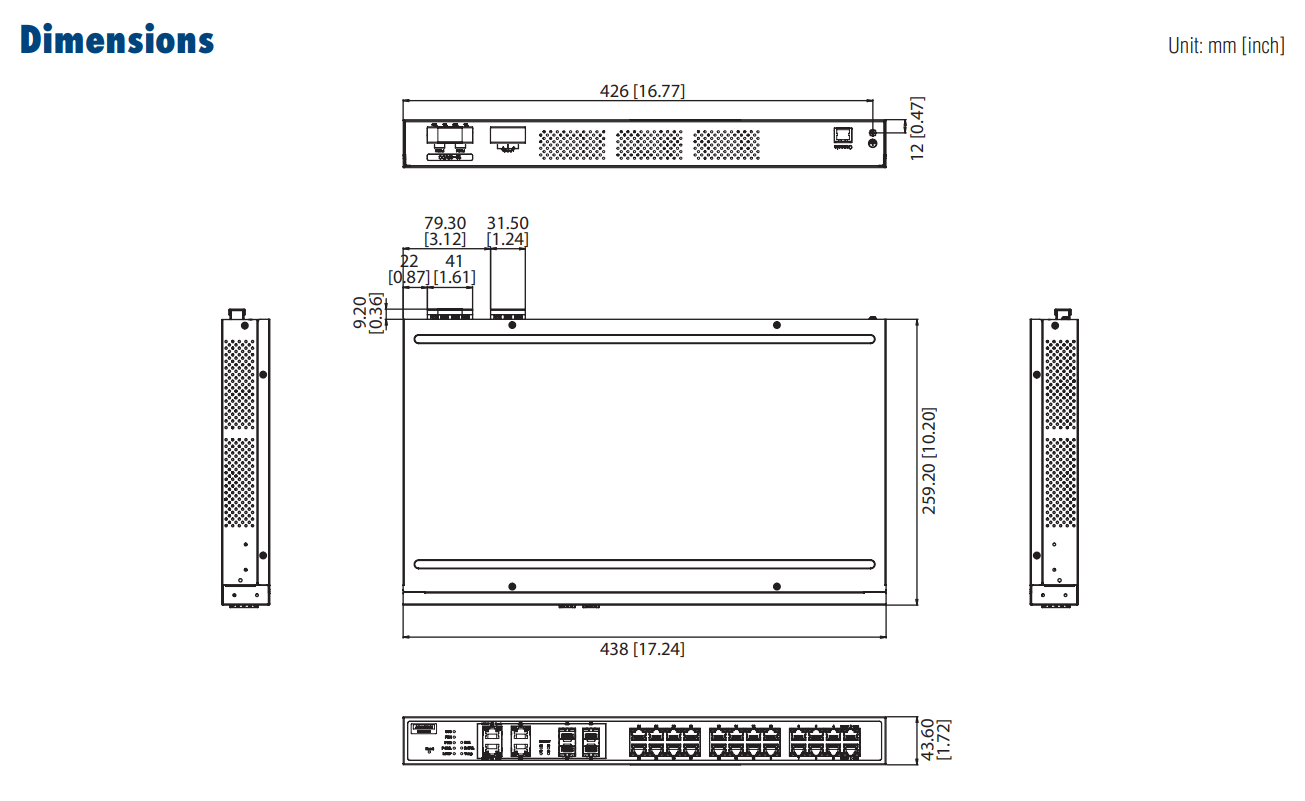

Dimensions (W x H x D)

438 x 43.6 x 259.20 mm (17.24" x 1.72" x 10.2")

Mounting

1U 19" Rack mount

Power

Power Consumption

20W @ 24V (EKI-7428G-4CI)

Power Input

EKI-7428G-4CI 12-48 VDC

Fault Output

2 Relay Outputs

Protection

Power Reverse

Present

Overload Current

Present

Environment

Operating Temperature

-40 ~ 70°C (-40 ~ 158°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Operating Humidity

10 ~ 95% (non-condensing)

Storage Humidity

10 ~ 95% (non-condensing)

MTBF

EKI-7428-4CI: 787,940 hours

Certification

Safety

UL 61010-2-201

EMI

CE FCC EN55022 Class A

EMS

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Railway Track Side

EN 50121-4

Manufacturer Part No:
EKI-7428G-4CI-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220569
Product Model:
EKI-7428G-4CI-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
