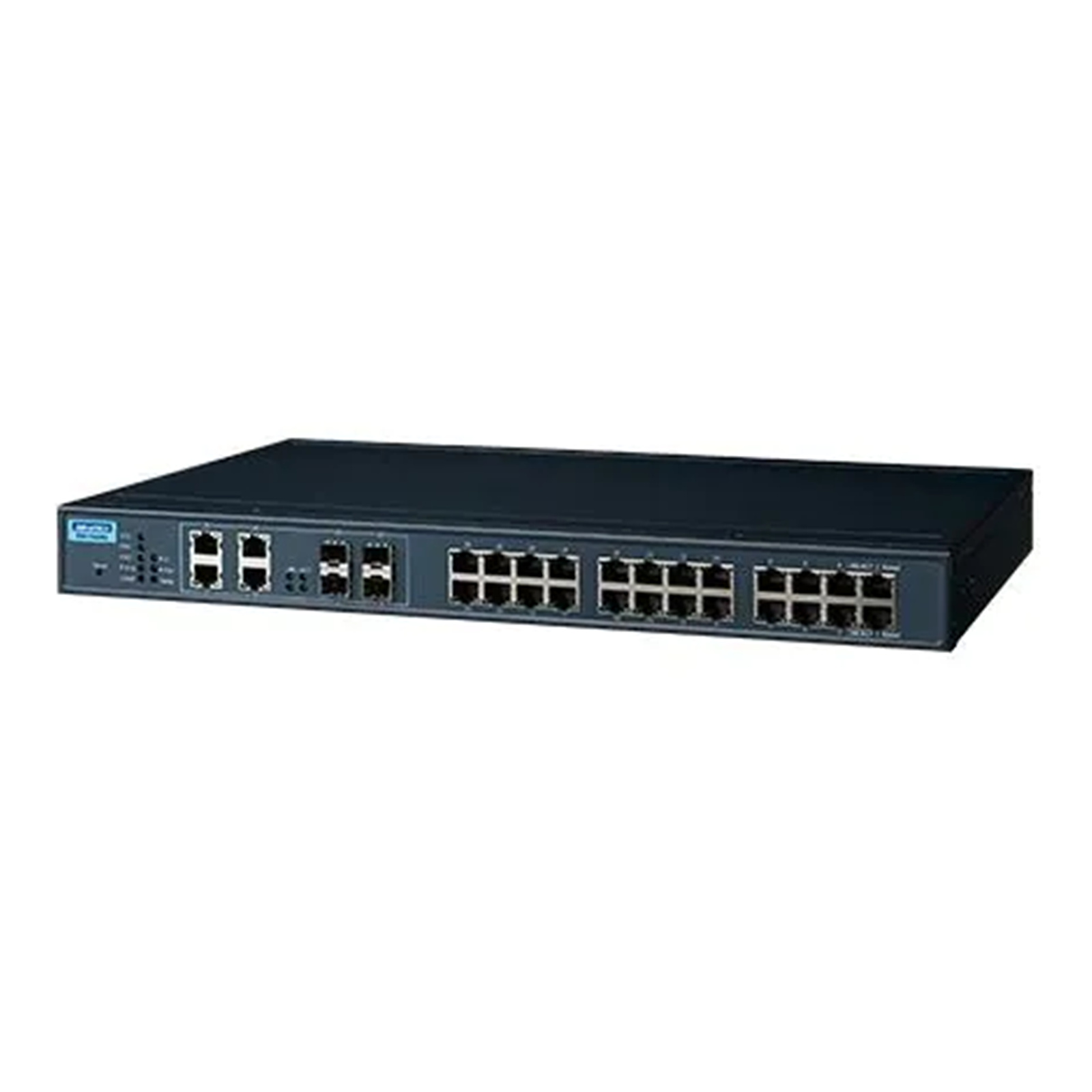

Advantech EKI-7428G-4CI-AU 24GE+4G Combo Port Managed Switch w/ Wide Temp
Out of stock
Advantech EKI-7428G-4CI-AU 24GE+4G Combo Port Managed Switch w/ Wide Temp
- Brand: Advantech
- MPN: EKI-7428G-4CI-AU
- Part #: IPCAVH220570
- UPC:
- Brand: Advantech
- MPN: EKI-7428G-4CI-AU
- Part #: IPCAVH220570
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-7428G-4CI-AU 24GE+4G Combo Port Managed Switch w/ Wide Temp
- Brand: Advantech
- MPN: EKI-7428G-4CI-AU
- Part #: IPCAVH220570

Product URL: https://www.pbtech.co.nz/product/IPCAVH220570/Advantech-EKI-7428G-4CI-AU-24GE4G-Combo-Port-Manag
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
24GE+4G Combo Managed Ethernet Switch, -40~70?
- 24 x Gigabit ports + 4 x Gigabit Copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables fast deployment
- Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
- 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
- -40 ~ 70°C wide-range operating temperature
Specifications
Certification
Ethernet Standard
IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32
Shock
IEC 60068-2-27
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
EMC
CE, FCC
Safety
UL 61010-2-201
Environment
Temperature (Max. Operating)
70°C (158°F)
Temperature (Min. Operating)
-40°C (-40°F)
Relative Humidity
10~95%
Operating Temperature
-40 ~ 70°C (-40 ~ 158°F)
Operating Humidity
10~95%
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45/SFP Combo Port Speed
-
RJ-45/SFP Combo Port Number
-
Fiber Port Optical Mode
-
Fiber Transmission Speed
10/100/1000 Mbps
Fiber Port Number
4
RJ-45 Port Number
28
Fiber Transmission Distance
Up to 110 km
Fiber Port Connector Type
SFP cage
Fiber Port Interface
SFP
RJ-45 Transmission Distance
100 m
Ethernet Standard
-
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (Panel)
-
Enclosure (Plastic)
-
Mounting (Pole Mount)
-
Mounting (Stack)
-
Mounting (Wall)
-
Mounting (Rack Mount)
Yes
Mounting (DIN-rail)
-
Weight
3.8 kg
IP Rating
IP30
Dimensions (W x H x D)
438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
MTBF
Method
Telcordia(Relax), GB
Time
787,940 hours
PoE Information
Support PoE
-
PoE Output
-
PoE Budget
-
PoE Port Number
-
Power
Redundant Dual Inputs
-
Power Input (Battery)
-
Power Input (PoE)
-
Power Input (AC)
-
Power Operating Current
0.83A @ 24 V
Power Connector Type
4-pin removable screw terminal (power & relay)
Power Input (DC)
12 ~ 48 VDC
Power Consumption
20W (system)
Protection
Reverse Polarity
Present
Overload Current
-
Switch Properties
Jumbo Frame
9,216 bytes
Switch Fabric Speed
56Gbps
Packet Buffer Size
4.1M bit
MAC Table Size
8K
