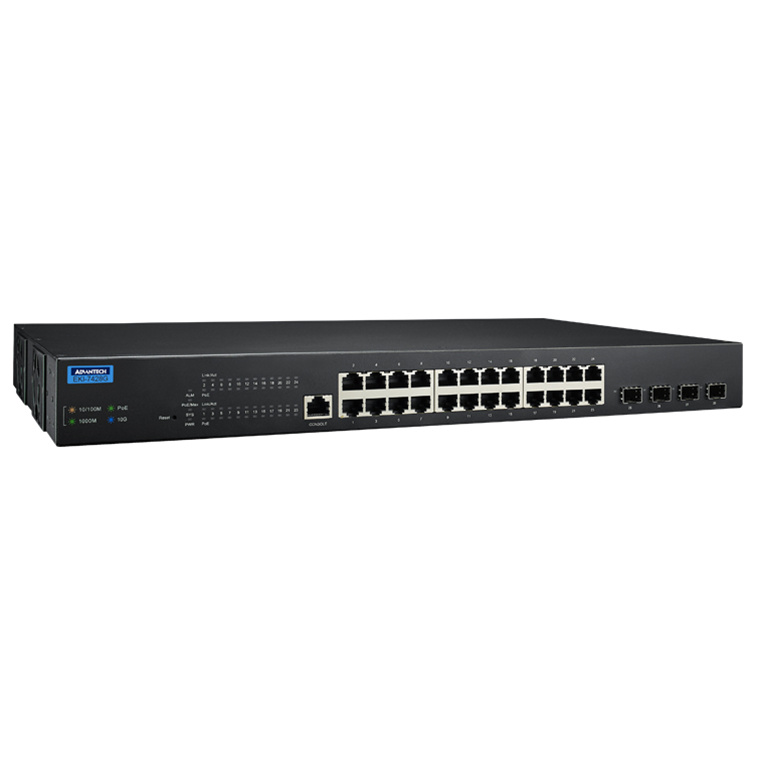

Advantech EKI-7428G-4XP-AE 24GE + 4 SFP+ L2 Managed PoE Switch

PB Tech price
PB Tech price
$ 2,086 .00
 +GST
$ 2,398 .90
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-7428G-4XP-AE 24GE + 4 SFP+ L2 Managed PoE Switch

  • Brand: Advantech
  • MPN: EKI-7428G-4XP-AE
  • Part #: IPCAVH220573
  • UPC:
PB Tech price
$ 2,086 .00 $ 2,398 .90
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

EKI-7428G series switches are equipped with 24 Gigabit Ethernet ports plus 4 10G SFP+ ports. They are ideal for large-scale networks with server and surveillance applications, like high-resolution videos and images, requiring high performance and large-scale data transmission. The EKI-7428G-4XP features IEEE 802.3at/af PoE (Power over Ethernet) providing up to 30 watts per port and up to 400 watts of power budget, making it ideal for applications requiring PoE and higher speeds. Designed for rack-mount installation with 1U 19" design, the EKI-7428G series integrate layer 2 switching software, delivering wire speed across all ports up to 128 Gbps for layer 2 and network nodes. It also supports up to 60°C wide operating temperature against the harsh environment.

- 24 Gigabit Ethernet Ports and 4 10G SFP Ports
- 0 to 60°C operating temperature range
- Supports 24 IEEE802.3af/at PoE ports (EKI-7428G-4XP)
- 400W Power Budget (EKI-7428G-4XP)
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM Function Enables Fast Deployment
- Redundancy: Gigabit X-Ring Pro ((Ultra High-Speed Recovery Time < 20 ms),
- RSTP/STP (802.1w/1D), MSTP

Specifications

MPN

EKI-7428G-4XP-AE
24GE+4 10G SFP L2 Managed PoE Switch

Interface

Ethernet Port

24 x RJ45 (10/100/1000BASE-T)
4 x SFP+ (1G/10G)

Console Port

RJ45

Power Connector

3-pin Power Connector

Physical

Enclosure

Metal Shell

Installation

1U 19" Rack Mount

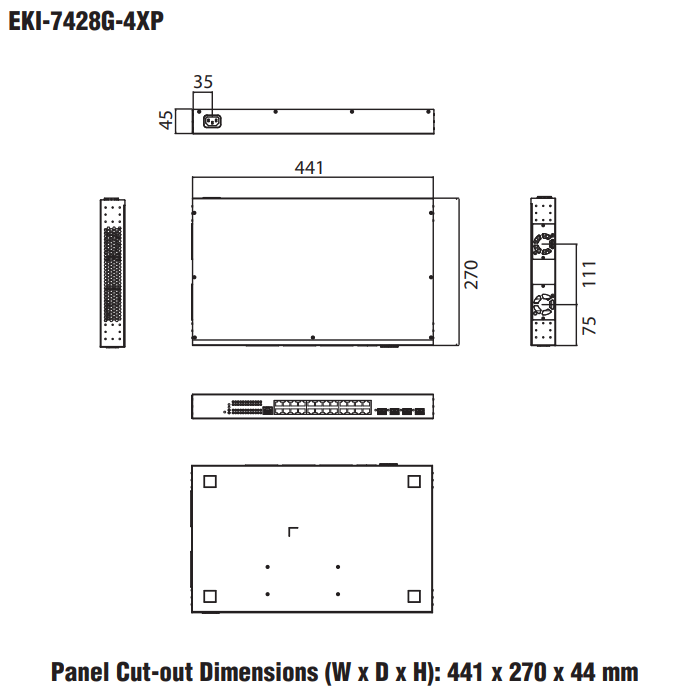

Dimension

441 x 44 x 270 mm
(17.24" x 1.73" x 10.63")

LED Display

System LED

ALM, SYS, PWR

Port LED

1 ~ 24 Port: Link/ACT/Speed
25 ~ 28 SFP+: Link/ACT

PoE LED

PoE, PoE/Max

Environment

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-40 ~ 70°C (-40 ~ 158°F)

Humidity

10 ~ 90% (non-condensing)

MTBF

EKI-7428G-4XP: 263,048 hours

Power

Power Consumption

36 Watts (System)

Operating Input Range

100-240VAC

PoE Total Power Budget

Up to 400Watts

Certification

Safety

LVD IEC/EN62368-1

EMC

CE EN 55032:2015+AC:2016 ClassA
      EN 61000-3-2:2014 Class A
      EN 61000-3-3:2013
      EN 55035:2017
FCC Part 15, Subpart B

L2 Feature

L2 MAC Address

16K

Jumbo Frame

12KB

Switch Capacity

128Gbps

Forwarding Rate

95.2Mpps

VLAN group

256 (VLAN ID 1~4094)

VLAN group

802.1Q, GVRP

Port Mirroring

Per port, Multi-source port (4 Mirroring sessions Max.)

IP Multicast

IGMP Snooping v1/v2/v3, MLD Snooping

Storm Control

Broadcast, Multicast, Unknown Unicast

Redundant Protocol

IEEE 802.1D(STP), IEEE802.1s(MSTP),
IEEE802.1w(RSTP), X-Ring Pro, X-Chain, Dual homing, Coupling

Quality of Service

QoS function

Scheduling (STRICT/ WRR), Port Priority, 802.1p,
DSCP, IP TOS/ precedence

Rate limit

Ingress/ Egrss Rate limit

Max Priority Queues

8

Security

Port Security

Static MAC, MAC Violation Notice, Port-based Loop Detection

Authentication

802.1x (Port-based, MAC-based), RADIUS

Management feature

DHCP

Client, Server, Option66/67/82, Port IP-Binding

Access

SNMP v1/v2c/v3, WEB, Telnet, Console, RMONv1,

Standard MIB, Private MIB

Security Access HTTPs, TLS 1.0

Software Upgrade

TFTP, HTTP, Dual Image

NTP

NTP Server/Client, SNTP Client

Other

IPv4, IPv6, Modbus TCP, IXM

Manufacturer Part No:
EKI-7428G-4XP-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220573
Product Model:
EKI-7428G-4XP-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
