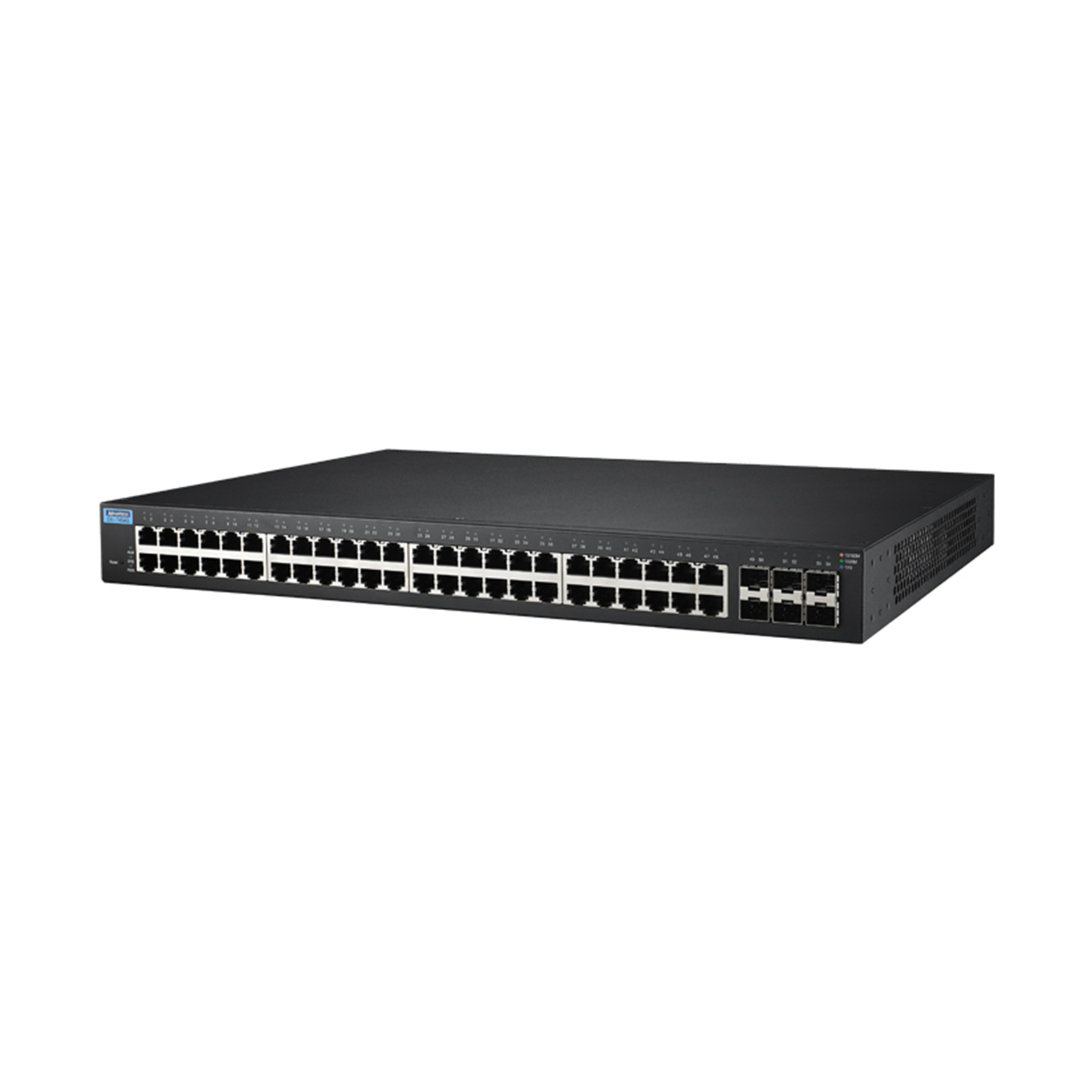

Advantech EKI-7454G-6X-AE 48GE + 6 SFP+ L2 Managed Switch
Out of stock
Advantech EKI-7454G-6X-AE 48GE + 6 SFP+ L2 Managed Switch
- Brand: Advantech
- MPN: EKI-7454G-6X-AE
- Part #: IPCAVH220574
- UPC:
- Brand: Advantech
- MPN: EKI-7454G-6X-AE
- Part #: IPCAVH220574
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-7454G-6X-AE 48GE + 6 SFP+ L2 Managed Switch
- Brand: Advantech
- MPN: EKI-7454G-6X-AE
- Part #: IPCAVH220574

Product URL: https://www.pbtech.co.nz/product/IPCAVH220574/Advantech-EKI-7454G-6X-AE-48GE--6-SFP-L2-Managed-S
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
48GE+6 10G SFP L2 Managed Switch
The EKI-7454G-6X is equipped with 48 Gigabit Ethernet ports plus 6 10G SFP+ ports. It is ideal for large-scale networks with server and surveillance applications, that involve highresolution videos and images, to achieve high performance and large-scale data transmission. Designed for rack-mount installation with 1U 19" design, integrates layer 2 switching software, delivering wire speed across all ports up to 216 Gbps for layer 2 and network nodes.
- 48 Gigabit Ethernet Ports and 6 10G SFP Ports
- 0 to 60°C operating temperature range
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM Function Enables Fast Deployment
- Redundancy: Gigabit X-Ring Pro ((Ultra High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP
Specifications
Interface
Ethernet Port
48 x RJ45 (10/100/1000BASE-T) 6 x SFP+ (1G/10G)
Console Port
RJ45
Power Connector
3-pin Power Connector
Physical
Enclosure
Metal Shell
Installation
1U 19" Rack Mount
Dimension
441 x 270 x 45 mm (17.36" x 10.63" x 1.77" inch)
LED Display
System LED
ALM, SYS, PWR
Port LED
1 ~ 48 Port: Link/ACT/Speed 49 ~ 52 SFP+: Link/ACT
Environment
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-40 ~ 70°C (-40 ~ 158°F)
Humidity
10 ~ 90% (non-condensing)
MTBF
TBD
Power
Power Consumption
36 Watts (System)
Operating Input Range
100-240VAC
Certification
Safety
LVD EN62368:2014
EMC
FCC Part 15, Subpart B: ANSI C63.4-2014 CE EN55032: 2010+AC:2011 EN55024: 2010+A1:2015
L2 Feature
L2 MAC Address
16K
Jumbo Frame
12KB
Switching Capacity
176 Gbps
Transmission Rate
129.3 Mpps
VLAN group
256 (VLAN ID 1~4094)
VLAN group
802.1Q, GVRP
Port Mirroring
Per port, Multi-source port (4 Mirroring sessions Max.)
IP Multicast
IGMP Snooping v1/v2/v3, MLD Snooping
Storm Control
Broadcast, Multicast, Unknown Unicast
Redundant Protocol
IEEE 802.1D(STP), IEEE802.1s(MSTP), IEEE802.1w(RSTP), X-Ring Pro, X-Chain, Dual homing, Coupling
Quality of Service
QoS function
Scheduling (STRICT/ WRR), Port Priority, 802.1p, DSCP, IP TOS/ precedence
Rate limit
Ingress/ Egrss Rate limit
Max Priority Queues
8
Security
Port Security
Static MAC, MAC Violation Notice, Port-based Loop Detection
Authentication
802.1x (Port-based, MAC-based), RADIUS
