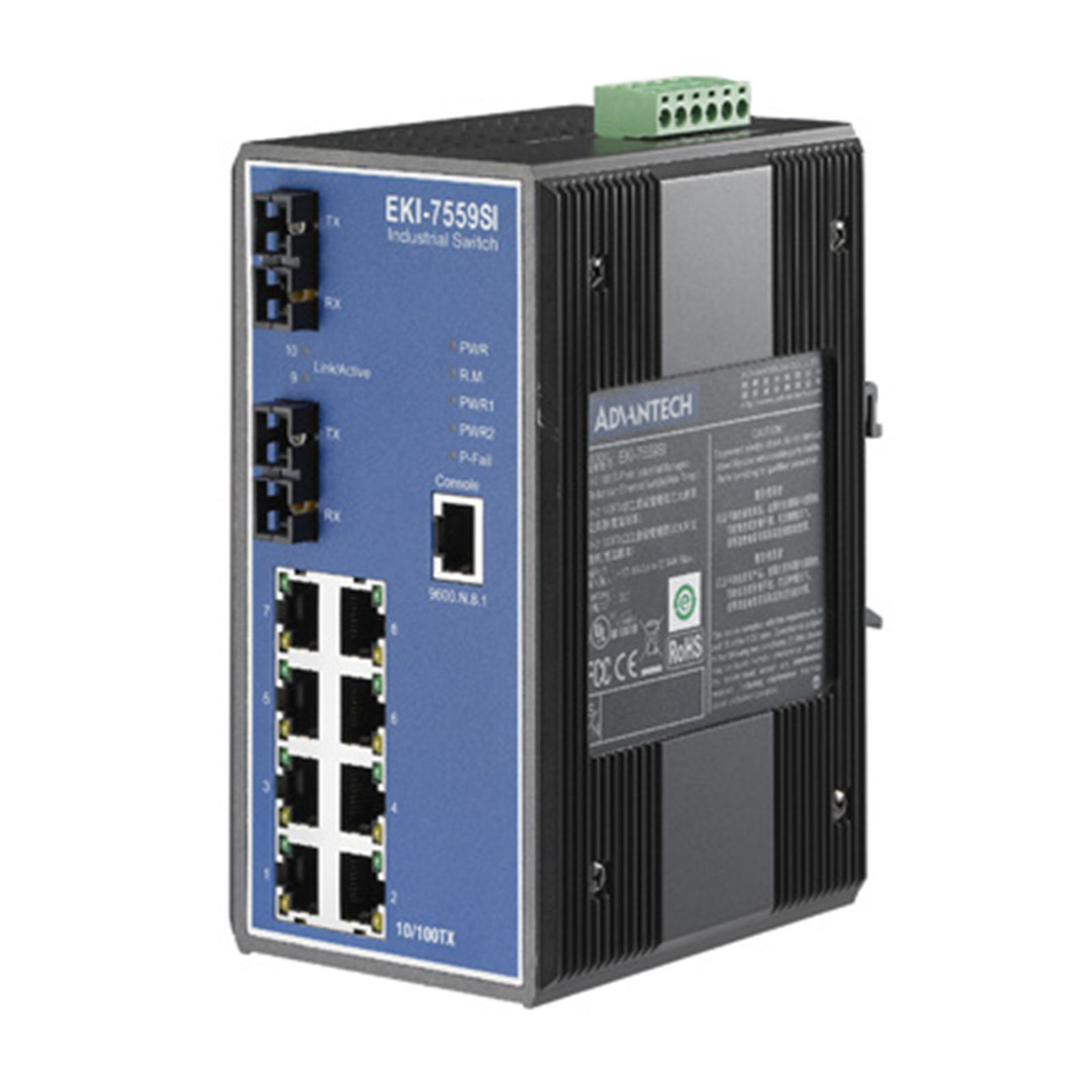

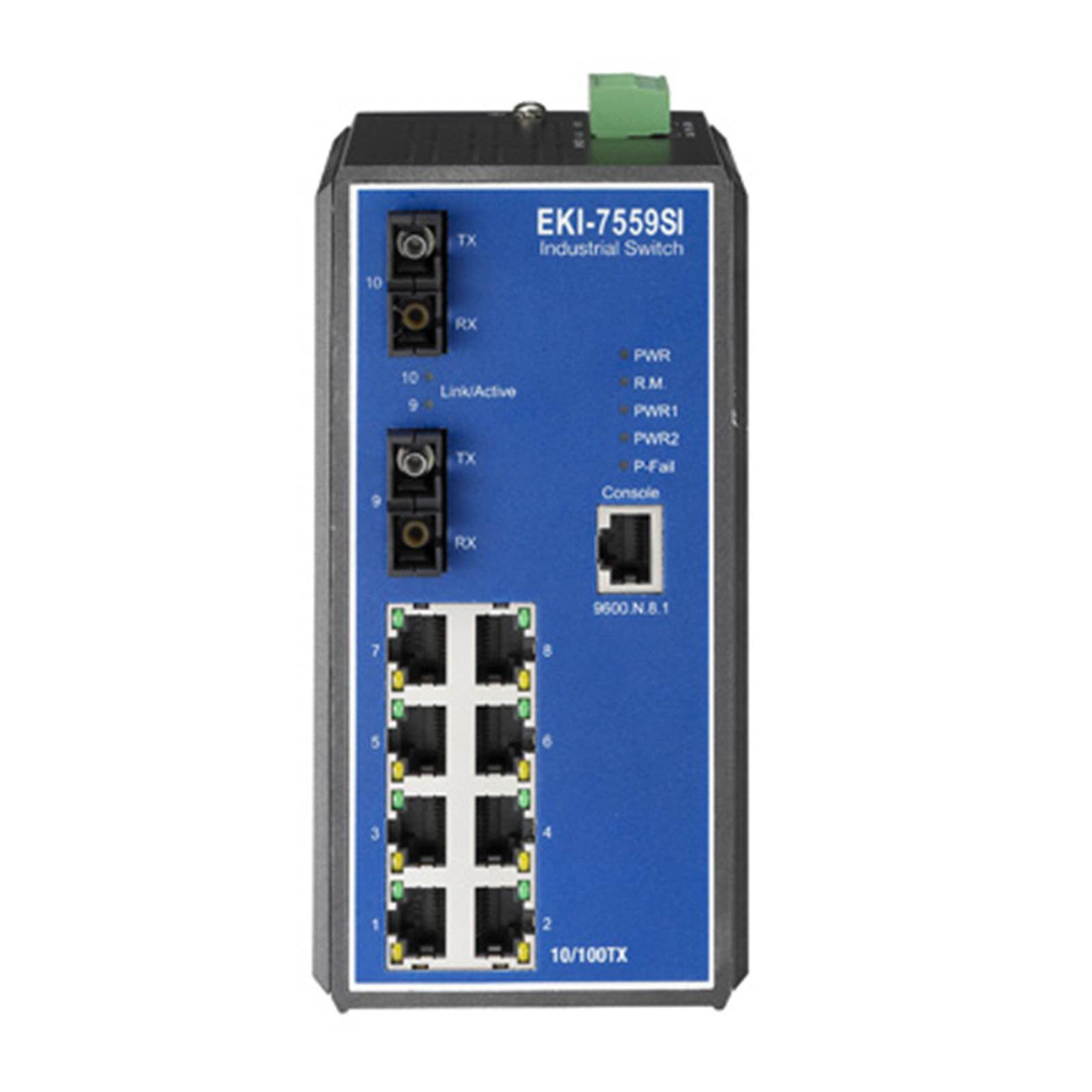

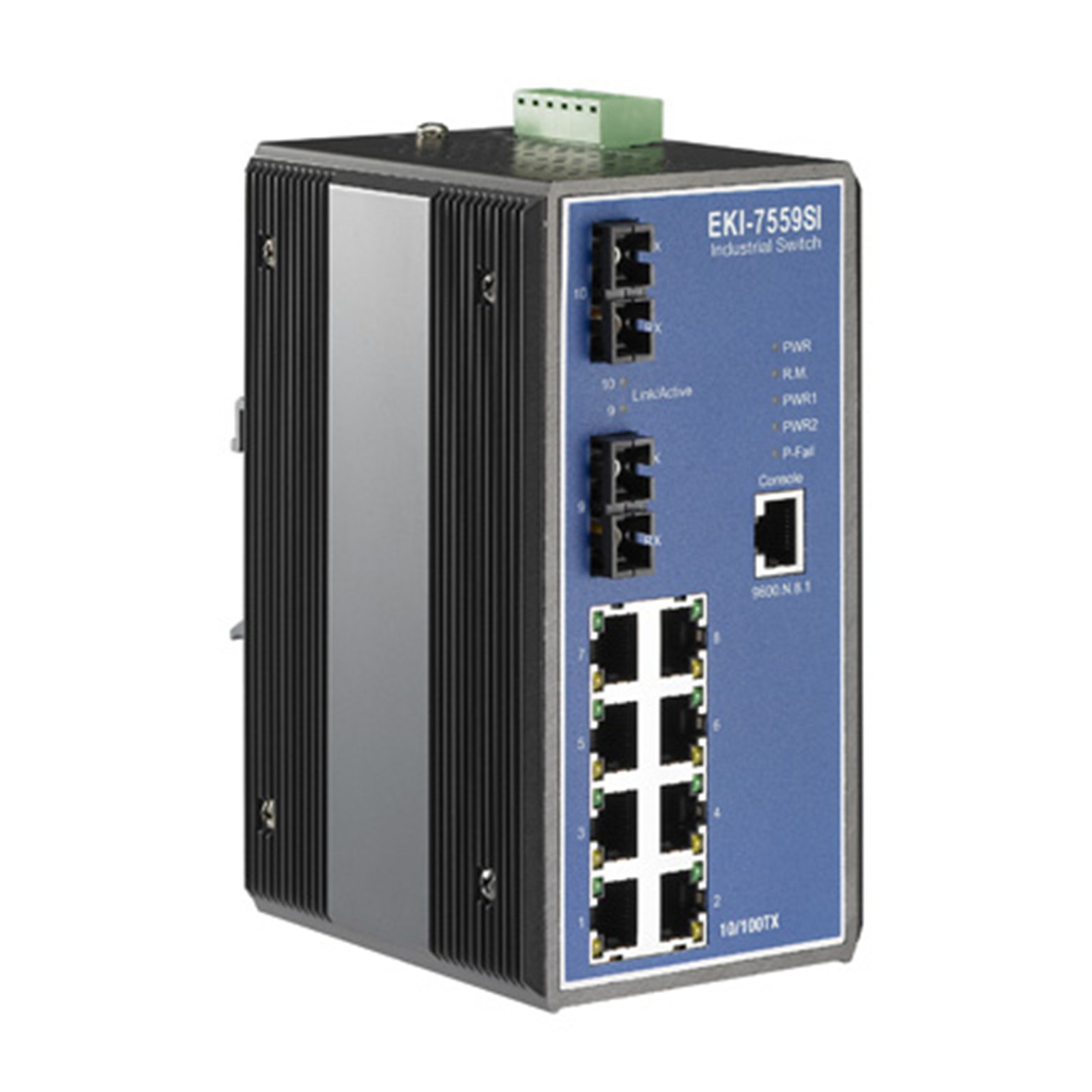

Advantech EKI-7559SI-AE 8FE+2FE SC Single-mode Managed Ethernet Switch, -40 75

PB Tech price
PB Tech price
$ 1,660 .06
 +GST
$ 1,909 .07
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-7559SI-AE 8FE+2FE SC Single-mode Managed Ethernet Switch, -40 75

  • Brand: Advantech
  • MPN: EKI-7559SI-AE
  • Part #: IPCAVH220577
  • UPC:
PB Tech price
$ 1,660 .06 $ 1,909 .07
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

8FE+2FE SC Single-mode Managed Ethernet Switch, -40~75?

Both the EKI-7554SI/MI and EKI-7559SI/MI support two SC type Fiber ports, EKI-7554SI/MI four Fast Ethernet ports and EKI-7559SI/MI can support up to eight Fast Ethernet ports. To create reliability in your network, the EKI-7554SI/MI come equipped with a proprietary redundant network protocol -- X-Ring Pro that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms. Furthermore, EKI-7554SI/MI also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

- 2 x SC-type fiber ports, plus 8 Fast Ethernet ports
- Redundancy: X-Ring (high-speed recovery time<10ms), RSTP/STP (802.1w/1D)
- Management: Web, Telnet, Serial Console, SNMP
- Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
- Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X, SNMPv3
- Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
- Dual 12 ~ 48 VDC power input and 1 Relay Output
- Robust mechanism and special heat spreader design
- Supports wide operating temperature -40 ~ 75° C

Specifications

Communications

Standard

IEEE 802.3, 802.3u, 802.3x, 802.3ad,  802.1D, 802.1w, 802.1p, 802.1Q, 802.1X

LAN

10/100Base-T (X), 100Base-FX

Transmission Distance

Ethernet : Up to 100 m Multi-mode Fiber: Up to 2 km (EKI-7554MI) Single-mode Fiber: Up to 30 km (EKI-7554SI)

Transmission Speed

Up to 100 Mbps

Interface

Connectors

4 x RJ45 ports (EKI-7554SI/MI) 8 x RJ45 ports (EKI-7559SI/MI) 2 x SC type fiber optic connectors

LED Indicators

System: PWR, PWR1, PWR2, R.M., P-Fail 10/100T (X): Link/Activity, Duplex/Collision

Console

RS-232 (RJ45)

Network Management

Configuration

Web browser, Telnet, Serial console, TFTP, SNMPv1/ v2c/v3, Port Speed/Duplex Configuration, IPv6

VLAN

IEEE 802.1Q, GVRP, Port-based VLAN

Redundancy

Advantech X-Ring Pro (Recovery time < 20 ms at 250 pcs full loading ring structure), Dual Homing, Dual Ring, Couple Ring, 802.1w/D RSTP/STP

Security

IP Access security, port security, DHCP Server, Port and IP Binding, 802.1X Port Access Control, SSL

Traffic Control

IGMP Snooping/Query for multicast group management, Port Trunking, Static/802.3ad, LACP Rate limit and storm control, IEEE 802.1p QoS CoS/TOS/ DSCP priority queuing, IEEE 802.3x flow control

Diagnostics

Port Mirroring, Real-time traffic statistic, MAC Address Table, SNTP, Syslog, Email Alert, SNMP Trap, RMON

Mechanism

Enclosure

IP30, metal shell with solid mounting kits

Dimensions (W x H x D)

79 x 152 x 105 mm (3.11" x 5.98" x 4.13")

Mounting

DIN-rail, Wall

Power

Power Consumption

Max. 7.7 W (EKI-7554SI/MI) Max. 8.4 W (EKI-7559SI/MI)

Power Input

12 ~ 48 VDC, redundant dual inputs

Fault Output

1 Relay Output

Protection

Power Reverse

Present

Overload Current

Present

Environment

Operating Temperature

-40 ~ 75°C  (-40 ~ 167°F)

Storage Temperature

-40 ~ 85°C  (-40 ~ 185°F)

Operating Humidity

5 ~ 95% (non-condensing)

Storage Humidity

0 ~ 95% (non-condensing)

MTBF

262,230 hours (EKI-7554SI/MI) 264,964 hours (EKI-7559SI/MI)

Certification

Safety UL 60950-1, CAN/CSA-C22.2 No.60950  Class I, Division 2 (EKI-7559MI/SI)

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6  EN 61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Manufacturer Part No:
EKI-7559SI-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220577
Product Model:
EKI-7559SI-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
