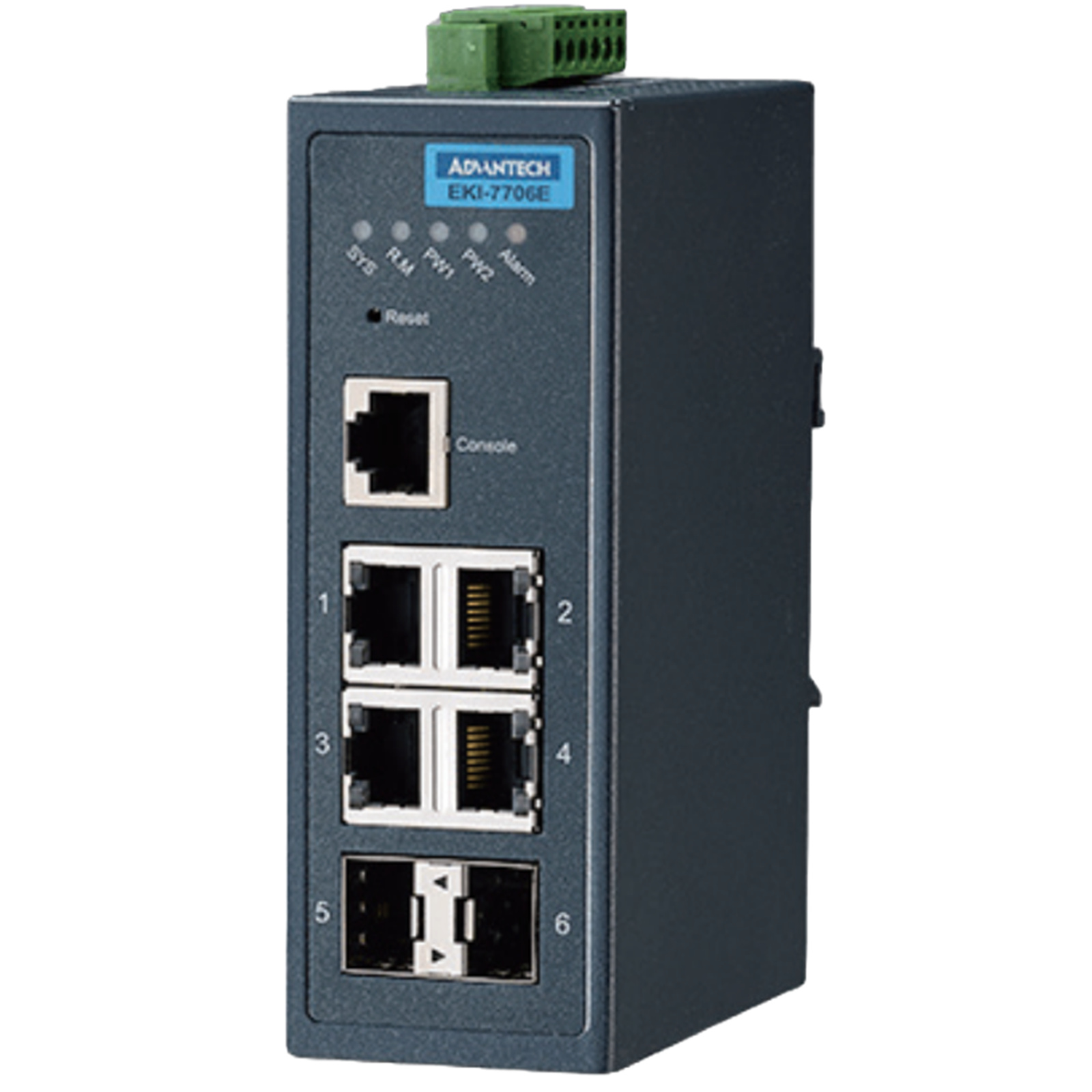

Advantech EKI-7706E-2FI-AE 4+2G port Gigabit Managed Ethernet Switch with 4 PoE+ port,-40 75
Out of stock
Advantech EKI-7706E-2FI-AE 4+2G port Gigabit Managed Ethernet Switch with 4 PoE+ port,-40 75
- Brand: Advantech
- MPN: EKI-7706E-2FI-AE
- Part #: IPCAVH220579
- UPC:
- Brand: Advantech
- MPN: EKI-7706E-2FI-AE
- Part #: IPCAVH220579
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-7706E-2FI-AE 4+2G port Gigabit Managed Ethernet Switch with 4 PoE+ port,-40 75
- Brand: Advantech
- MPN: EKI-7706E-2FI-AE
- Part #: IPCAVH220579

Product URL: https://www.pbtech.co.nz/product/IPCAVH220579/Advantech-EKI-7706E-2FI-AE-42G-port-Gigabit-Manage
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The EKI-7706E-2FI support 4 fast Ethernet ports and 2 SFP ports. It provides abundant port options for connecting to various device types and are embedded with Advantech's IXM function, which benefits users with fast deployment and considerable savings on engineering time and costs.
The EKI-7706E series (EKI-7706E-2F and EKI-7706E-2FI) support NMS to help IT managers with networking maintenance and failure prevention. Additionally, the series is equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
- 4 x Fast Ethernet ports + 2 x SFP ports
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 12 ~ 48 VDC power input and 1 x relay output
For more information: https://advdownload.advantech.com/productfile/PIS/EKI-7706E-2F/Product%20-%20Datasheet/EKI-7706E-2F_2FI_DS(062221)20210709144305.pdf
Specifications
Interfaces / Communications
I/O Port
4 x 10/100BASE-T/TX RJ-45
2 x SFP (mini-GBIC) port
Auto-Negotiation, Full/Half Duplex Mode
Auto MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)/FX
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for Flow Control
Console port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Physical
Enclosure
Metal Shell
Protection Class
IP 30
Installation
DIN-Rail, Wall-mount
Dimensions (W x H x D)
43 x 120 x 84 mm (1.69" x 4.72" x 3.31")
LED Indicators
System LED
PWR1, PWR2, SYS, Alarm and R.M.
Port LED
Link / Speed / Activity
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F) (EKI-7706E-2FI)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Overload Current Protection
Present
Reverse Polarity Protection
Present
MTBF 2,113,340 hours
Power
Power Consumption
5.28W @ 48VDC (System)
Power Input
12 ~ 48 VDC, redundant dual power input
Fault Output
1 Relay Output
Certification
Safety
UL 61010-2-201, EN LVD 62368
EMI
CE, CISPR 32, FCC Part 15B Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EMC EN 61000-6-2
EN 61000-6-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Traffic control
NEMA TS-2
Railway Trackside
EN 50121-4
Switch Properties
Switching Capacity
4.8Gbps
Transmission Rate
3.57Mpps
MAC Table Size
8K
Jumbo Frame
1,0240 Bytes
Packet Buffer Size
4.1Mb
Max. IGMP Group
256
Max. VLAN Group
256 (VLAN ID 1 ~ 4094)
