Features
Advantech EKI-7708G-2SI-AE 6G+2G Single-mode Managed Ethernet Switch w/ Wide Temp
Advantech's EKI-7708G-2MI/2SI are cost effective managed industrial Ethernet switches which support Gigabit Ethernet via built in fiber optic ports. These solutions feature embedded IXM functions to hasten deployment and reduce engineering time/costs. These switches extend transmission distances beyond the 100 m (328 ft) copper cable limitations using fiber port - they support 550 m (1804 ft) in multi-mode and 10 km (6.21 mi) in single mode.
The EKI-7708G-2MI/2SI series supports WebAccess/NMS to aid in network maintenance and failure prevention. These managed Ethernet switches deliver ultra-high speed recovery times of <20 ms using X-Ring Pro to ensure network stability. This solution supports broad operating temperatures (-40 ~ 75 °C /-40 ~ 167 °F), for use in traffic applications.
- 6 x Gigabit Ethernet ports + 2 x 1000 Mbps fiber ports with SC type connector
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication,
- SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 12 ~ 48 VDC and 24VAC power input and 1 x relay output
Specifications
Interfaces / Communications
I/O Port
6 x 10/100/1000BASE-T/TX RJ-45
2 x 1000Base-SX/LX fiber SC type connector
Auto-Negotiation, Full/Half Duplex Mode
Auto MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)/FX
IEEE 802.3ab 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX
IEEE 802.3x for Flow Control
Transmission Distance
Ethernet: Up to 100 m (328 ft)
Fiber: Multi-mode: Up to 550 m (1804 ft) (EKI-7708G-2MI)
Single-mode: Up to (6.21 mi) (EKI-7708G-2SI)
Console port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Optical Fiber
Single-mode (EKI-7708G-2SI)
Wavelength: 1310 nm
Tx Power: -3/-9.5 dBm
Rx Sensitivity: -20 dBm
Parameters: 9/125 um
Physical
Enclosure
Metal Shell
Protection Class
IP 30
Installation
DIN-Rail, Wall-mount

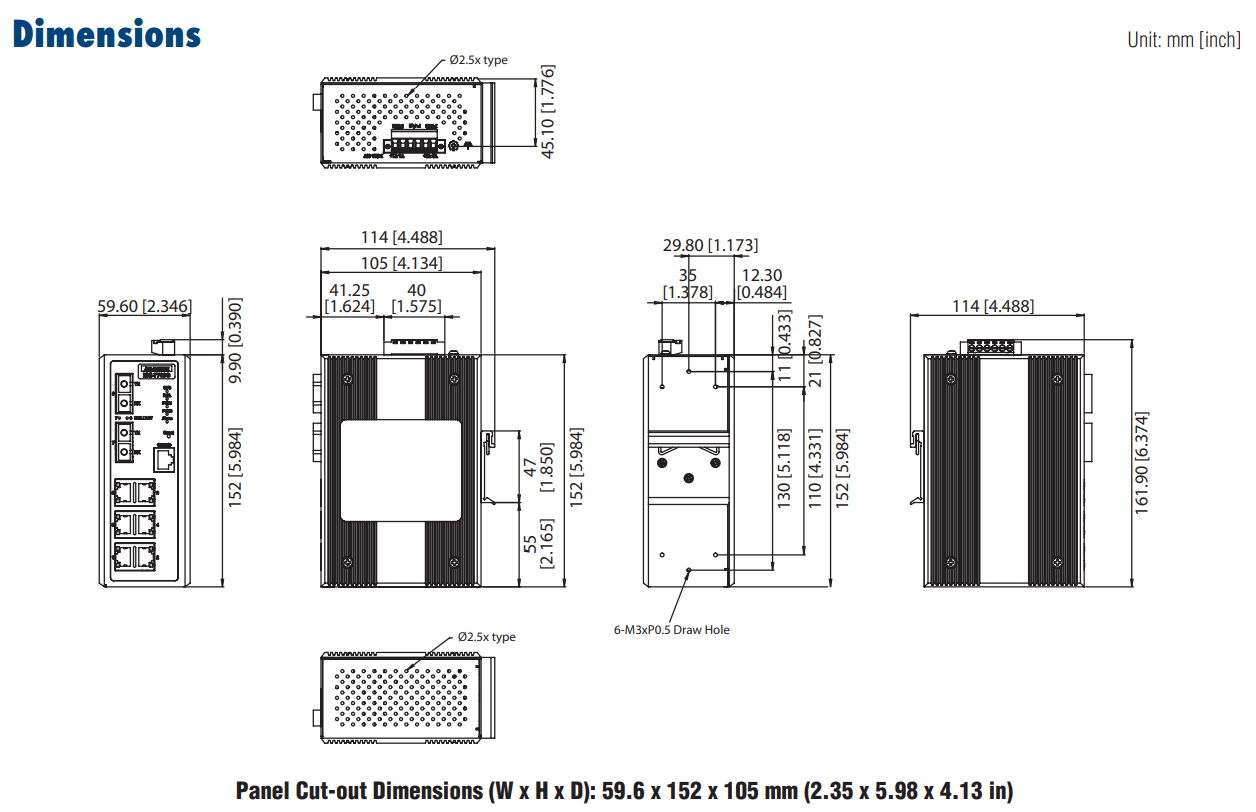

Dimensions (W x H x D)
59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in)
LED Indicators
System LED
P1, P2, P-Fail
Port LED
Fiber: LNK/ACT
Ethernet: 1000M, LNK/ACT
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Overload Current Protection
Present
Reverse Polarity Protection
Present
MTBF
TBC
Power
Power Consumption
7W @ 48VDC (System)
Power Input
12 ~ 48 VDC, 24 VAC (18 ~ 30 VAC), redundant dual power input
Fault Output
1 Relay Output
Certification
Safety
EN LVD 62368
EMI
CE, CISPR 32, FCC Part 15B Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EMC
EN 61000-6-2
EN 61000-6-4
Shock IEC
60068-2-27
Freefall IEC
60068-2-32
Vibration
IEC 60068-2-6
