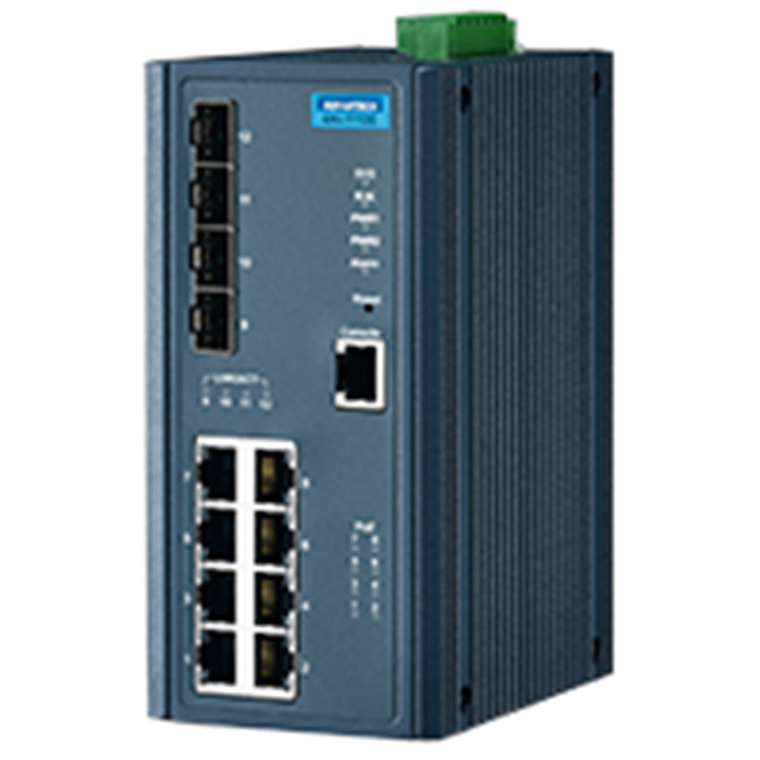

Advantech EKI-7712E-4FPI-AU 8FE+4SFP with POE wide temp
Out of stock
Advantech EKI-7712E-4FPI-AU 8FE+4SFP with POE wide temp
- Brand: Advantech
- MPN: EKI-7712E-4FPI-AU
- Part #: IPCAVH220607
- UPC:
- Brand: Advantech
- MPN: EKI-7712E-4FPI-AU
- Part #: IPCAVH220607
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-7712E-4FPI-AU 8FE+4SFP with POE wide temp
- Brand: Advantech
- MPN: EKI-7712E-4FPI-AU
- Part #: IPCAVH220607

Product URL: https://www.pbtech.co.nz/product/IPCAVH220607/Advantech-EKI-7712E-4FPI-AU-8FE4SFP-with-POE-wide
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- 8x IEEE 802.3 af/at PoE Fast Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature
- Dual 48 V DC power input and 1 relay output
For more information: https://advdownload.advantech.com/productfile/PIS/EKI-7712E-4FPI/Product%20-%20Datasheet/EKI-7712E-4FP_4FPI_DS(062221)20210709144312.pdf
Specifications
Interface
Port Number
12
Ethernet Communication
RJ-45 Port Connector Type
8 x RJ-45, 4 x SFP
RJ-45 Transmission Speed
10/100 Mbps
RJ-45 Transmission Distance
100 m
Fiber Transmission Distance
Up to 110 km
Power
Power Input (DC)
48 VDC
Power Operating Current
0.25A @ 48VDC (system)
Power Consumption
12.1W (system)
Power Connector Type
6-pin removable screw terminal (power & relay)
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
EMI
CE, FCC Class A
Safety
UL 61010
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
PoE Information
PoE Port Number
8
Switch Properties
MAC Table Size
8K
Packet Buffer Size
4.1M bit
Switch Fabric Speed
9.6Gbps
Jumbo Frame
9,216 bytes
Mechanism
Dimensions (W x H x D)
74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
IP Rating
IP30
Enclosure (Metal)
Metal
Weight
1.1 kg
Mounting
DIN-rail, Wall
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Relative Humidity
10~95%
MTBF
Time
1,001,782 hours
Method
Telcordia(Relax), GB
