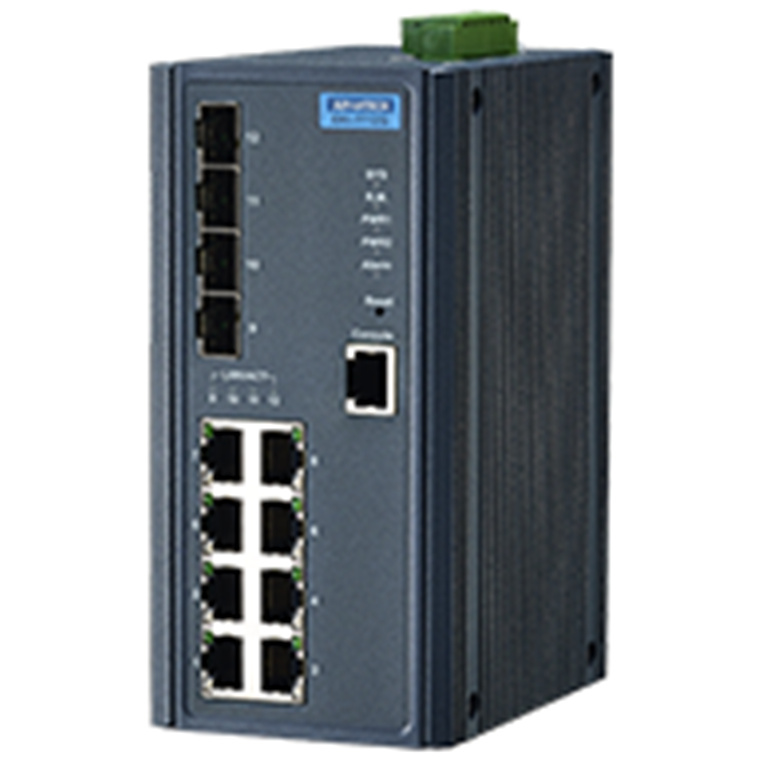

Advantech EKI-7712G-4FI-AU 8G + 4SFP Port Managed Ethernet Switch Wide Temp
Out of stock
Advantech EKI-7712G-4FI-AU 8G + 4SFP Port Managed Ethernet Switch Wide Temp
- Brand: Advantech
- MPN: EKI-7712G-4FI-AU
- Part #: IPCAVH220611
- UPC:
- Brand: Advantech
- MPN: EKI-7712G-4FI-AU
- Part #: IPCAVH220611
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-7712G-4FI-AU 8G + 4SFP Port Managed Ethernet Switch Wide Temp
- Brand: Advantech
- MPN: EKI-7712G-4FI-AU
- Part #: IPCAVH220611

Product URL: https://www.pbtech.co.nz/product/IPCAVH220611/Advantech-EKI-7712G-4FI-AU-8G--4SFP-Port-Managed-E
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Advantech EKI-7712G-4FI-AU 8G + 4SFP Port Managed Ethernet Switch Wide Temp
- 8 Gigabit ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- 40 ~ 75°C wide-range operating temperature (EKI-7712G-4FI)
- Dual 12~48 VDC power input and 1 relay output
Specifications
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32
Shock
IEC 60068-2-27
EMS
-
EMI
CE, FCC Class A
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
UL 61010
Environment
Relative Humidity
10~95%
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Transmission Distance
Up to 110 km
RJ-45 Transmission Distance
100 m
RJ-45 Port Connector Type
8 x RJ-45, 4 x SFP
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Weight
1.1 kg
IP Rating
IP30
Dimensions (W x H x D)
74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
MTBF
Method
Telcordia(Relax), GB
Time
1,001,782 hours
Power
Power Operating Current
0.25A @ 48VDC (system)
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Input (DC)
12 ~ 48 VDC
Power Consumption
12.1W (system)
Switch Properties
Jumbo Frame
9,216 bytes
Switch Fabric Speed
24Gbps
Packet Buffer Size
4.1M bit
MAC Table Size
8K
