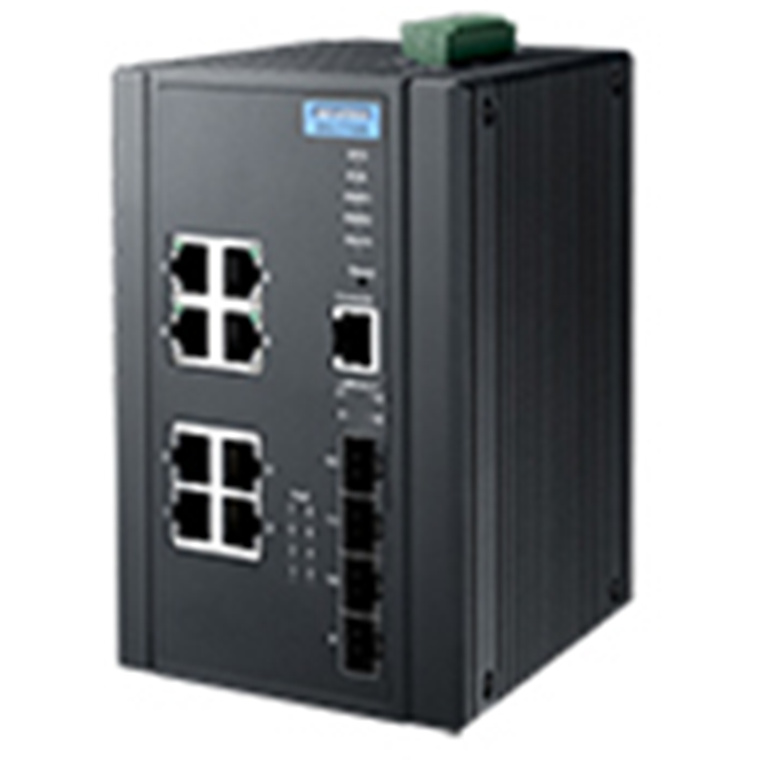

Advantech EKI-7712G-4FMPI-AE 12port Gigabit Managed Ethernet Switch with 8 IEEE802.3af/at/bt, -40 70
Out of stock
Advantech EKI-7712G-4FMPI-AE 12port Gigabit Managed Ethernet Switch with 8 IEEE802.3af/at/bt, -40 70
- Brand: Advantech
- MPN: EKI-7712G-4FMPI-AE
- Part #: IPCAVH220612
- UPC:
- Brand: Advantech
- MPN: EKI-7712G-4FMPI-AE
- Part #: IPCAVH220612
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-7712G-4FMPI-AE 12port Gigabit Managed Ethernet Switch with 8 IEEE802.3af/at/bt, -40 70
- Brand: Advantech
- MPN: EKI-7712G-4FMPI-AE
- Part #: IPCAVH220612

Product URL: https://www.pbtech.co.nz/product/IPCAVH220612/Advantech-EKI-7712G-4FMPI-AE-12port-Gigabit-Manage
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x IEEE 802.3af/at PoE Gigabit ports, 2 x IEEE 802.3bt PoE Gigabit ports, and 4 x SFP ports, EKI-7712G-4FMPI provides multiple usages for different scenarios. The EKI-7712G-4FMPI is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. It is also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability.
- Support 2 x IEEE 802.3bt class 8 90W PoE ports, 6 x IEEE 802.3at/af PoE ports and 4 x SFP ports
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- SFP socket for easy and flexible fiber expansion
- NEMA TS2 for traffic control
Specifications
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32
Shock
IEC 60068-2-27
EMS
-
EMI
CE, FCC Class A
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
UL 62368
Environment
Temperature (Max. Operating)
70°C (158°F)
Temperature (Min. Operating)
-40°C (-40°F)
Relative Humidity
10~95
Operating Temperature
-40 ~ 70°C (-40 ~ 158°F)
Operating Humidity
-
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45/SFP Combo Port Speed
-
RJ-45/SFP Combo Port Number
-
Fiber Port Optical Mode
Fiber Transmission Speed
-
Fiber Port Number
4
RJ-45 Port Number
8
Fiber Transmission Distance
Up to 110 km
Fiber Port Connector Type
SFP cage
Fiber Port Interface
SFP
RJ-45 Transmission Distance
100 m
Ethernet Standard
-
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (DIN-rail)
Yes
Weight
1.1 kg
IP Rating
IP30

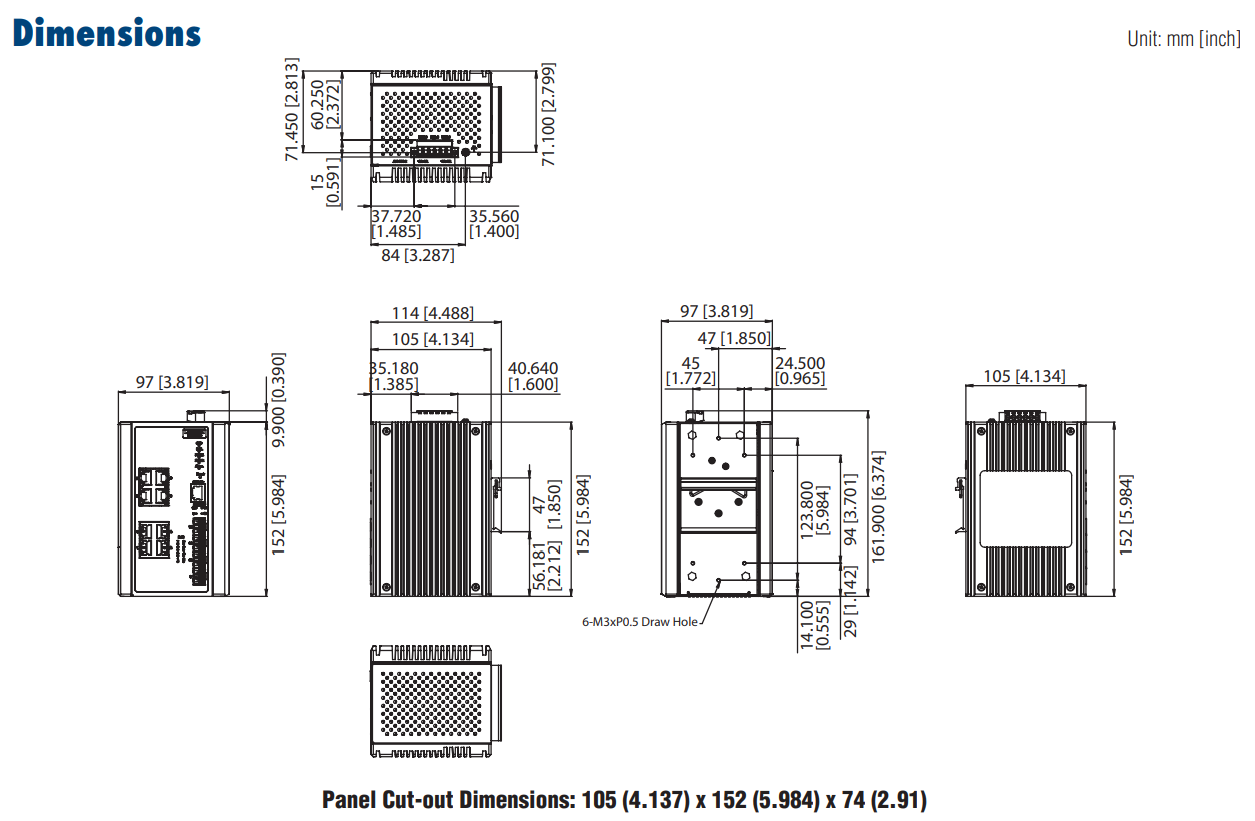

Dimensions (W x H x D)
97 x 152 x 105 mm
PoE Information
Support PoE
-
PoE Output
-
PoE Budget
370W
PoE Port Number
6 x 802.3at + 2 x 802.3bt
Power
Power Input (Battery)
-
Power Input (PoE)
-
Power Input (AC)
-
Power Operating Current
0.12A @ 55VDC
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Input (DC)
55 ~ 57 VDC
Power Consumption
12W
Protection
Reverse Polarity
Present
Switch Properties
Jumbo Frame
9,216 bytes
Switch Fabric Speed
24Gbps
Packet Buffer Size
4.1M bit
MAC Table Size
8K
