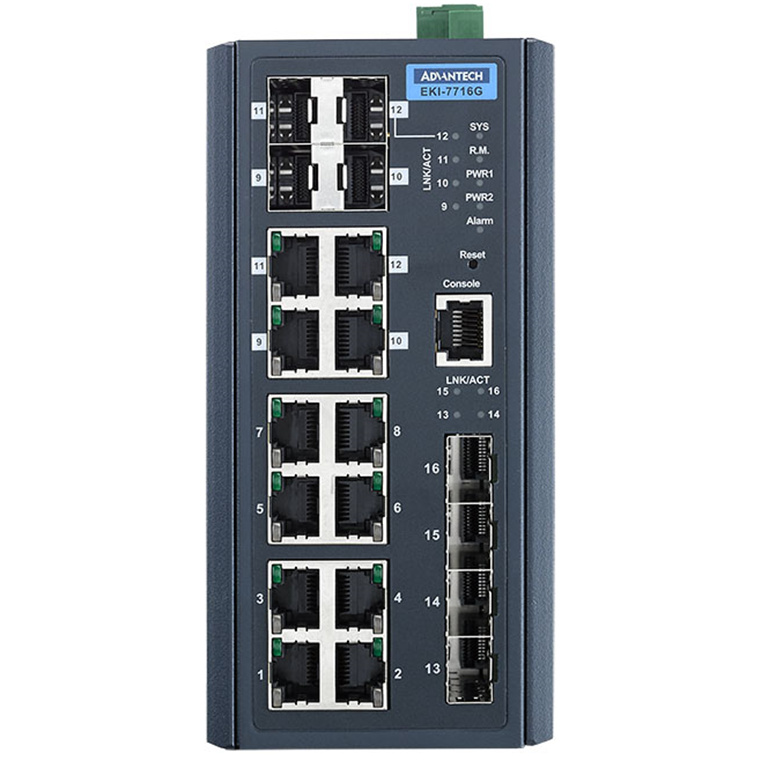

Advantech EKI-7716G-4F4CI-AE 16port Gigabit Managed Ethernet Switch with 8port SFP & combo port,-40 75
Out of stock
Advantech EKI-7716G-4F4CI-AE 16port Gigabit Managed Ethernet Switch with 8port SFP & combo port,-40 75
- Brand: Advantech
- MPN: EKI-7716G-4F4CI-AE
- Part #: IPCAVH220617
- UPC:
- Brand: Advantech
- MPN: EKI-7716G-4F4CI-AE
- Part #: IPCAVH220617
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-7716G-4F4CI-AE 16port Gigabit Managed Ethernet Switch with 8port SFP & combo port,-40 75
- Brand: Advantech
- MPN: EKI-7716G-4F4CI-AE
- Part #: IPCAVH220617

Product URL: https://www.pbtech.co.nz/product/IPCAVH220617/Advantech-EKI-7716G-4F4CI-AE-16port-Gigabit-Manage
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The EKI-7716G-4F4CI offer 8 fast Ethernet, 4 Gigabit SFP (mini-GBIC), and 4 Gigabit combo ports. These switches provide abundant port options for connecting to various device types. They are also embedded with Advantech IXM function for fast deployment, which can dramatically save on engineering time and costs.
The EKI-7716G also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro redundancy for ultra-high-speed recovery times of <20 ms. The EKI-7716G-4F4CI also features a wide operating temperature range of -40 to 75°C and a NEMA TS2 rating, making it ideal for use in traffic applications. The switch also meet the EN50121-4 European railway standard for emissions and EMI immunity for railway platforms and trackside deployment.
- 12 ~ 48 VDC power input and 1 relay output
- -40 ~ 75°C wide-range operating temperature (EKI-7716G-4F4CI)
- EN50121-4 approval for railway trackside deployment
- NEMA TS2 for traffic control
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP and MSTP (802.1w/1D/1s)
- SFP socket for easy and flexible fiber expansion
Specifications
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32
Shock
IEC 60068-2-27
EMS
-
EMI
CE, FCC Class A
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
Safety
-
Environment
Temperature (Max. Operating
75°C (167°F)
Temperature (Min. Operating)
-40°C (-40°F
Relative Humidity
10~95%
Operating Temperatur
-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity
-
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45/SFP Combo Port Speed
-
RJ-45/SFP Combo Port Number
4
Fiber Port Optical Mode
-
Fiber Transmission Speed
-
Fiber Port Numbe
4
RJ-45 Port Number
16
Fiber Transmission Distance
Up to 110 km
Fiber Port Connector Type
SFP cage
Fiber Port Interface
SF
RJ-45 Transmission Distance
100 m
Ethernet Standard
-
RJ-45 Port Connector Type
8 x RJ-45 + 4 x SFP + 4 x RJ-45/SFP
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (DIN-rail)
Yes
Weight
1.2 kg
IP Rating
IP30

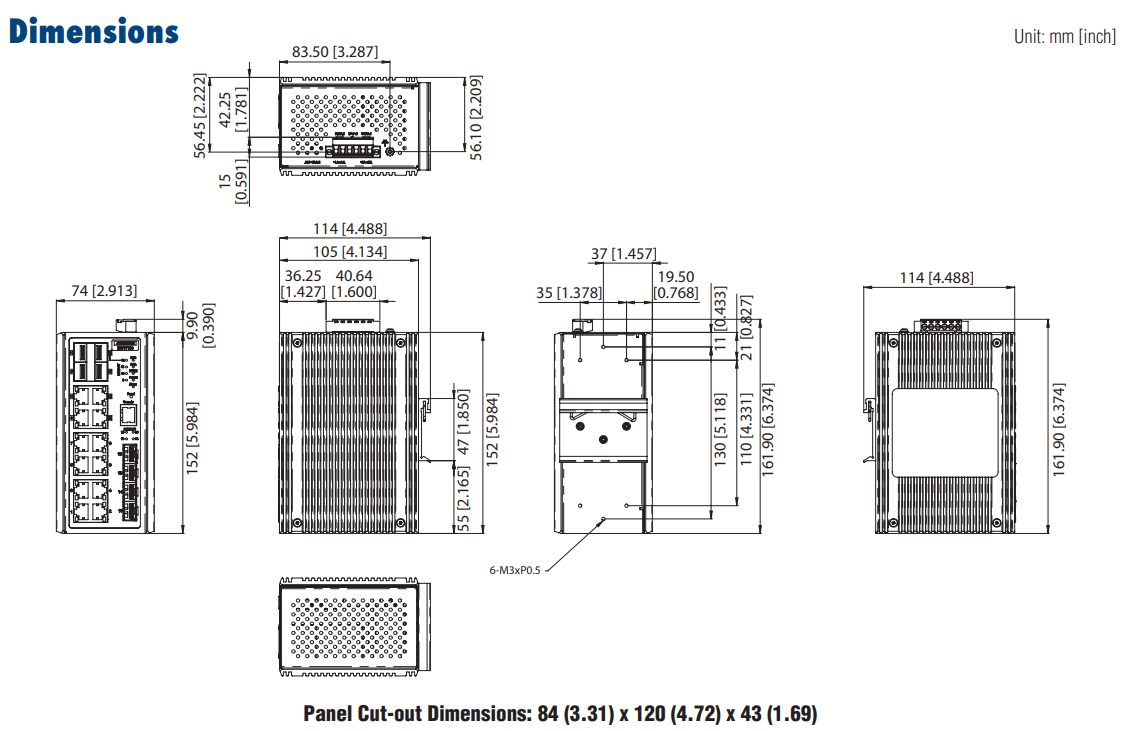

Dimensions (W x H x D)
74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
MTBF
Method
Telcordia, GB
Time
-
Power Operating Current
0.25A @ 48VDC (system)
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Input (DC)
12 ~ 48 VDC
Power Consumption
12.1W (system)
Protection
Reverse Polarity
Present
Overload Current
-
Switch Properties
Jumbo Frame
9,216 bytes
Switch Fabric Speed
32Gbps
Packet Buffer Size
4.1M bit
MAC Table Size
8K
