Features
- 16 IEEE 802.3af/at PoE ports
- Up to 420W power budget
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- -40 ~ 70°C wide-range operating temperature
- Dual 48 ~ 57VDC power inputs and 1 x relay output
Specifications
Certification
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
EMI
CE, FCC Class A
Freefall
IEC 60068-2-32
Safety
-
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Ethernet Communication
Ethernet Standard
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad
RJ-45 Port Connector Type
16 x RJ-45 (Ethernet)
RJ-45 Transmission Speed
10/100/1000 Mbps
RJ-45 Transmission Distance
100 m
Fiber Port Interface
SFP
Fiber Transmission Speed
100/1000 Mbps
Fiber Transmission Distance
Up to 110 km
Environment
Operating Temperature
-40 ~ 70°C (-40 ~ 158°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
10~95%
Mechanism

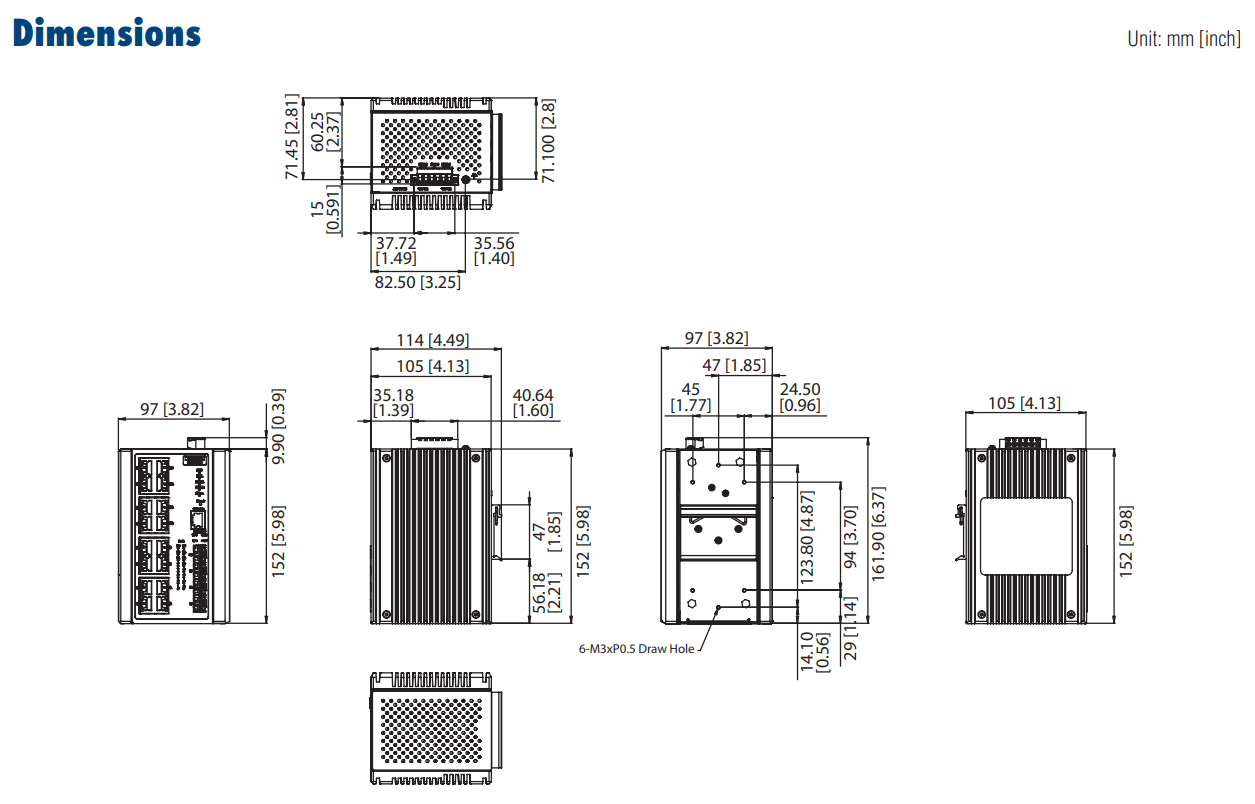

Dimensions (W x H x D)
97 x 152 x 105 mm
Enclosure (Metal)
Metal
IP Rating
IP30
Mounting (DIN-rail)
Ye
Mounting (Wall)
Yes
Weight
1.2 kg
PoE Information
PoE Output
25.5W
PoE Port Number
16
PoE Budget
420W
Power
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Consumption
16W (system)
Power Input (DC)
48 ~ 57 VDC
Power Operating Current
0.3A @ 48 VDC (system)
