Features

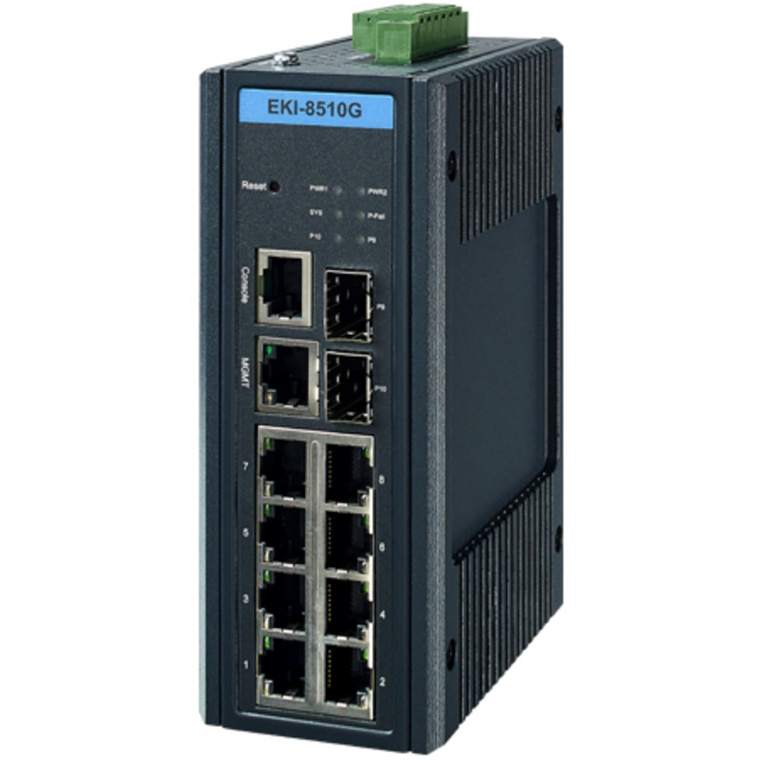

The EKI-8510G-2FI is the next generation of industrial switch which supports real-time communication through Time Sensitive Networking (TSN) technology. Providing a means for determinism over Ethernet-based networks and guarantee the delivery for those critical real-time applications that require determinism.
The key features of EKI-8510G-2FI TSN switch are: Supports IEEE 1588v2 Precision Time Protocol (PTP) with time synchronization, it is possible for all devices to operate in unison and execute the operation at exactly the required point in time. With IEEE 802.1Qbu for Frame Preemption, it allows for a reduction of transmission latency for express traffic, which can preempt low priority packets. The Time Aware Shaper (TAS) which from IEEE 802.1Qbv, separates communication into fixed lengths and repeating time cycles. This requires transmission guarantees cannot be interrupted. Based on IEEE 802.1CB for Seamless Redundancy, Frame Replication and Elimination for Reliability sends duplicate copies of each frame over multiple paths which control applications that cannot tolerate packet losses.
- CC-Link IE TSN Class A/B certified
- 8x Gigabit ports + 2 x Gigabit SFP ports
- IEEE 1588v2 PTP Precision Time Protocol
- Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame
- Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
- SFP socket for easy and flexible fiber expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
- NEMA TS2 for traffic control and EN 50121-4 approval for railway track sides
- Dual 12~48 VDC power input and 1 x relay output
Specifications
Communications
Standard
IEEE 802.3 10BASE-T(X)
IEEE 802.3u 100BASE-T(X)
IEEE 802.3ab 1000BASE-T(X)
IEEE 802.3z 1000BASE-LX
EEE 802.3x Flow Control
LAN
10/100/1000Base-T(X), 1000Base-SX/LX/LHX/ XD/ZX/EZX
Transmission Distance
Ethernet: Up to 100m
SFP: Up to 110km (depends on SFP)
Transmission Speed
Gigabit Copper: 10/100/1000 Mbps, auto-negotiation
Gigabit Fiber: Up to 1000Mbps
Switch Capacity
20 Gbps
Transmission Rate
14.8 Mpps
Interface
I/O Port
8 x 10/100/1000BASE-T/TX RJ-45
2 x SFP (mini-GBIC) port
Management Port
1 x 10/100/1000BASE-T/TX RJ-45
Console Port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Mechanism
Enclosure
Metal Shell
Protection Class
IP 30
Installation
Din-Rail, Wall mount

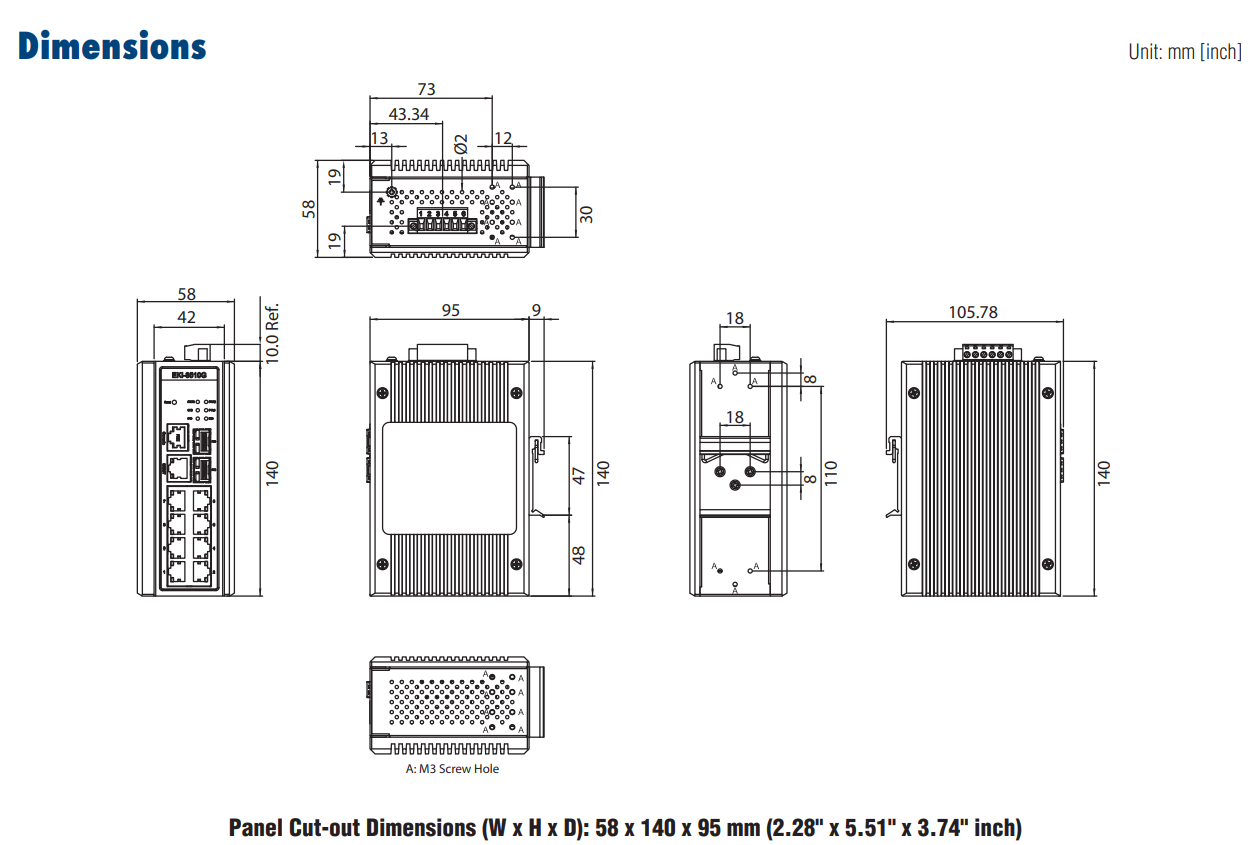

Dimensions (W x H x D)
58 x 140 x 95 mm (2.28" x 5.51" x 3.74" in.)
Weight
1.4kg
LED Indicators
System LED
PWR1, PWR2, SYS, P-Fail , P9, P10
Port LED
Link / Speed / Activity
Environment
Operating Temperature
-40 ~ 65°C (-40 ~ 149°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity
10 ~ 95% (non-condensing)
Humidity
10 ~ 95% (non-condensing)
MTBF
TBC
Power
Power Consumption
16.6W @ 48VDC (System)
Power Input
12 to 48VDC
Fault Output
1 Relay Output
Overload Current Protection
Present
Revise Polarity Protection
Present
Certification
Safety
UL 62368-1
EMI
CE, FCC Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Traffic control
NEMA TS2
Railway Track Side
EN 50121-4
