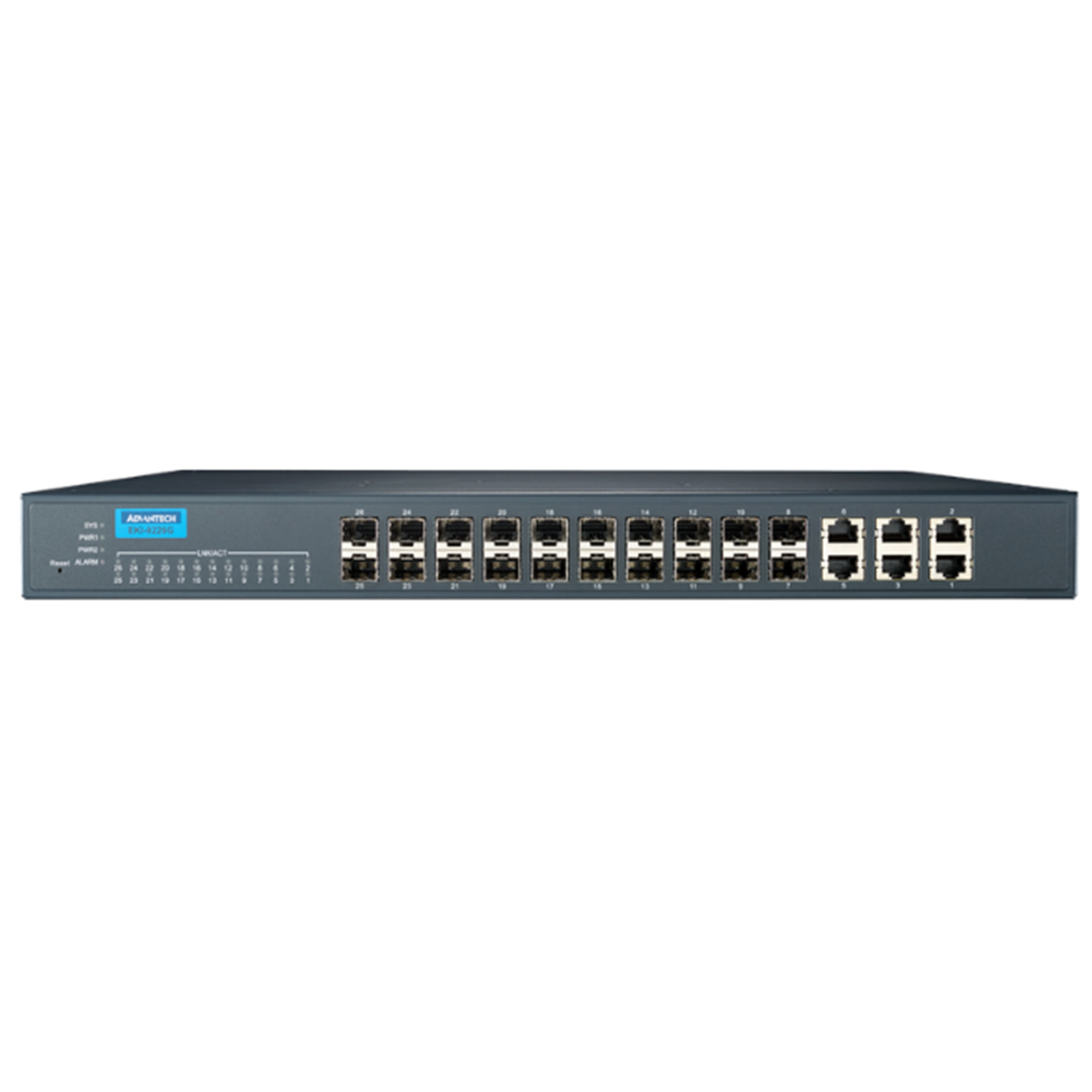

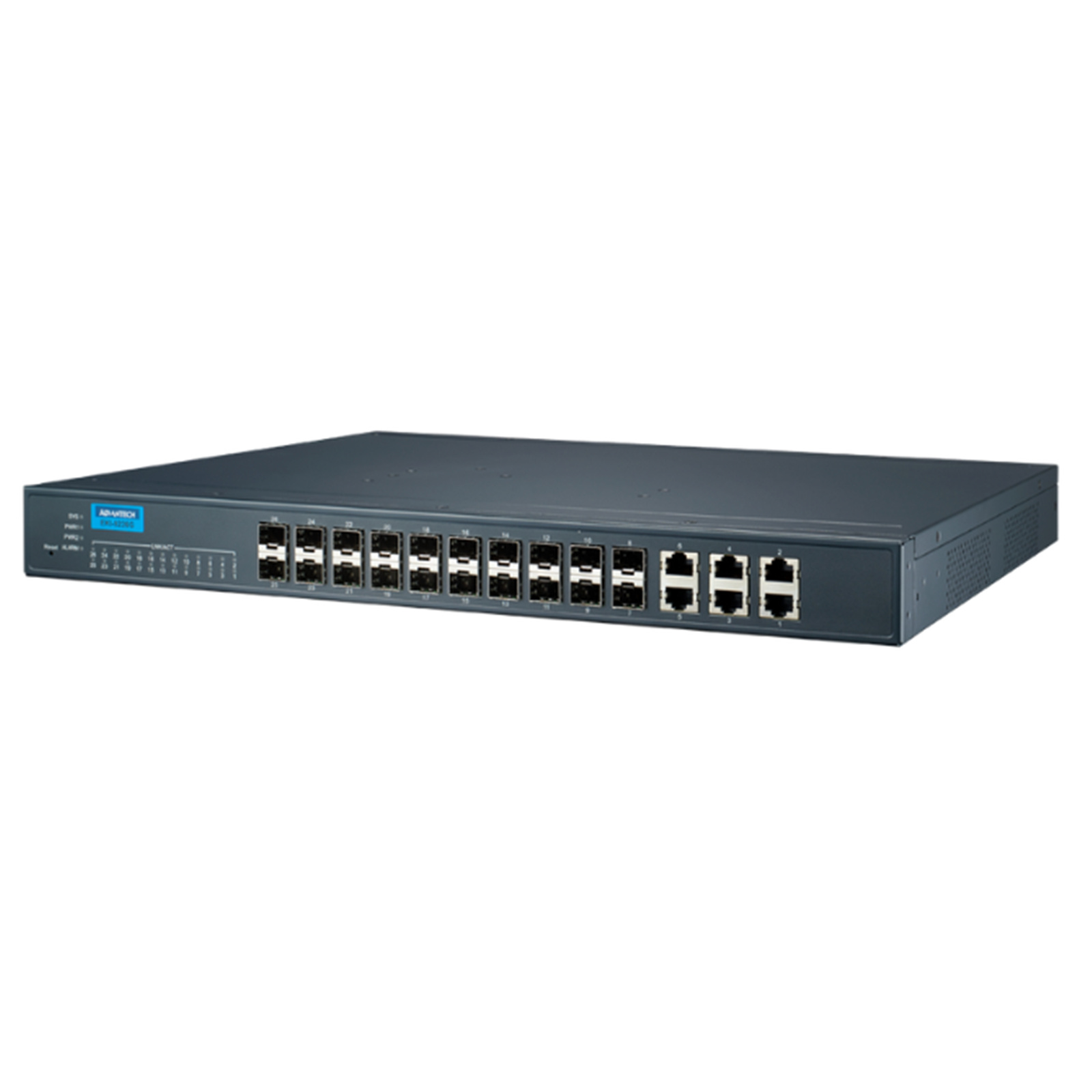

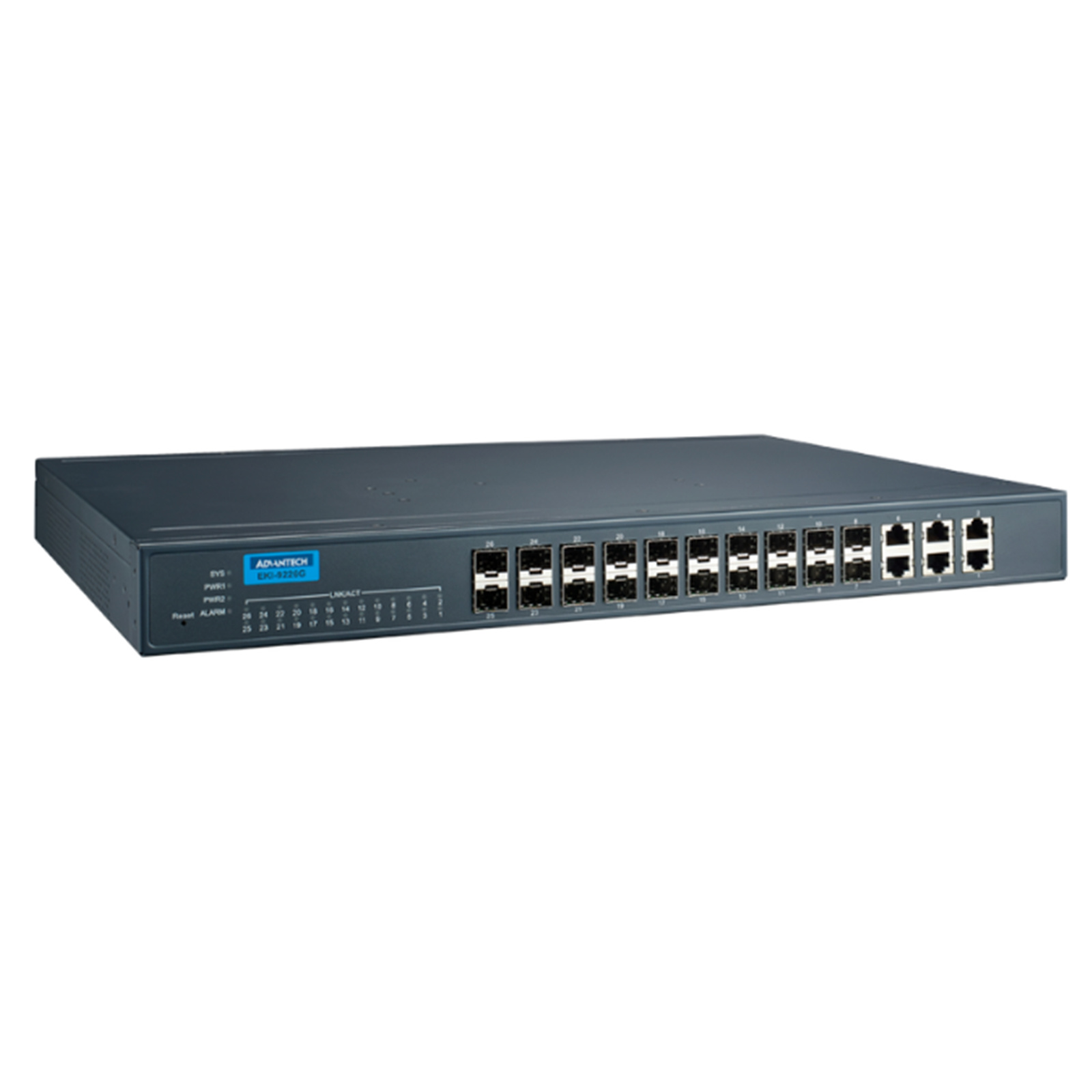

Advantech EKI-9226G-20FOI-AE 20G SFP + 6GE Managed Ethernet Switch, 90 264VAC/88 370VDC
Out of stock
Advantech EKI-9226G-20FOI-AE 20G SFP + 6GE Managed Ethernet Switch, 90 264VAC/88 370VDC
- Brand: Advantech
- MPN: EKI-9226G-20FOI-AE
- Part #: IPCAVH220627
- UPC:
- Brand: Advantech
- MPN: EKI-9226G-20FOI-AE
- Part #: IPCAVH220627
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-9226G-20FOI-AE 20G SFP + 6GE Managed Ethernet Switch, 90 264VAC/88 370VDC
- Brand: Advantech
- MPN: EKI-9226G-20FOI-AE
- Part #: IPCAVH220627

Product URL: https://www.pbtech.co.nz/product/IPCAVH220627/Advantech-EKI-9226G-20FOI-AE-20G-SFP--6GE-Managed?srsltid=AfmBOoo_qQ0bXXc6n9pCWaUWcvFPDJA-7CNgmOZRTq2JDfMKDmP5wGc2
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The EKI-9226G series (EKI-9226G-20FMI and EKI-9226G-20FOI) is designed for power substation automation applications requiring IEC 61850-3 certification. Thanks to its -40 ~ 85°C wide operating temperature, it can operate well in extremely harsh environments. Designed with 20 Gigabit SFP ports and 6 Gigabit RJ-45 ports, this series of switches provides abundant and flexible connection options. Finally, the EKI-9226G series feature dual power inputs to ensure system stability and 2 relay output for greater user flexibility.
- IEC-61850-3 and IEEE1613 certified for Power Energy.
- 20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports
- SFP socket for easy and flexible fiber expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), HTTPS, SSH, and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D), MSTP
- Dual Power input and 2 relay output
- Wide operating temperature range of -40 ~ 85°C
For more information: https://advdownload.advantech.com/productfile/PIS/EKI-9226G-20FOI/file/EKI-9226G-20FMI_20FOI_DS(062221)20210630102848.pdf
Specifications
Communications
Standard
IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
LAN
10/100/1000BASE-TX, optional 100BASE-FX, 1000BASE-SX/LX/LHX/XD/ZX/EZX
Transmission Distance
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45 cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)
Transmission Speed
Gigabit copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit fiber: Up to 1000 Mbps
Interface
Connectors
6 x RJ45 (Ethernet)
20 x SFP ports
3-pin removable screw terminal (power)
4-pin removable screw terminal (relay)
LED Indicators
10/100TX: Link/activity, duplex/collision
Gigabit copper: Link/activity, speed (1000 Mbps)
SFP: Link/activity
Console
RS-232 (RJ45)
Mechanism
Enclosure
IP30, metal shell with solid mounting kit

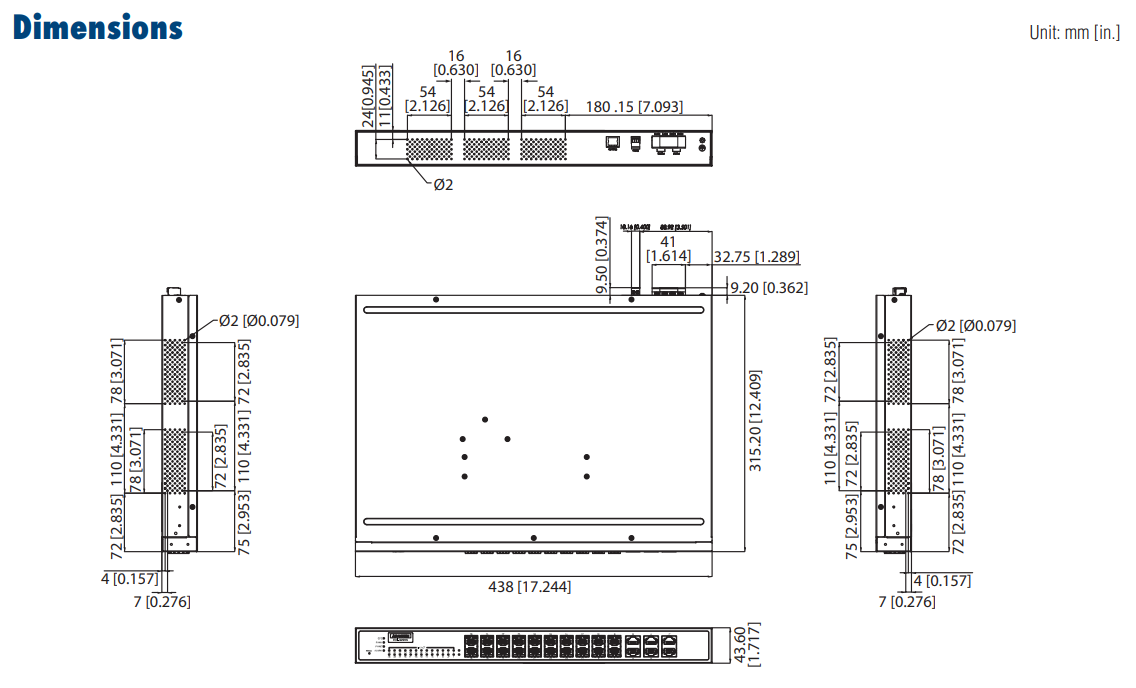

Dimensions (W x H x D)
438 x 44 x 315.2 mm
Mounting
1U 19" rack mount
Power
Power Consumption
35W
Power Input
EKI-9226G-20FOI: 90 ~ 264VAC/88 ~ 370VDC
Fault Output
2 relay outputs
Protection
Overload Current
Present
Environment
Operating Temperature
-40 ~ 85°C (-40 ~ 185°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
5 ~ 95% (non-condensing)
Storage Humidity
5 ~ 95% (non-condensing)
Certification
Safety
UL 60950
EMI
CE FCC Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN61000-6-2
EN61000-6-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Power Automation
IEC 61850-3 , IEEE1613
Railway Application
EN50121-4
L2 Features
L2 MAC Address
8K
Jumbo Frame
9 KB
VLAN Group
4093 (VLAN ID 1~4093)
VLAN
Mac-based VLAN, protocol-based VLAN,
IP subnet-based VLAN, port-based VLAN, GVRP
Port Mirroring
Per port, multi-source port
IP Multicast
IGMP snooping v1/v2/v3, MLD snooping, IGMP immediate leave
Storm Control
Broadcast, multicast, unknown unicast
Spanning Tree
IEEE 802.1D-STP, IEEE 802.1s-MSTP,
IEEE 802.1w-RSTP, X-Ring Pro
