Features

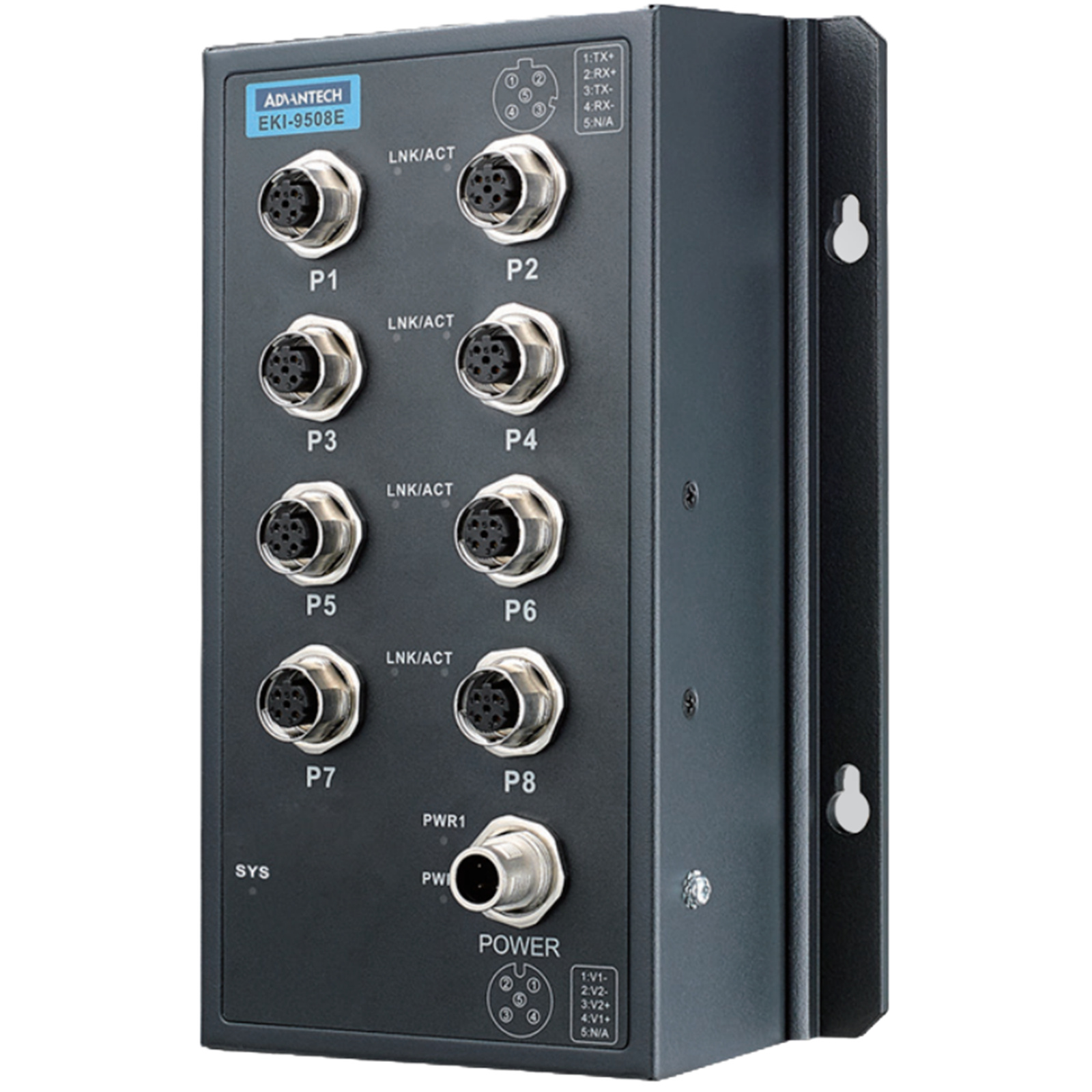

The EKI-9500 series switch is designed for railway application with rugged and high EMC performance, being suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, and thus to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9508E-L is an Ethernet switch that provides 8 x Fast Ethernet M12 D-code port interface for all kinds of Ethernet connection. EKI-9508E-L features a "slim" design which can be easy deployed with its slender size and make the network deployment easier in crowded carriage/ cabinet.
- Complies with EN50155
- 8 M12 D-coded 10/100Mbps ports
- Power input
EKI-9508E-L: 24/48 VDC
- Operating Voltage
EKI-9508E-L: 16.8~60 VDC
- M12 connector with IP50 protection
- Operating temperature range -40 ~ 70°C
Specifications
Model
EKI-9508E-L-AE
Layer 2 switch, 8 x M12 fast Ethernet, 24/48 VDC dual power input
Interface
I/O Port
8 x 10/100BASE-T M12 D-coded
Power Connector
M12 A-coded
Physical
Enclosure
Metal
Protection Class
IP50
Installation
Wall mount

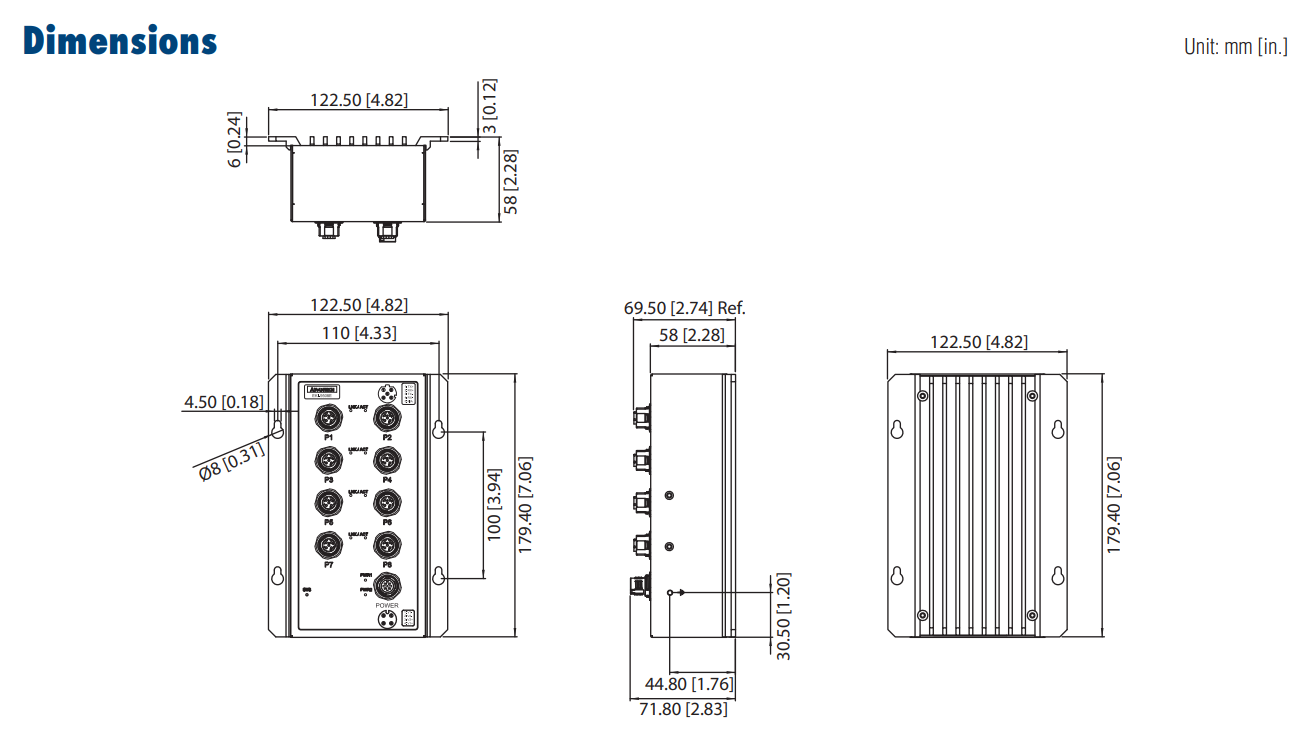

Dimensions (W x H x D)
122.5 x 179.4 x 71.8 mm
Weight
1.3kg
LED Display
System LEDs
PWR1, PWR2, SYS
Environment
Operating Temperature
-40 ~ 70°C
Storage Temperature
-40 ~ 85°C
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Power
Power Consumption
~5 W (system)
Power Input
EKI-9508E-L: 24/48 VDC
Operating Voltage
EKI-9508E-L: 16.8~60 VDC
Dual inputs Supports Overload Current Protection
Supports Reverse Polarity Protection
Certification
EMI
FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (surge), EN61000-4-6 (CS)
Shock
IEC 61373
Freefall
IEC 60068-2-31
Vibration
IEC 61373
Rail Traffic
EN50155; EN50121-3-2
L2 Features
L2 MAC Address
8K
Jumbo Frame
9 KB
