Features

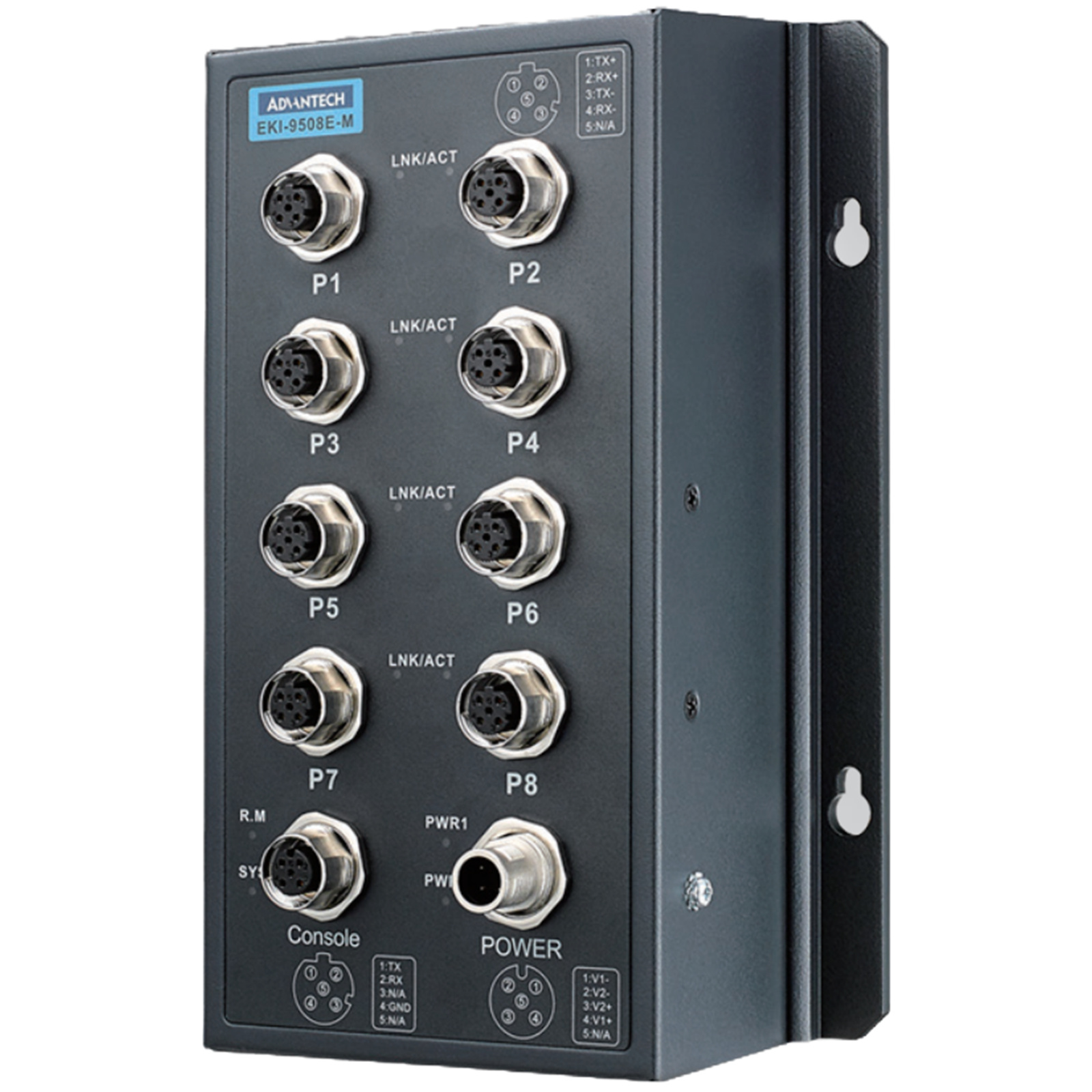

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9508E-MH is a Managed Ethernet switch, it provides 8 x Fast Ethernet M12 D-code interface for all kinds of Ethernet connection. EKI-9508E-MH features a "slim" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.
- Complies with EN50155
- 8 port M12 D-coded 10/100Mbps ports
- Power input
EKI-9508E-MH: 72/96/110 VDC
- Operating Voltage
EKI-9508E-MH: 50.4~137.5 VDC
- X-Ring Pro supports rapid and predictable convergence
- M12 connector with IP50 protection
- Operating temperature of -40 ~ 70°C
Specifications
Model
EKI-9508E-MH-AE
Layer 2 managed switch, 8 x M12 fast Ethernet, 72/96/110 VDC dual power input
Interface
I/O Port
8 x 10/100BASE-T M12 D-coded
Console Port
M12 A-coded
Power Connector
M12 A-coded
Physical
Enclosure
Metal
Protection Class
IP50
Installation
Wall mount
Dimensions (W x H x D)
122.5 x 179.4 x 71.8 mm
Weight
1.3kg
LED Display
System LEDs
PWR1, PWR2, R.M., SYS
Environment
Operating Temperature
-40 ~ 70°C
Storage Temperature
-40 ~ 85°C
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Power
Power Consumption
~5 W (system)
Power Input
EKI-9508E-MH: 72/96/110 VDC
Operating Voltage
EKI-9508E-MH: 50.4~137.5 VDC
Dual inputs Supports Overload Current Protection
Supports Reverse Polarity Protection
Certification
EMI
FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (surge), EN61000-4-6 (CS)
Shock
IEC 61373
Freefall
IEC 60068-2-31
Vibration
IEC 61373
Rail Traffic
EN 50155; EN50121-3-2
L2 Features
L2 MAC Address
8K
Jumbo Frame
9 KB
VLAN Group
4K (VLAN ID 1~4094)
VLAN
MAC-based VLAN, Protocol-based VLAN, IP subnet-based VLAN, port-based VLAN, Q-in-Q (VLAN stacking), GVRP
Port Mirroring
Per port, multi-source port
IP Multicast
IGMP snooping v1/v2/v3, MLD snooping, IGMP immediate leave
Storm Control
Broadcast, multicast, unknown unicast
Spanning Tree
IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro
QoS
Priority Queue Scheduling
SWW, SP
Class of Service
IEEE 802.1p-based CoS, IP TOS, DSCP-based CoS
Rate Limiting
Egress rate limit
Link Aggregation
IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking
Security
Port Security
Static, dynamic
Authentication
802.1x (port-based, MAC-based), RADIUS, TACACS+
ACL
1K rules
Advanced Security
IP source guard, ARP inspection, DHCP snooping
Management
DHCP
Client, server, relay, option 66/67/82
Access
SNMP v1/v2c/v3, WEB, Telnet, RMON, standard MIB, private MIB
Security Access
SSH 2.0, SSL
Software Upgrade
TFTP, HTTP, dual image
NTP
NTP client
IPv6 Features
IPv4/IPv
IPv4/IPv6 dual protocol stack
IPv6
HTTP, SSH, Telnet, TFTP
SNTP, SMTP
