Features

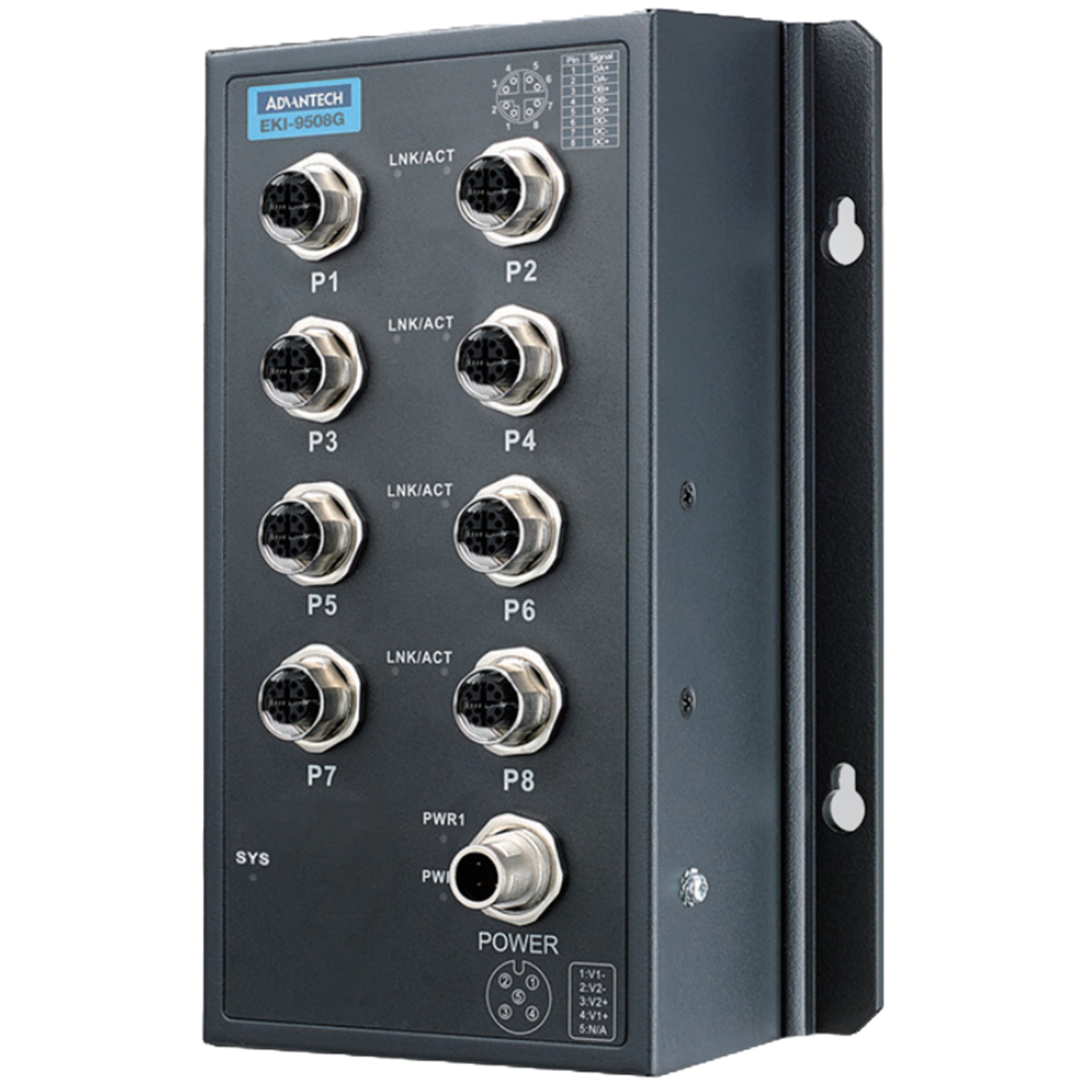

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9508G-H is a Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface. EKI-9508G-H features a "slim" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.
- Complies with EN50155
- 8 port M12 X-coded 10/100/1000Mbps ports
- Power input
EKI-9508G-H: 72/96/110 VDC
- Operating Voltage
EKI-9508G-H: 50.4~137.5 VDC
- M12 connector with IP50 protection
- Operating temperature of -40 ~ 70°C
Specifications
Model
EKI-9508G-H-AE
Layer 2 Switch, 8 x M12 Gigabit Ethernet, 72/96/110 VDC dual power input
Interface
I/O Port
8 x 10/100/1000 BASE-T M12 X-Coded
Power Connector
M12 A-Coded
Physical
Enclosure
Metal Shell
Protection Class
IP50
Installation
Wall Mount

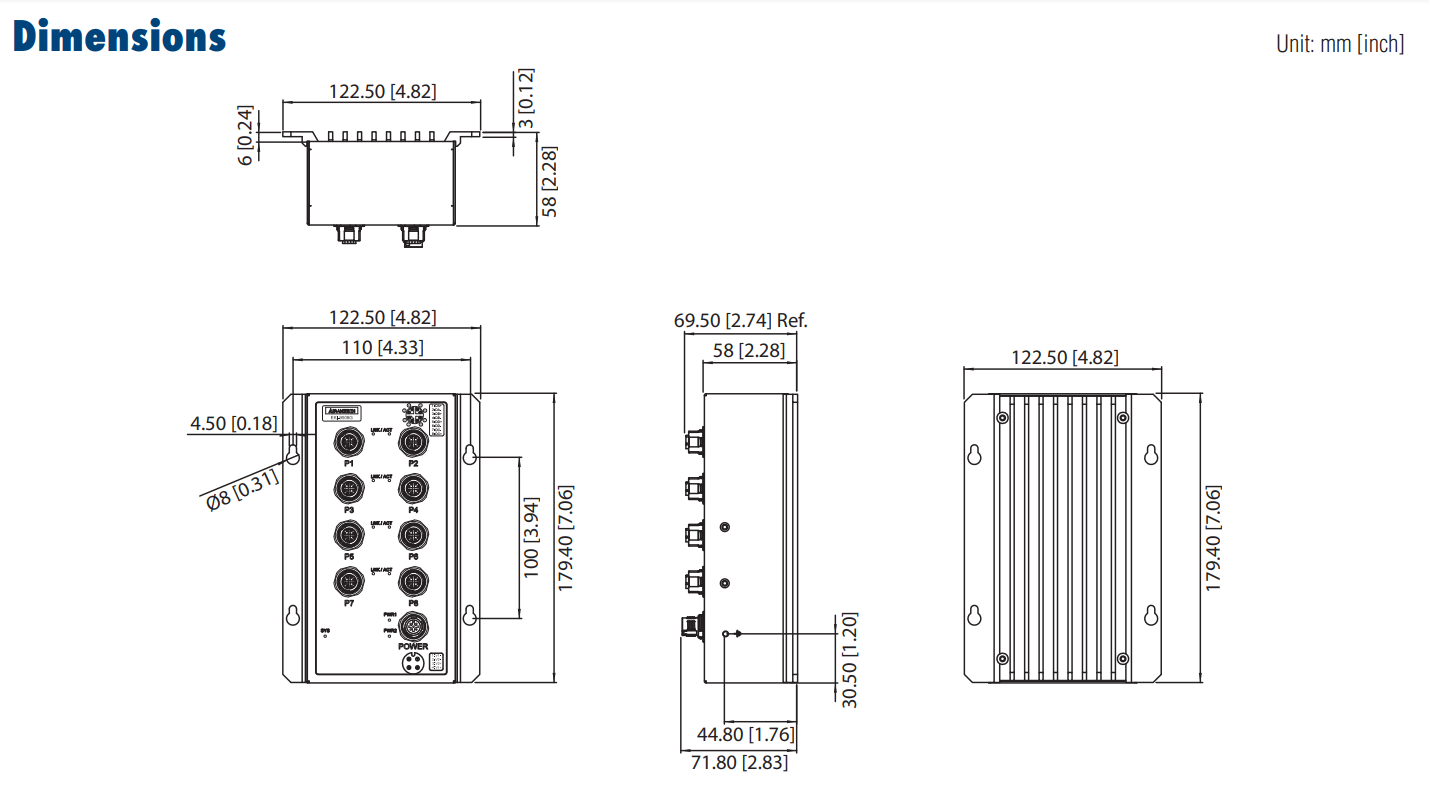

Dimensions (W x H x D)
122.5 x 179.4 x 71.8 mm
Weight
1.3 kg
LED Display
System LEDs
PWR1, PWR2, SYS
Environment
Operating Temperature
-40 ~ 70 °C
Storage Temperature
-40 ~ 85 °C
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Power
Power Consumption
~ 5 Watts (System)
Power Input
EKI-9508G-H: 72/96/110 VDC
Operating Voltage
EKI-9508G-H: 50.4~137.5 VDC
Dual inputs Supports Overload Current Protection
Supports Reverse Polarity Protection
Certification
EMI
FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (surge), EN61000-4-6 (CS)
Shock
IEC 61373
Freefall
IEC 60068-2-31
Vibration
IEC 61373
Rail Traffic
EN 50155; EN50121-3-2
L2 Features
L2 MAC Address
8K
Jumbo Frame
9 KB
