Advantech EKI-9510E-2GL-AE EN50155 Unmanaged Switch with 8FE+2GE bypass, 24-48 VDC
Out of stock
Advantech EKI-9510E-2GL-AE EN50155 Unmanaged Switch with 8FE+2GE bypass, 24-48 VDC
- Brand: Advantech
- MPN: EKI-9510E-2GL-AE
- Part #: IPCAVH220647
- UPC:
- Brand: Advantech
- MPN: EKI-9510E-2GL-AE
- Part #: IPCAVH220647
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-9510E-2GL-AE EN50155 Unmanaged Switch with 8FE+2GE bypass, 24-48 VDC
- Brand: Advantech
- MPN: EKI-9510E-2GL-AE
- Part #: IPCAVH220647

Product URL: https://www.pbtech.co.nz/product/IPCAVH220647/Advantech-EKI-9510E-2GL-AE-EN50155-Unmanaged-Switc
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

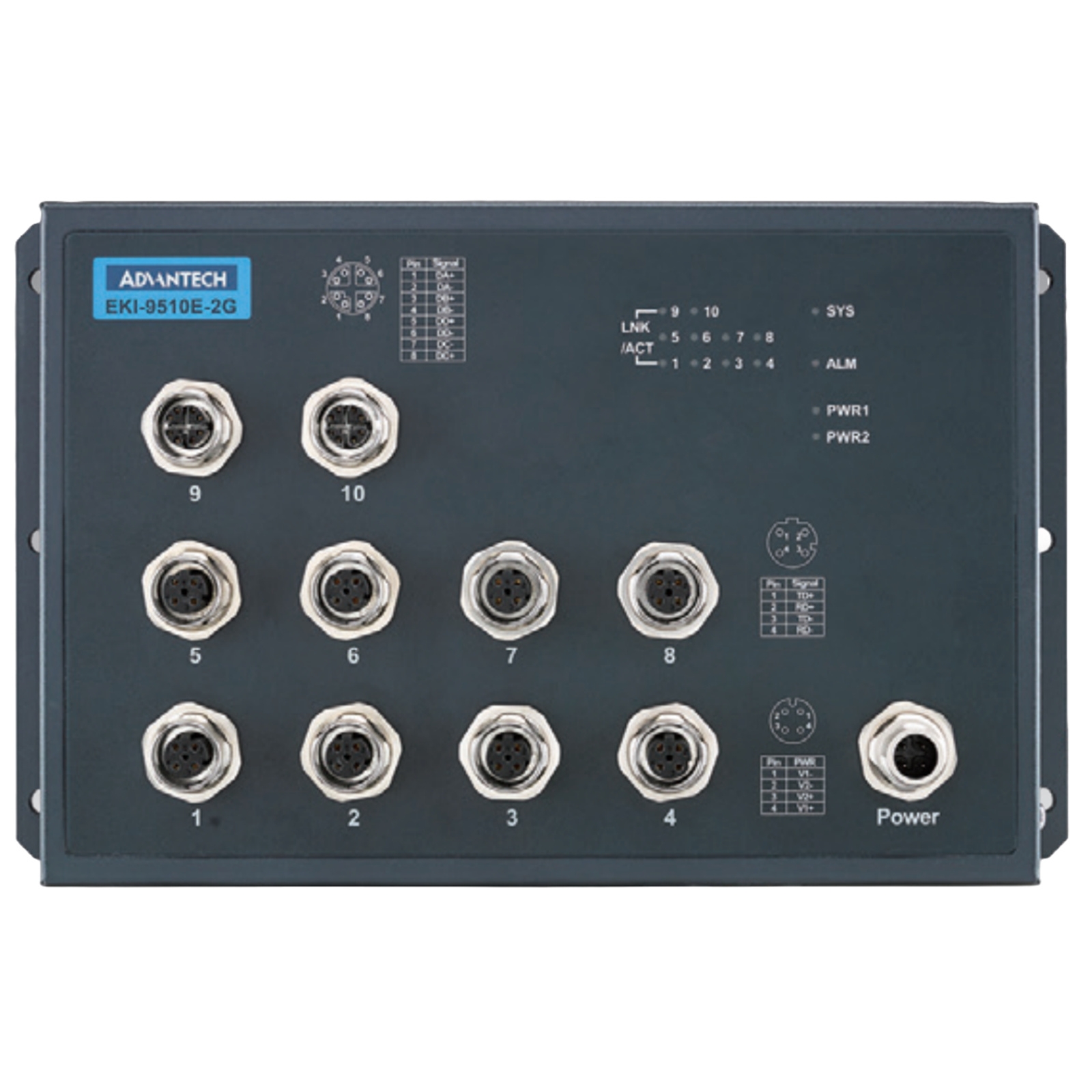

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9510E-2GH & EKI-9510E-2GL is a Ethernet switch, it provides 8 x Fast Ethernet M12 D-code interface. It also provides 2 x Gigabit Ethernet M12 X-code interface with Bypass function to increase the reliability of the network. EKI-9510E-2GH/ L features a "flat" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.
- Complies with EN50155
- 8 x M12 D-Coded 10/100Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
- Power Input
EKI-9510E-2GL: 24/48 VDC
- Operating Voltage
EKI-9510E-2GL: 16.8~60 VDC
- M12 connector with IP40 protection
Specifications
Model
EKI-9510E-2GL-AE
8 x M12 D-Coded + 2 x M12 X-Coded Unmanaged Ethernet Switch, 24/48VDC dual power input
Interface
I/O
8 x 10/100Mbps M12 D-Coded + 2 x 10/100/1000Mbps M12 X-Coded with Bypass function
Power Connector
M12 A-Coded
Physical
Enclosure
Aluminum Shell
Protection Class
IP40
Installation
Wall Mount

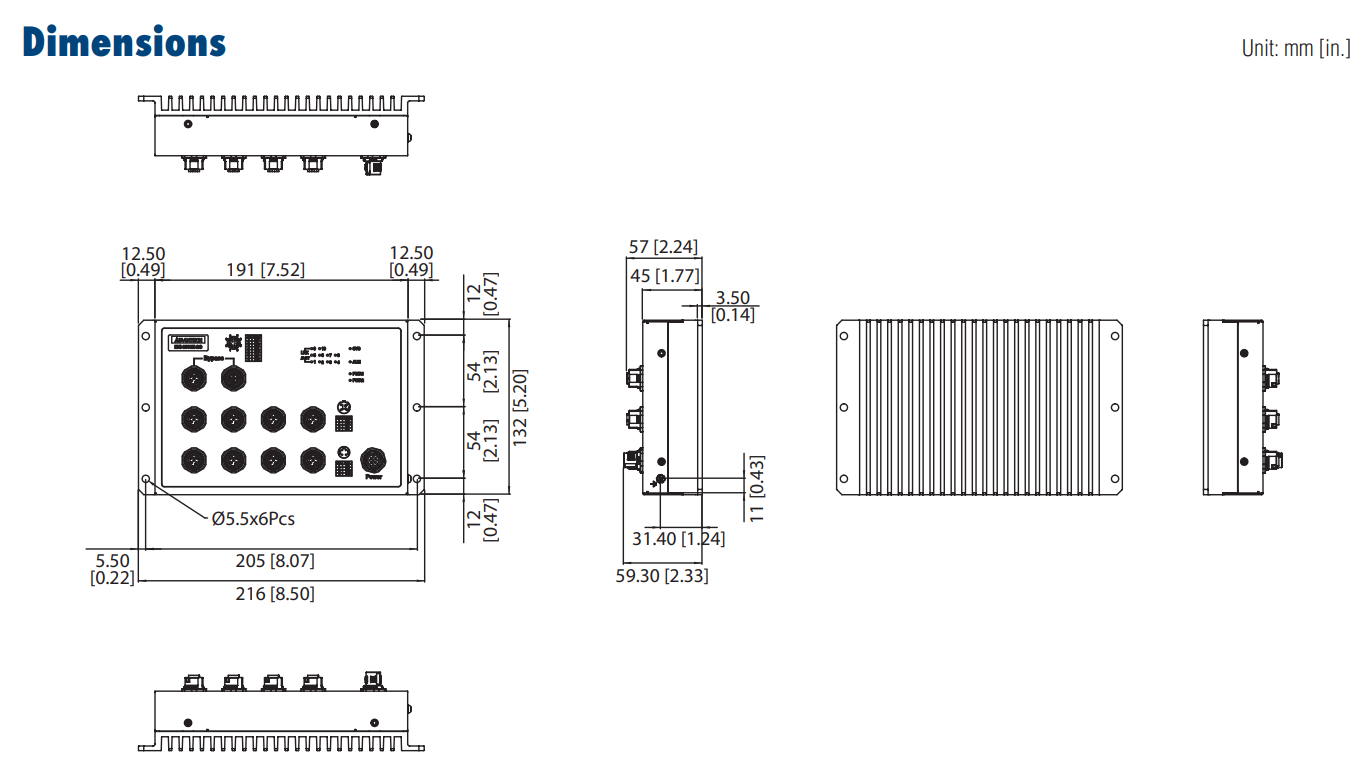

Dimensions (W x H x D)
216 x 132 x 59.3 mm
Weight
1.5 kg
LED Display
System LEDs
PWR1, PWR2, SYS, Alarm
Environment
Operating Temperature
-40 ~ 70 °C
Storage Temperature
-40 ~ 85 °C
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Power
Power Consumption
10 Watts
Power Input
EKI-9510E-2GL: 24/48 VDC
Operating Voltage
EKI-9510E-2GL: 16.8~60 VDC
Dual inputs Supports Overload Current
Protection Supports Reverse Polarity Protection
Certification
EMI
FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (surge), EN61000-4-6 (CS)
Shock
IEC 61373
Vibration
IEC 61373
Rail Traffic
EN 50155; EN50121-3-2
L2 Features
L2 MAC Address
8K
Jumbo Frame
9 KB
