Features

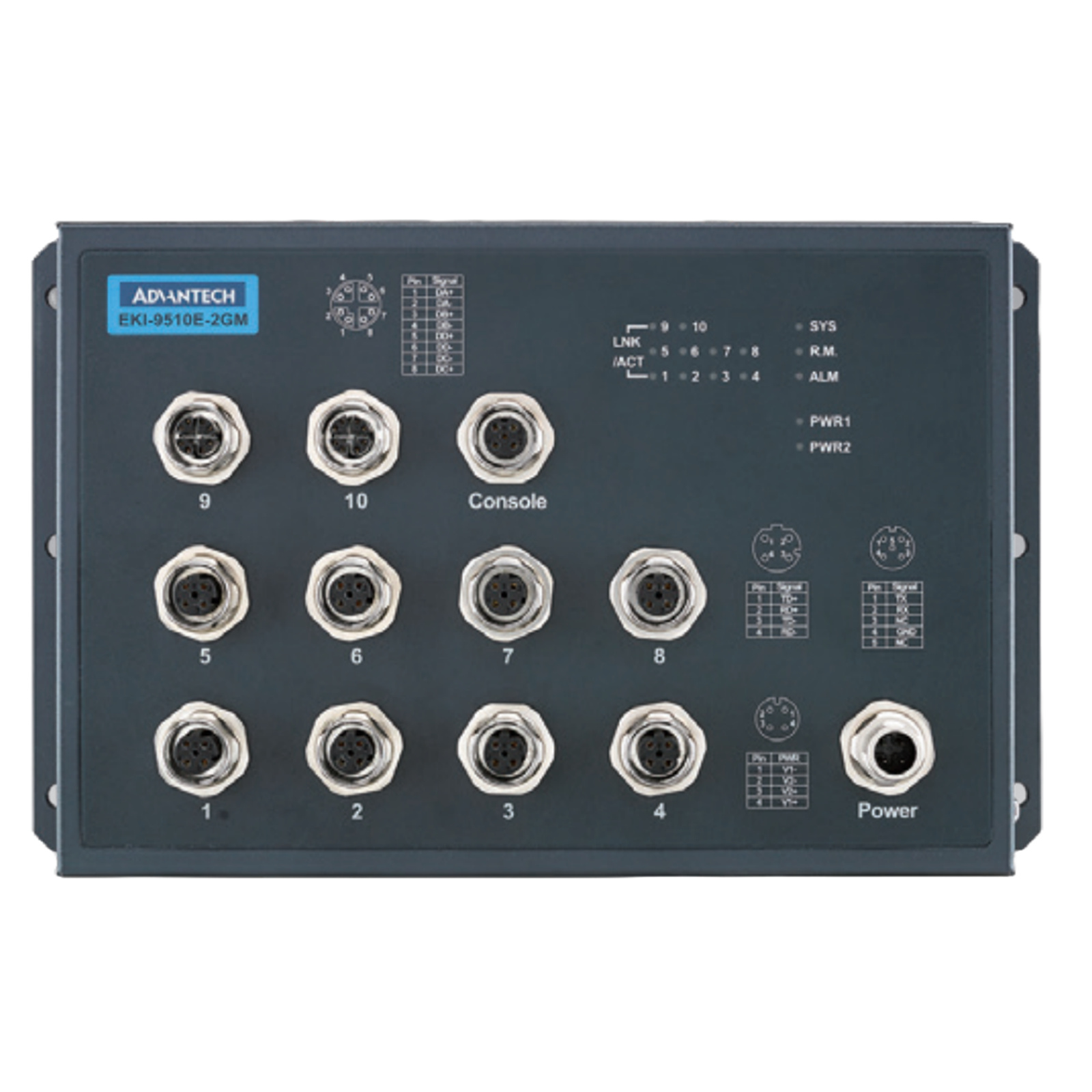

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9510E-2GMH is a Managed Ethernet switch, it provides 8 x Fast Ethernet M12 D-code interface. It also provides 2 x Gigabit Ethernet M12 X-code interface with Bypass function, to increase the reliability of the network. EKI-9510E-2GMH features a "flat" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/cabinet.
- Complies with EN50155
- 8 x M12 D-Coded 10/100Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
- Power Input
EKI-9510E-2GMH: 72/96/110 VDC
- Operating Voltage
EKI-9510E-2GMH: 50.4~137.5 VDC
- X-Ring Pro supports rapid and predictable convergence
- M12 connector with IP40 protection
Specifications
Model
EKI-9510E-2GMH-AE
8 x M12 D-Coded + 2 x M12 X-Coded Managed Ethernet Switch, 72/96/110VDC dual power input
Interface
I/O
8 x M12 D-Coded 10/100Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
Console port
M12 A-Coded
Power Connector
M12 A-Coded
Physical
Enclosure
Aluminum Shell
Protection Class
IP40
Installation
Wall Mount

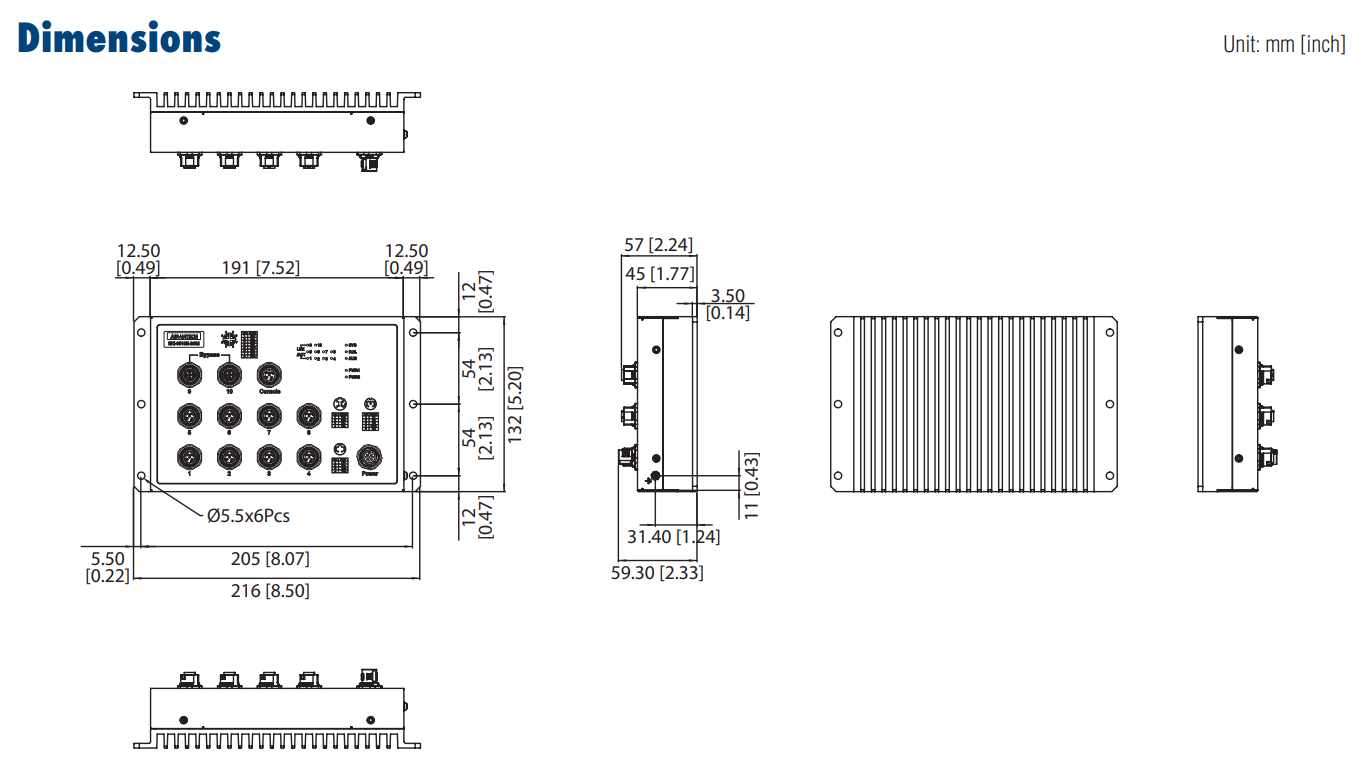

Dimensions (W x H x D)
216 x 132 x 59.3 mm
Weight
1.5 kg
LED Display
System LEDs
PWR1, PWR2, SYS,R.M., Alarm
Environment
Operating Temperature
-40 ~ 70 °C
Storage Temperature
-40 ~ 85 °C
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Power
Power Consumption
10 Watts
Power Input
EKI-9510E-2GMH: 72/96/110 VDC
Operating Voltage
EKI-9510E-2GMH: 50.4~137.5 VDC
Dual inputs Supports Overload Current
Protection Supports Reverse Polarity Protection
Certification
EMI
FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (surge), EN61000-4-6 (CS)
Shock
IEC 61373
Vibration
IEC 61373
Rail Traffic
EN 50155; EN50121-3-2
L2 Features
L2 MAC Address
8K
Jumbo Frame
9 KB
VLAN Group
256 (VLAN ID 1~4093)
VLAN
802.1Q VLAN, GVRP
Port Mirroring
Per port, multi-source port
IP Multicast
IGMP snooping v1/v2/v3, MLD snooping, IGMP immediate leave
Storm Control
Broadcast, multicast, unknown unicast
Spanning Tree
IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro
QoS
Priority Queue
Scheduling WRR (Weighted Round Robin), SP (Strict Priority)
Class of Service
IEEE 802.1p-based CoS, IP TOS, DSCP-based CoS
Rate Limiting
Egress rate limit
Link Aggregation
IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking
Security
Port Security
Static, dynamic
Authentication
802.1x (port-based, MAC-based), RADIUS, TACACS+
Advanced Security
IP source guard
Management
DHCP
Client, server, option 66/67
Access
SNMP v1/v2c/v3, WEB, Telnet, RMON, standard MIB, private MIB
Security Access
SSH 2.0, SSL
Software Upgrade
TFTP, HTTP, dual image
NTP
NTP server/client
