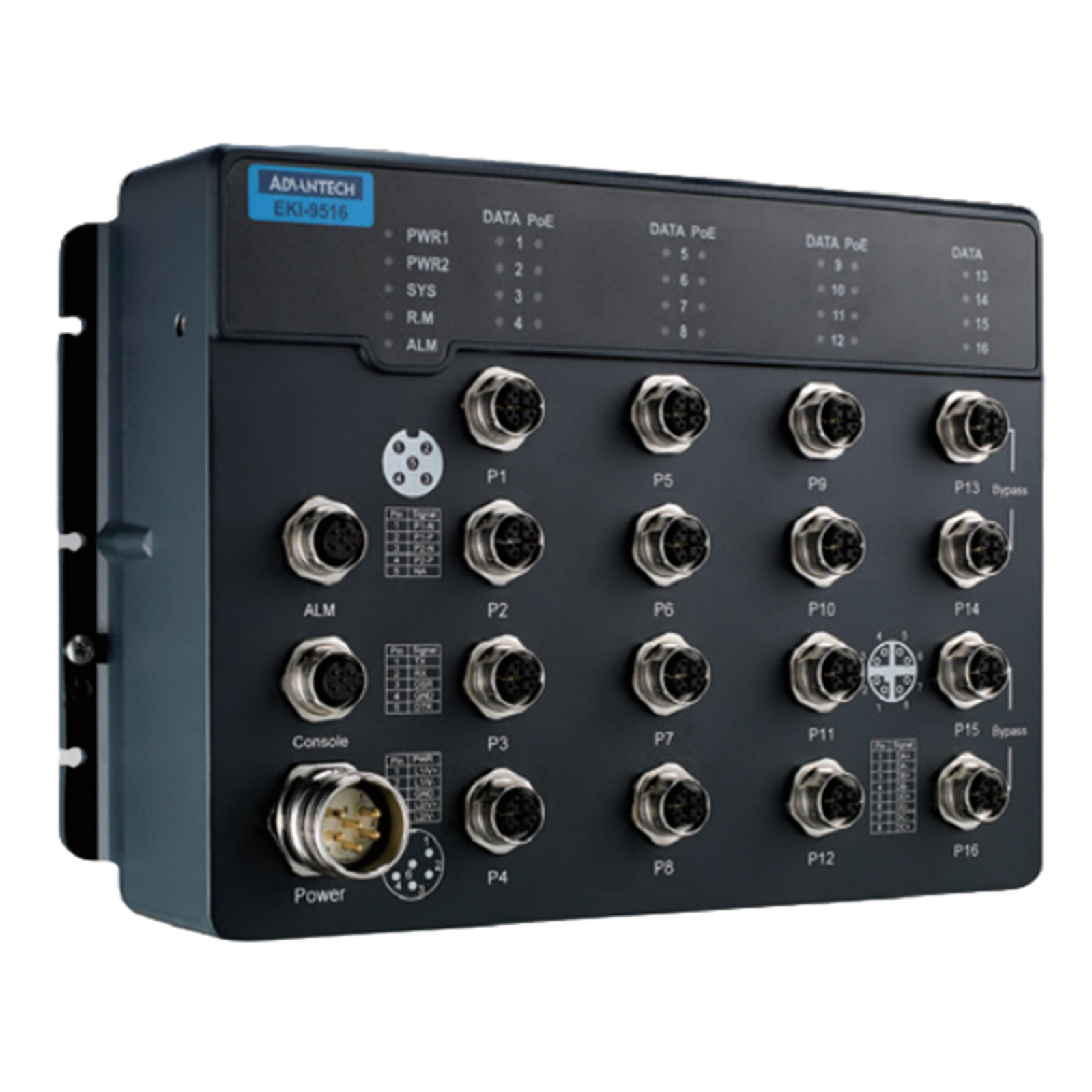

Advantech EKI-9516E-8GMPX-AE EN50155 Managed PoE Ethernet Switch with 8FE+8GE, 24-110VDC

PB Tech price
PB Tech price
$ 4,707 .50
 +GST
$ 5,413 .62
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-9516E-8GMPX-AE EN50155 Managed PoE Ethernet Switch with 8FE+8GE, 24-110VDC

  • Brand: Advantech
  • MPN: EKI-9516E-8GMPX-AE
  • Part #: IPCAVH220678
  • UPC:
PB Tech price
$ 4,707 .50 $ 5,413 .62
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

The EKI-9516 series Ethernet switch is designed for railway applications with rugged housing and high EMC performance. The EKI-9516 series is a suitable networking solution for rolling stock and wayside applications. It provides M12 connectors for Ethernet/ console/ relay/ power-input (M23) connections to ensure tight and robust connectivity, guarantees reliable operation against environmental disturbances, and complies with IEC61373 vibration and shock for rolling stock applications. The portfolio of the EKI-9516 series provides different options, catering to various user requirements. It provides 16-ports on different port configuration (please refer to the ordering information). With IEEE802.3af/ at PoE functionality (PoE model only), it provides up to a 150 watt power budget (depends on different input voltage, please refer to PoE Total Power Budget) for P.D. devices (such as camera, IP-phone and wireless access point). The EKI-9516 series features IP67 housing and ample pitch connectors that can easily connect/ disconnect cables without interference; reducing human errors within the harsh and narrow industrial environments.

- M12 connector with IP67 rugged housing
- Complies with EN50155 & EN50121-3-2
- Up to 12 PoE ports which support IEEE802.3af/at
- Wide nominal power input range: 24~110VDC
- Operating power input range: 16.8~137.5VDC
- Supports X-Ring Pro for rapid and predictable convergence
- Supports IXM for fast and easy maintenance
- Supports N-Key for quick configuration and backup
- Operating temperature: -40 ~ 75°C
- Provides Fast Ethernet & Full Giga Ethernet solution

Specifications

Model

EKI-9516E-4GMPW-AE

10/100BASE-T with PoE Function

8 (P1-8)

10/100/1000BASE-T

4 (P13-16)

10/100/1000BASE-T with PoE Function

4 (P9-12)

Interface

Ethernet Port

M12 4pin D-coded Female for Fast Ethernet (10/100BASE-T)
M12 8pin X-coded Female for Giga Ethernet (10/100/1000BASE-T)

Console Port

M12 5pin A-coded Female

Relay Port

M12 5pin A-coded Female with 2 relay outputs of 1A @ 24VDC

Power Connector

M23 connector

Physical

Enclosure

Aluminum Die-casting

Protection Class

IP67

Installation

Wall Mount

Dimension

254 x 174 x 64.5 mm (W x H x D)

LED Display

System LED

PWR1, PWR2, SYS, Alarm, R.M.

Port LED

Data, PoE (For PoE model only)

Environment

Operating Temperature

-40~75°C (-40~167°F)

Storage Temperature

-40~85°C (-40~185°F)

Humidity

5~95% (non-condensing)

Power

Power Consumption

17 Watts (System)

Nominal Input Voltage

24/28/36/48/72/96/110VDC

Operating Input range

16.8-137.5VDC

Power Interruptions

Class S2 (10ms) for system and PoE (system only @ 24VDC input)

Certification

Safety

EN62368-1

EMC

CE, EN55011/ 55032/ 55024; FCC Part 15 Subpart B class A

EMS

EN61000-4-2(ESD); EN61000-4-3(RS); EN61000-4-4(EFT); EN61000-4-5(Surge); EN61000-4-6(CS)

Shock

EN 61373

Vibration

EN 61373

Railway

EN50155, EN50121-2-3, 50121-1

Fire Protection

EN45545-2

Other

EN61000-6-4, EN61000-6-2

L2 Feature

L2 MAC Address

8K

Jumbo Frame

9KB

VLAN Group

256 (VLAN ID 1~4094)

VLAN Group

802.1Q, GVRP, GMRP, 802.1ad VLAN stacking

Port Mirroring

Per port, Multi-source port (4 Mirroring sessions Max.)

IP Multicast

IGMP snooping v1/v2/v3, MLD snooping(256 Multicast Entries Max.)

Storm Control

Broadcast, Multicast, Unknown Unicast

Redundant Protocol

IEEE 802.1D(STP), IEEE802.1s(MSTP), IEEE802.1w(RSTP), X-Ring Pro, X-Chain, Dual homing, Coupling, ERPS G.8032

Quality of Service

QoS Function

Scheduling(STRICT/ WRR), Port Priority, 802.1p, DSCP, IP TOS/ precedence

Rate Limit

Ingress/ Egrss Rate limit

Max Priority Queues

8

Security

Port Security

Static MAC, MAC violation notice, port-based loop detection

Authentication

802.1x (Port-based, MAC-based), RADIUS, TACACS+

Security Pack

IP source guard, DoS attack prevention, DHCP snooping, ARP spoofing prevention, L2/ L3/ L4 ACL (Access Control List)

Management Feature

DHCP

Clien, Server, Option66/67/82, Port IP-Binding

Access

SNMP v1/v2c/v3, WEB, Telnet, Console, RMON, Standard MIB, Private MIB

Security Access

SSH (v2), SSL (v2), HTTPs

Software Upgrade

TFTP, HTTP, Dual Image

NTP

NTP server/ client, SNTP

Other

IPv4, IPv6, Modbus TCP, IXM, N-Key for config file backup/ restore

Manufacturer Part No:
EKI-9516E-8GMPX-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220678
Product Model:
EKI-9516E-8GMPX-AE
Warranty: 12 months *
