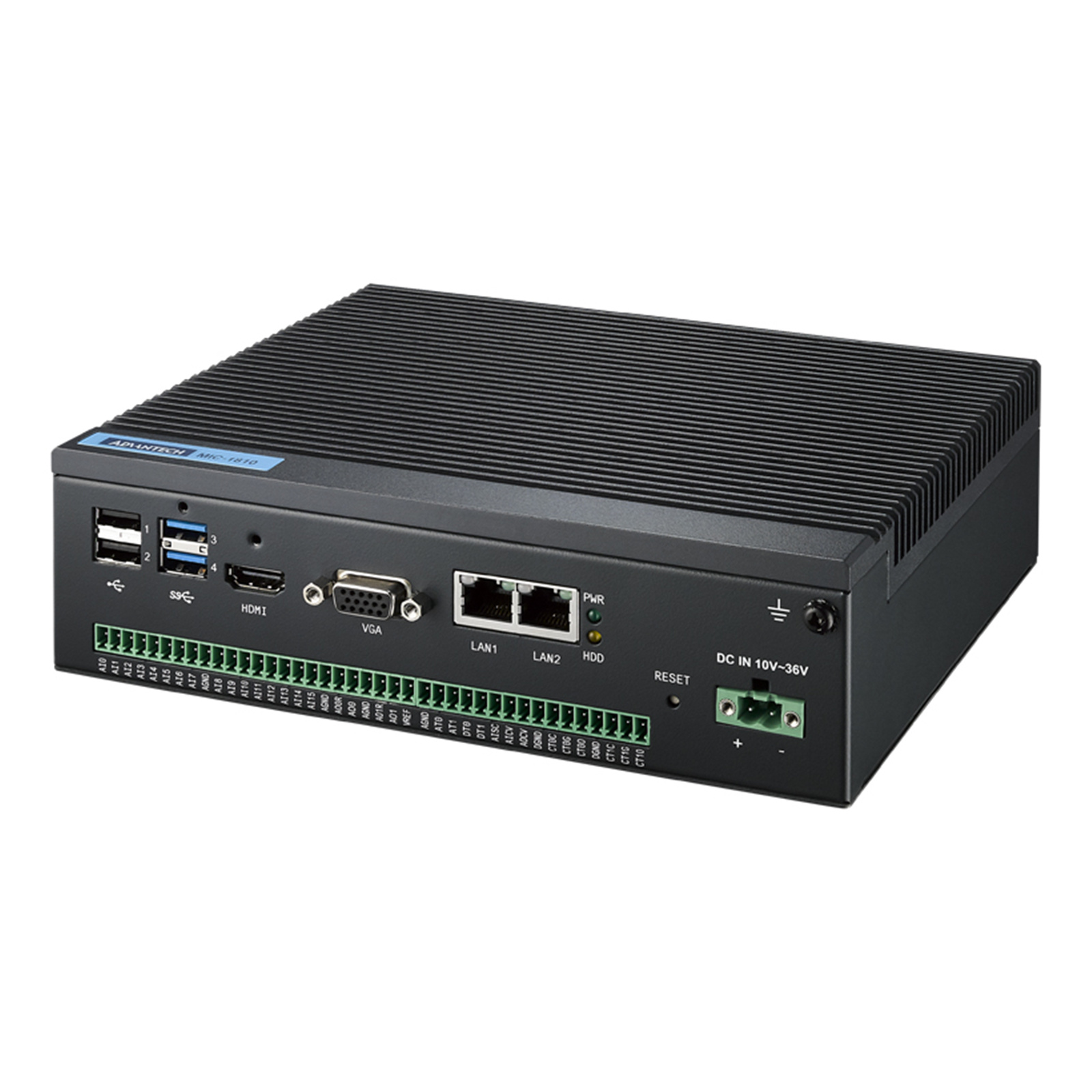

Advantech MIC-1810-U0A1E 12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel Core i3 /Celeron Processer

PB Tech price
PB Tech price
$ 2,523 .50
 +GST
$ 2,902 .02
 inc GST
$2,523.50  +GST
$2,902.02

Advantech MIC-1810-U0A1E 12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel Core i3 /Celeron Processer

  • Brand: Advantech
  • MPN: MIC-1810-U0A1E
  • Part #: IPCAVH220947
  • UPC:
PB Tech price
$ 2,523 .50 $ 2,902 .02
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 14 Oct When will I receive it?
$2,523.50  +GST
$2,902.02

Finance from $25.95 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel® Core™ i3*/Celeron® Processer

MIC-1810 is a stand-alone automation controller featuring an integrated DAQ module and signal conditioning to provide digital I/O, analog I/O, and counter functions. This applicationready controller also supports serial communication ports and several other networking interfaces to enable seamless integration and rapid system development.

- 16x analog inputs, up to 800 kS/s, 12-bit resolution
- 2x analog outputs, up to 500 kS/s, 12-bit resolution
- Support for digital trigger and analog trigger
- 16x Isolated digital input, 8x isolated digital output
- 2x 32-bit programmable counter/timers
- Onboard FIFO memory (4,096 samples)
- 2x RS-232/422/485 ports
- 2x 10/100/1000 Base-T RJ-45 LAN ports
- 2 x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported

Specifications

Analog Input

Channels

16-ch single ended, 8-ch differential

Resolution

12 bits

Sample Rate

Single channel: 800 kS/s max.;
Multiple channels: 500 kS/s max.
Note: The sampling rate of each channel is influenced by the number of used channels.
For example, if 4 channels are used, the sampling rate will be 500k/4 = 125 kS/s per channel.

Trigger Reference

Digital and analog triggers

Trigger Mode

Start, Delayed Start
Stop, Delayed Stop

FIFO Size

4,096 samples

Overvoltage Protection

30 Vp-p

Input Impedance

1 GO

Sampling Modes

Software and external clock

Input Range

Software programmable

Analog Output

Channels

2

Resolution

12 bits

Sample Rate

500 kS/s max.

Output Range

Software programmable

Isolated Digital Input

?Channels

16

Input Voltage

Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)

Interrupt Capable

Ch. 2 (IDI0 & IDI8)

Isolation Protection

2,500 V DC

Opto-Isolator Response

100 µs

Input Resistance

3.2 kO @ 1 W

Isolated Digital Output

?Channels

8

Output Type

Sink (NPN)

Output Voltage

5~40VDC

Sink Current

350mA max./channel @ 25°C,
250mA max./channel @ 60°C

Isolation Protection

2,500 V DC

Opto-Isolator Response

100 µs

Counter

?Channels

2

Resolution

32 bits

Compatibility

5 V/TTL

Max. Input Frequency

10 MHz

Pulse Generation

Yes

Timebase Stability

50 ppm

General

?Dimensions (W x H x D)

200 x 58 x 156 mm (7.87" x 2.28" x 6.14")

?Power Consumption

Typ. 11W @ 24V, Max. 31.7W @24V

?Power Requirements

10 ~ 36 VDC

?Weight

2.4 kg (typical)

?OS Support

Up to Windows 10 / Linux

System Hardware

?CPU

Intel® Celeron® 3955U processer, 2.0 GHz
(MIC-1810-U0A1E)
Intel® Core™ i3-6100U processor, 2.3 GHz
(MIC-1810-U3A1E*)

Memory

4G SODIMM DDR3-1600 (Max. 16GB expansion available)

Indicators

LEDs for Power, IDE and LAN (Active, Status)

USB

USB 2.0 *2, USB 3.0 *2

Storage

1 x 2.5" HDD/SSD, installation subject to ordered configuration

Expansion

Mini PCIe full size *1 (iDoor)

Environment

?Storage Humidity

5 ~ 95% RH, non-condensing

Operating Temperature

 -20 ~ 60 °C (-4 ~140 °F) @ 5 ~ 85% RH with 0.7m/s air flow

?Storage Temperature

-20 ~ 80 °C (-4 ~ 176 °F)

Manufacturer Part No:
MIC-1810-U0A1E
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220947
Product Model:
MIC-1810-U0A1E
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
