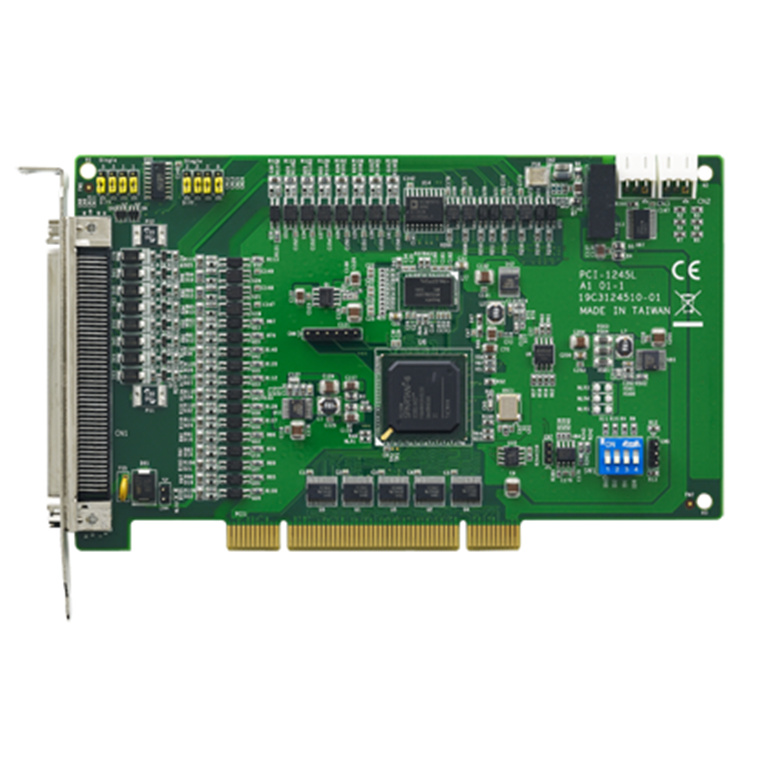

Advantech PCI-1245L-AE Light 4-Axis Motion Control Universal PCI Card
Advantech PCI-1245L-AE Light 4-Axis Motion Control Universal PCI Card
- Brand: Advantech
- MPN: PCI-1245L-AE
- Part #: IPCAVH220961
- UPC:
- Brand: Advantech
- MPN: PCI-1245L-AE
- Part #: IPCAVH220961
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PCI-1245L-AE Light 4-Axis Motion Control Universal PCI Card
- Brand: Advantech
- MPN: PCI-1245L-AE
- Part #: IPCAVH220961

Product URL: https://www.pbtech.co.nz/product/IPCAVH220961/Advantech-PCI-1245L-AE-Light-4-Axis-Motion-Control
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- Encoder input is 4 MHz for 4xAB mode, 1 MHz for CW/CCW mode
- Pulse output up to 1 Mpps and the output type can be switched to differential or single-end by jumper setting
- Supports 2 axis linear interpolation
- Supports T/S-curve
- Supports speed override
- Hardware emergency input
- Watchdog timer
- Supports programmable acceleration/deceleration rate
- Programmable interrupt
- RDY dedicated input channels & SVON/ERC dedicated output channels are switchable for general input and output purposes
Specifications
Pulse Type Motion Control
Motor Driver Support
Pulse-type servo/stepping
Number of Axes
4
Interpolation
2-axis linear interpolation
Max. Output Speed
1 Mbps
Step Count Range
±2, 147, 483, 646
Pulse Output Type
Pulse/direction (1-pulse, 1-direction type) , CW/CCW (2-pulse type) or single-ended +5V output
Position Counters
Range of command and actual position
Velocity Profiles
T-Curve, S-Curve
Local I/O
Machine Interfaces: LMT+, LMT-, ORG
Servo Driver Interfaces: ALM, INP
Encoder Interface
Input Type
Quadrature (A/B phase) or up/down
Counts per Enc. Cycle
x1, x2, x4 (A/B phase only)
Input Range
3~10 V
Isolation Protection
2,500 VDC
Max. Input Frequency
4 MHz under 4xAB mode
General
Bus Type Universal
PCI V2.2
Connectors
1 x 100-pin SCSI female connector
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
Typical: 5 V @ 0.6 A
Max.: 5 V @ 1 A
Humidity
5 ~ 95% RH, non-condensing (IEC 60068-2-3)
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 85°C (-4 ~ 185°F)
