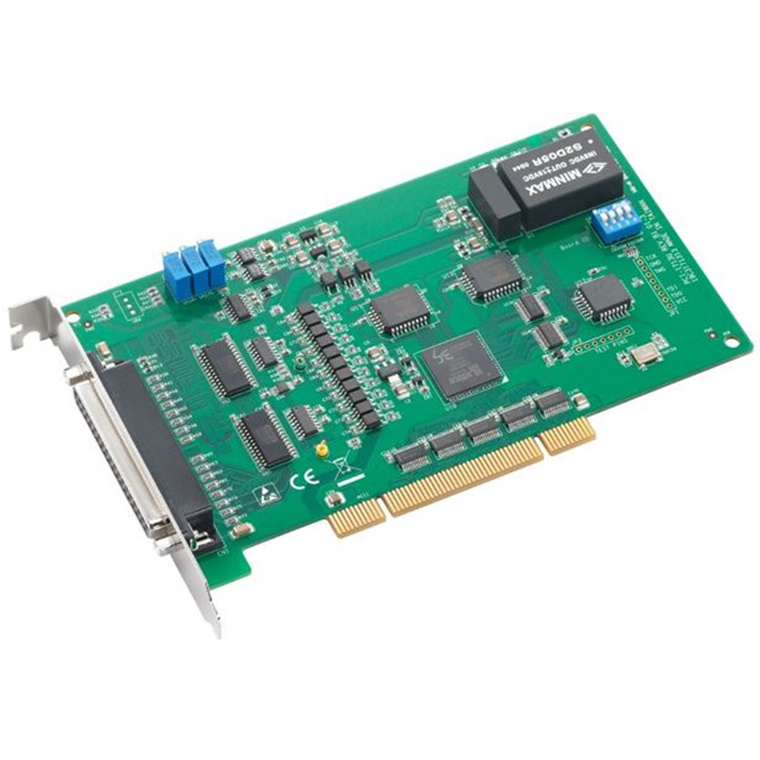

Advantech PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
Advantech PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
- Brand: Advantech
 - MPN: PCI-1713U-BE
 - Part #: IPCAVH220990
 - UPC:

- Brand: Advantech
 - MPN: PCI-1713U-BE
 - Part #: IPCAVH220990
 - UPC:

Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O




                                                            Advantech PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
- Brand: Advantech
 - MPN: PCI-1713U-BE
 - Part #: IPCAVH220990

            Product URL: https://www.pbtech.co.nz/product/IPCAVH220990/Advantech-PCI-1713U-BE-100-kSs-12-bit-32-ch-Isolat
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Advantech PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
- 2,500 VDC isolation protection
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 12-bit resolution for A/D conversion
- Programmable gain for each input channel
- Software, internal or external pacer sampling modes supported
- Onboard FIFO memory: 4,096 samples;
- Universal PCI bus
- BoardID™ switch
For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1713U/Product%20-%20Datasheet/PCI-1713U20150714145349.pdf
Specifications
Analog Input
Channels
32
Input Range
±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Isolation Protection
2,500 VDC
Resolution(Bits)
12-bit
Sampling Rates(S/s)
100 KS/s (sum)
General
Bus Type
Universal PCI V2.2
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
I/O Connector
1 x DB37 female connector
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
Typical: 5 V @ 850 mA
Max.: 5 V @ 1.0 A
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95% RH non-condensing
