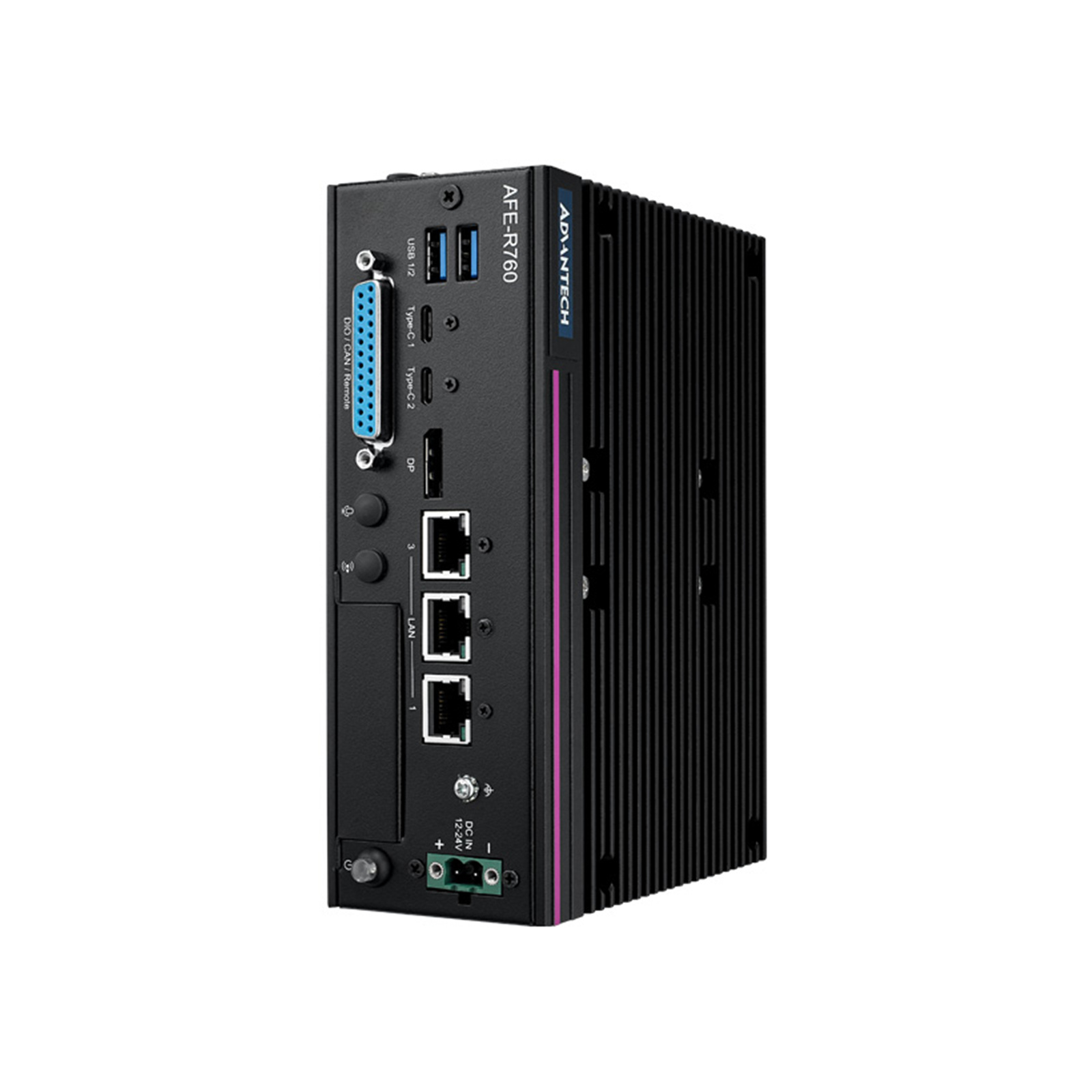

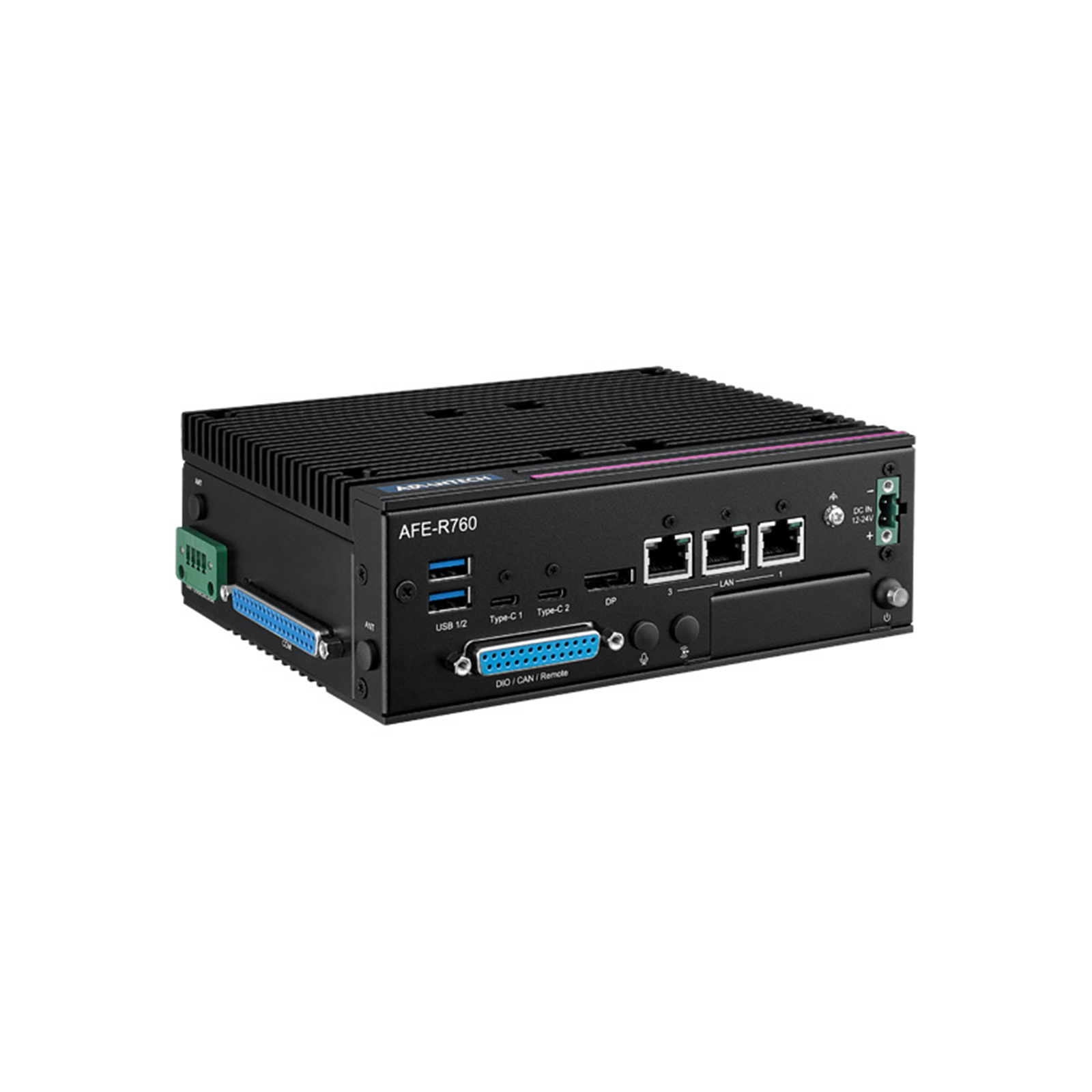

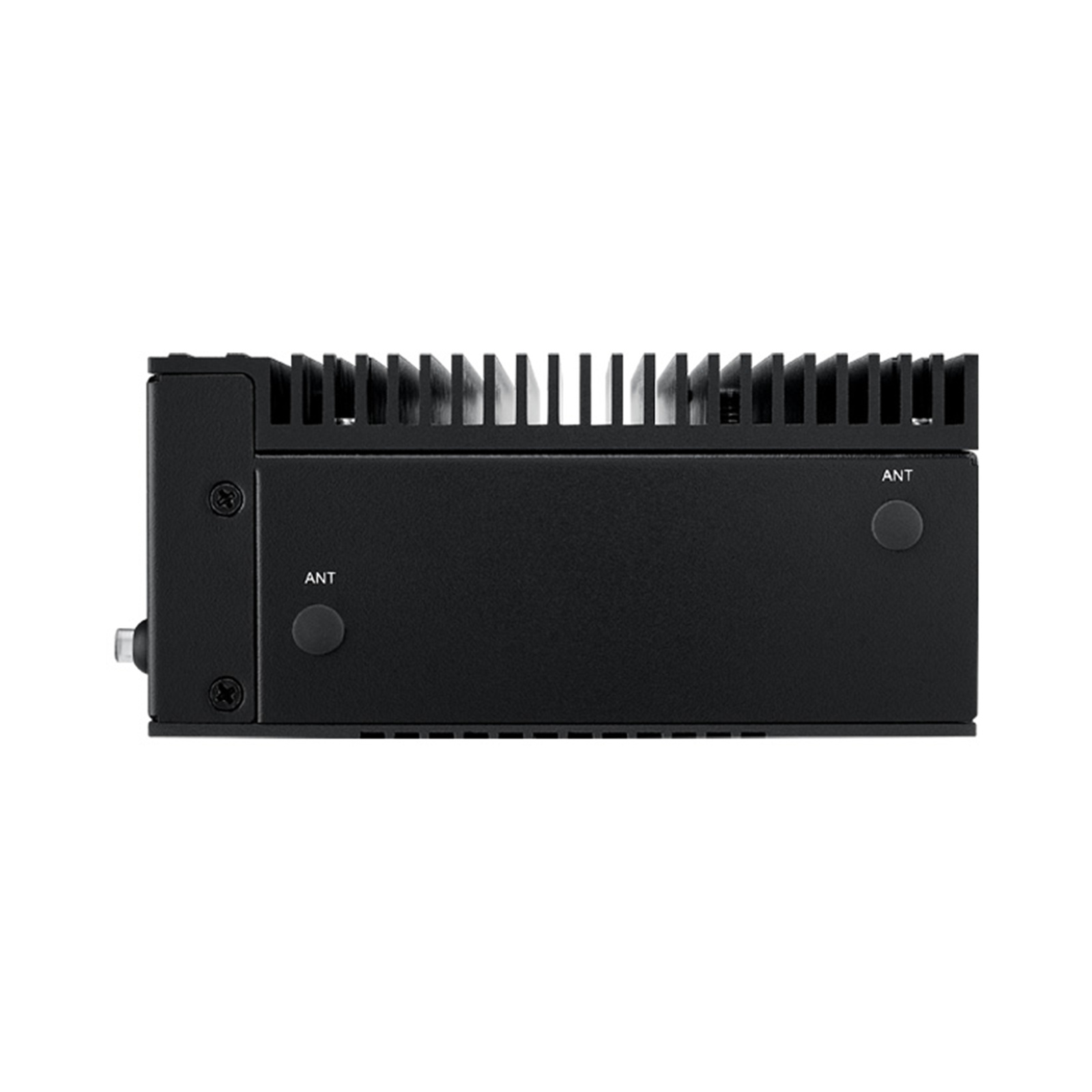

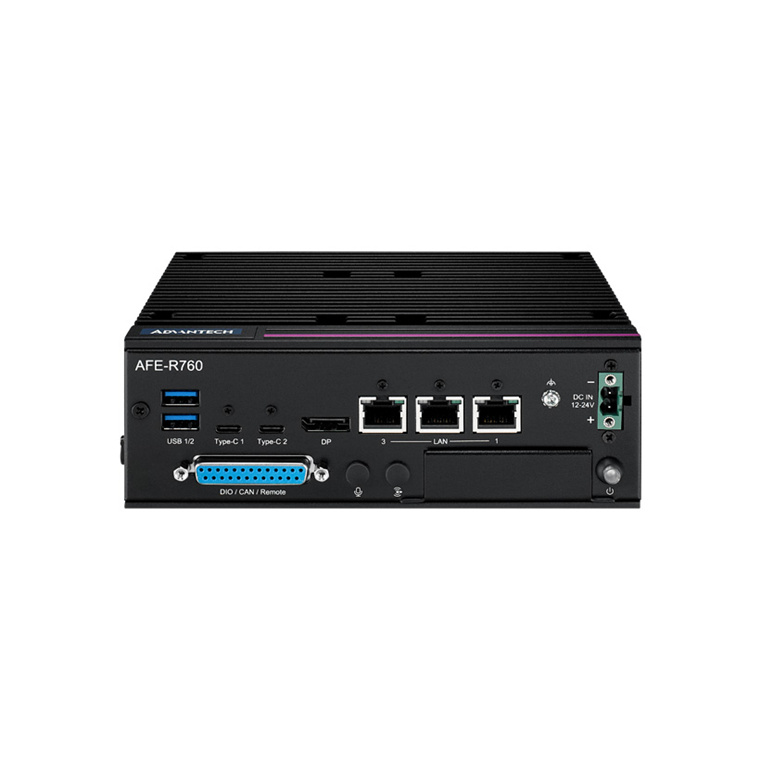

Advantech AFE-R760-Q8A1 Intel Core Ultra 7, 155H Processors AMR control system Fanless
- Brand: Advantech
- MPN: AFE-R760-Q8A1
- Part #: IPCAVH500028

Product URL: https://www.pbtech.co.nz/product/IPCAVH500028/Advantech-AFE-R760-Q8A1-Intel-Core-Ultra-7-155H-Pr
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
Intel® Core™ Ultra 7/5 Processors AMR control system
- Intel® Core™ Ultra 7/5 Processors, up to 16 Cores, TDP 28W
- Dual Channel DDR5-5600, up to 96GB
- Support 4x GMSL through 120pin B2B connector
- Dedicate I/Os for AMR: 3x 2.5GbE, 2x USB-C, 2x USB-A, 4x COM, 2x CAN-FD, 8-bit GPIO
- ESD protection : Contact 8KV, Air 15KV
- Supports Ubuntu22.04/ 24.04 LTS, Windows 10/ 11 LTSC, Advantech Robotic Suite
- Integrated CPU, GPU, and NPU provide up to 32 TOPS AI performance
Specifications
Processor System
Processor
Core Ultra 7, 155H
Max. Frequency
4.8GHz
Base Frequency (P-Core)
1.4GHz
Core/ Thread
16, 6P+8E+2LE/ 22
LLC
24MB
TDP
28W
Chipset
On-package Intel 600 Series Chipset
BIOS
AMI EFI 256Mbit
Memory
Technology
DDR5 5600 MHz
Max. Capacity
96 GB
Socket
2 x 262-pin SO-DIMM
Graphics
Chipset
Intel® ARC® Graphics
3D/ HW Acceleration
DX12.2, OGL4.6, OCL3.0, HW Encode/ Decode: H.265 (HEVC), H.264, AV1, VP9
DP
1 x DP1.4a, up to 4096 x 2160x 36bpp @60Hz
Ethernet
LAN1/2/3
10/100/1000/2500 Mbps Intel i226-LM GbE, support Wake On Lan
Audio
Interface
Realtek ALC888s, Line-out/Mic-in (optional by 1700035708-01)
Others
Watch dog Timer
65536 level, 0~65535 sec
TPM
Discrete TPM2.0, fTPM* support by request
I/O Interface
Serial Port
4 x RS-232/422/485, max. 1Mbps
USB Type-C
2 x USB3.2 Gen2x1 10Gbps, support DisplayPort1.4 Alt. Mode
USB Type-A
2 x USB3.2 Gen2x1 10Gbps
GPIO
8-bit general purpose input output I/O
CANBus
2 x CAN-FD
FAN
1x FAN connector (12V0.35A)
Expansions
M.2 E Key
1 x E-Key 2230 (PCIex2, USB2.0)
M.2 B-Key
1 x B-Key 3052 (PCIe x2/ SATA, USB2.0) w' Nano SIM
M.2 M-Key
2 x M-Key 2280 (PCIex4 Gen.4 NVMe)

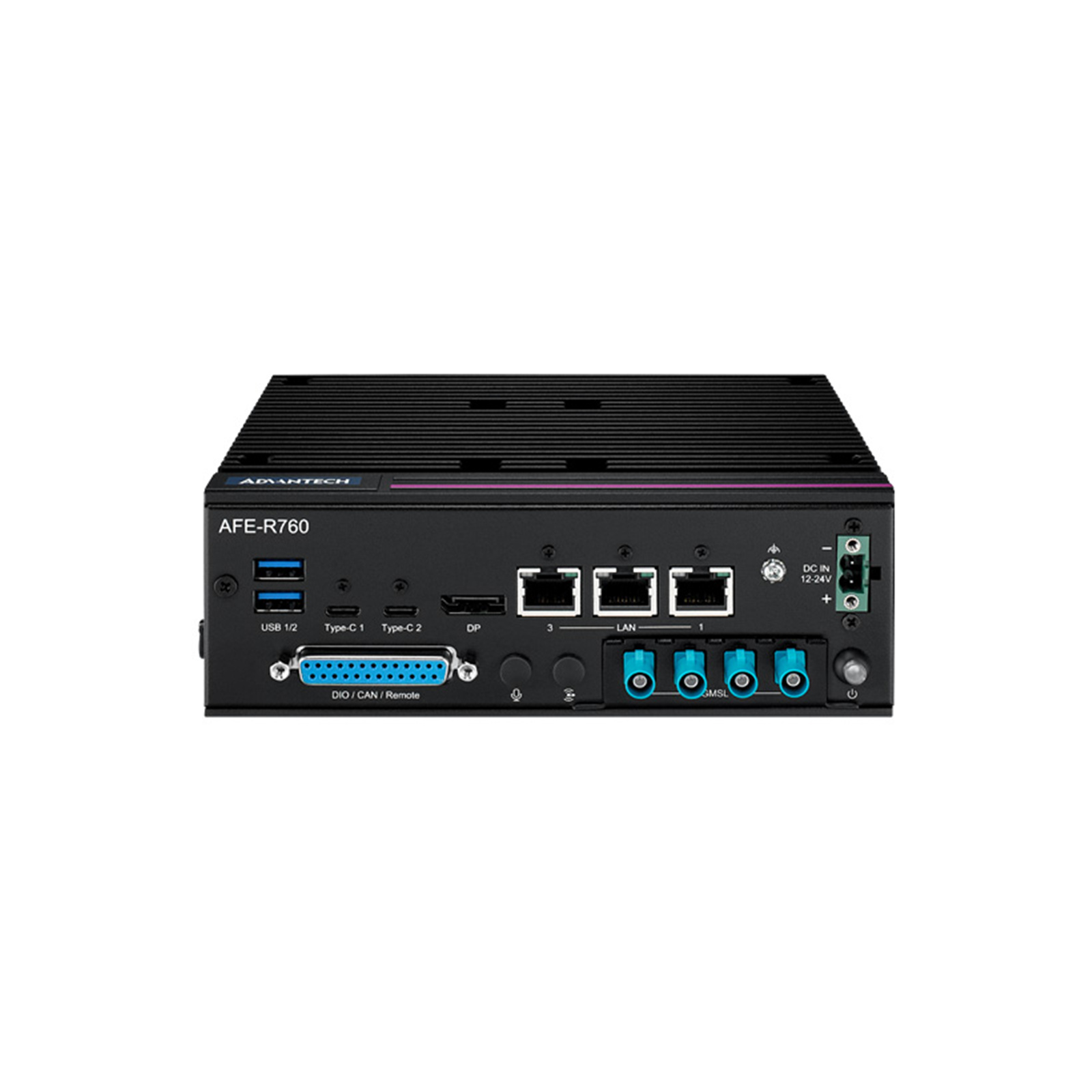

GMSL
Up to 4x FAKRA, expanded through GMSL interfaced card, MIOe-GMSL. (Optional)
Software Support
Microsoft Windows
Windows 10/ 11
Linux
Ubuntu 22.04/ 24.04
ROS2
Ready by Advantech Robotic Suite
Power Requirements
Power Input Voltage
12-24VDC
Power Source
DC Battery or AC to DC 150W adapter (Optional)
Power Consumption (CPU/Memory Only)
Typical (OS idle mode)
9.12W
Max. (Full loading)
45.12W
Mechanical
Construction
Aluminum housing
Mounting
DIN-Rail mounting, Wall mounting (Optional)
Dimensions (W x H x D)
175 x 60 x 130 mm
Weight
1.6 kg (3.5 lb)
Environment
Operating Temperature
with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Storage Temperature
-40 ~ 85° C
Relative Humidity
95% @ 40° C (non-condensing)
Vibration During Operation
3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation
30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC
Heavy industrial certificates, CE/FCC Class B, UKCA, CCC, BSMI
Safety
CB, UL, UKCA, CCC, BSMI
