FootfallCam FootfallCam Centroid

PB Tech price
PB Tech price
$ 1,410 .43
 +GST
$ 1,621 .99
 inc GST

Out of stock

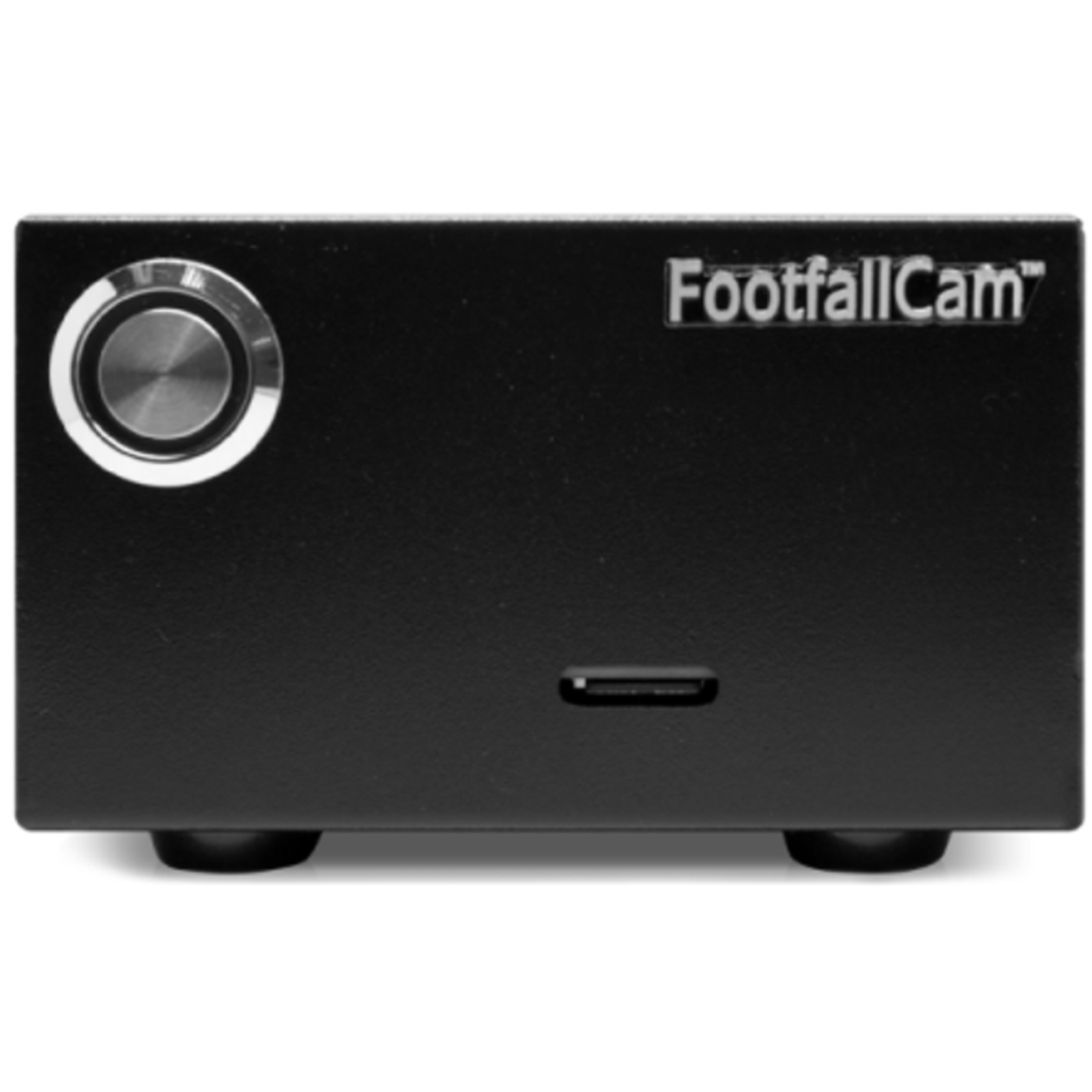

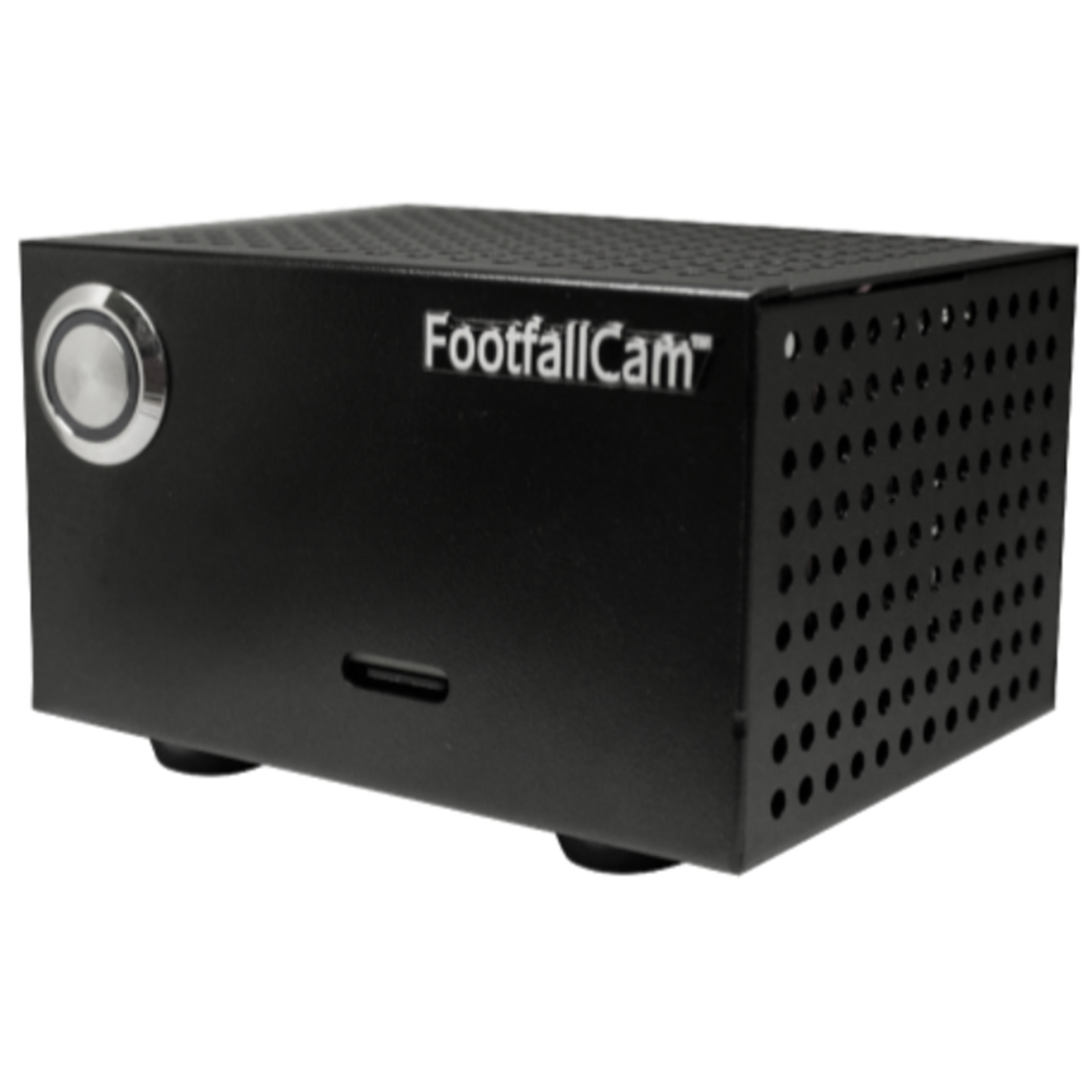

FootfallCam FootfallCam Centroid

PB Tech price
$ 1,410 .43 $ 1,621 .99
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

FootfallCam Centroid™ processes up to eight HD full-motion video streams in real-time and can be deployed as a low-power edge intelligent video analytics platform for Network Video Recorders (NVR), smart cameras, and IoT gateways. Applications include human detection, pose estimation and car detection.

- Processes up to 8 CCTVs in real-time
- Designed for human and car detection
- Conjunction with FootfallCam people counter and/or any CCTV cameras
- Easy to install, maintain, and integrate on FootfallCam Server or On-Premise Server.
- Made in UK; Manufactured by ODM


2D AI Video Analytics

It has a powerful processor to deploy as a low-power edge intelligent video analytics platform for Network Video Recorders (NVR), smart cameras and IoT gateways. FootfallCam Centroid™ carries out object detection and classification for any industry.

- Pedestrian counting
- Vehicle counting
- Area counting (eg: Crowd counting)
- Profile tracking
- Path tracking

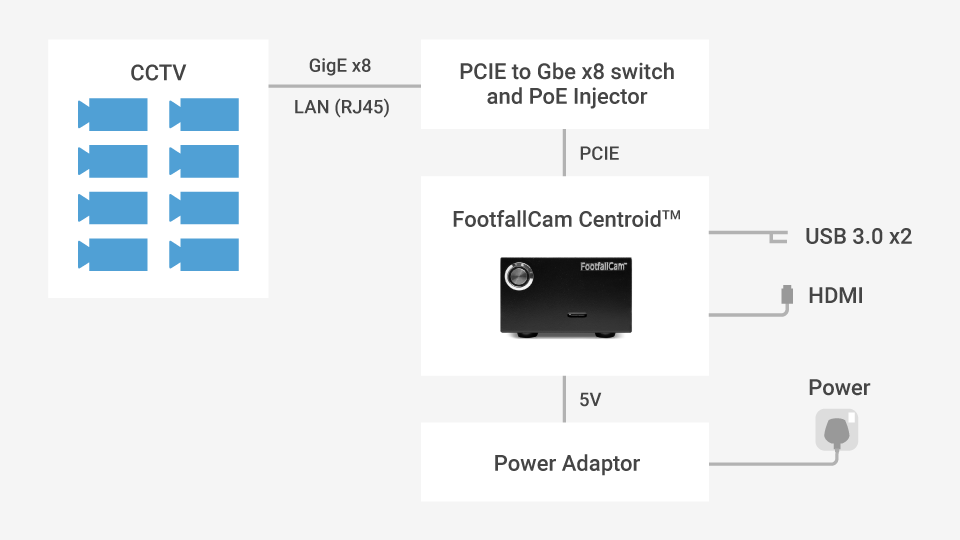

Multi stream video analytics

FootfallCam Centroid™ can be connected to up to 8 CCTV cameras for maximum coverage and cost-effectiveness. The videos from PoE Switch/ DVR/ NVR are processed in real time to generate in-depth data analytics. The aggregated data from each raw video stream are available to be accessed through FootfallCam Analytic Manager V9™ with read-made modules and reports.

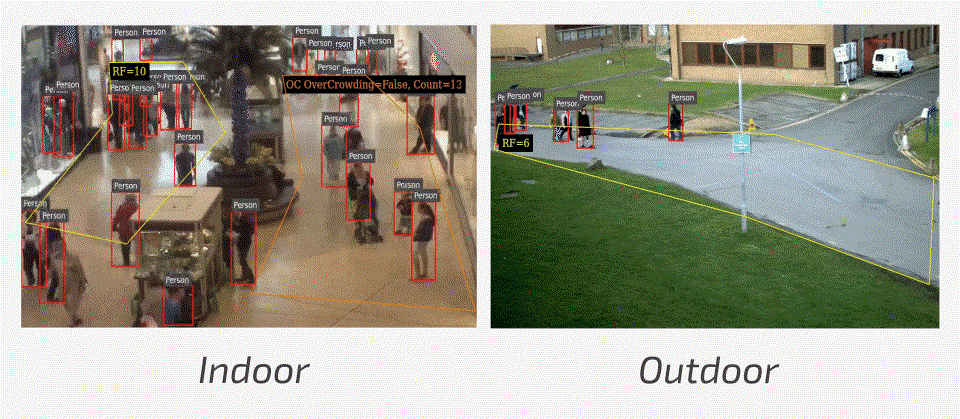

Data analytics for both indoors & outdoors

Data analytics of FootfallCam Centroid™ only required videos and connection between FootfallCam Analytic Manager V9™. The deployment can be carried out for public areas, be it sheltered or unsheltered. For example: Football fields, public squares, amusement parks, museums, and more.

Specifications

GENERAL SPECIFICATION

Model

Centroid

Weight

270gm

Casing Colour

Black

Casing Material

Metal

Total Dimensions

104mm(W) x 81mm(D) x 60mm(H)

PROCESSOR SPECIFICATION

CPU

64-bit Quad-core 1.43GHz

GPU

128-core 921MHz

Memory

4GB 64-bit LPDDR4 1600MHz | 25.6 GB/s

Video Encoder

4Kp30 | (4x) 1080p30 | (2x) 1080p60

Video Decoder

4Kp60 | (2x) 4Kp30 | (8x) 1080p30 | (4x) 1080p60

Power

10W

INTERFACES SPECIFICATION

USB

4x USB 3.0 A (Host) | USB 2.0 Micro B (Device)

Display

HDMI | DisplayPort

Networking

Gigabit Ethernet (RJ45)

Wireless

M.2 Key-E with PCIe x1

Storage

MicroSD card (16GB UHS-1 recommended minimum)

SIM Card

4G/LTE/3G

Other I/O

(3x) I2C | (2x) SPI | UART | I2S | GPIOs

Power Supply

5V4A DC Power Adapter

OPERATIONAL

Average Data Transfer Rate*

5.0 kilobytes/hour

Manufacturer Part No:
FC-FCT02
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCFTF5000009
Product Model:
-
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
