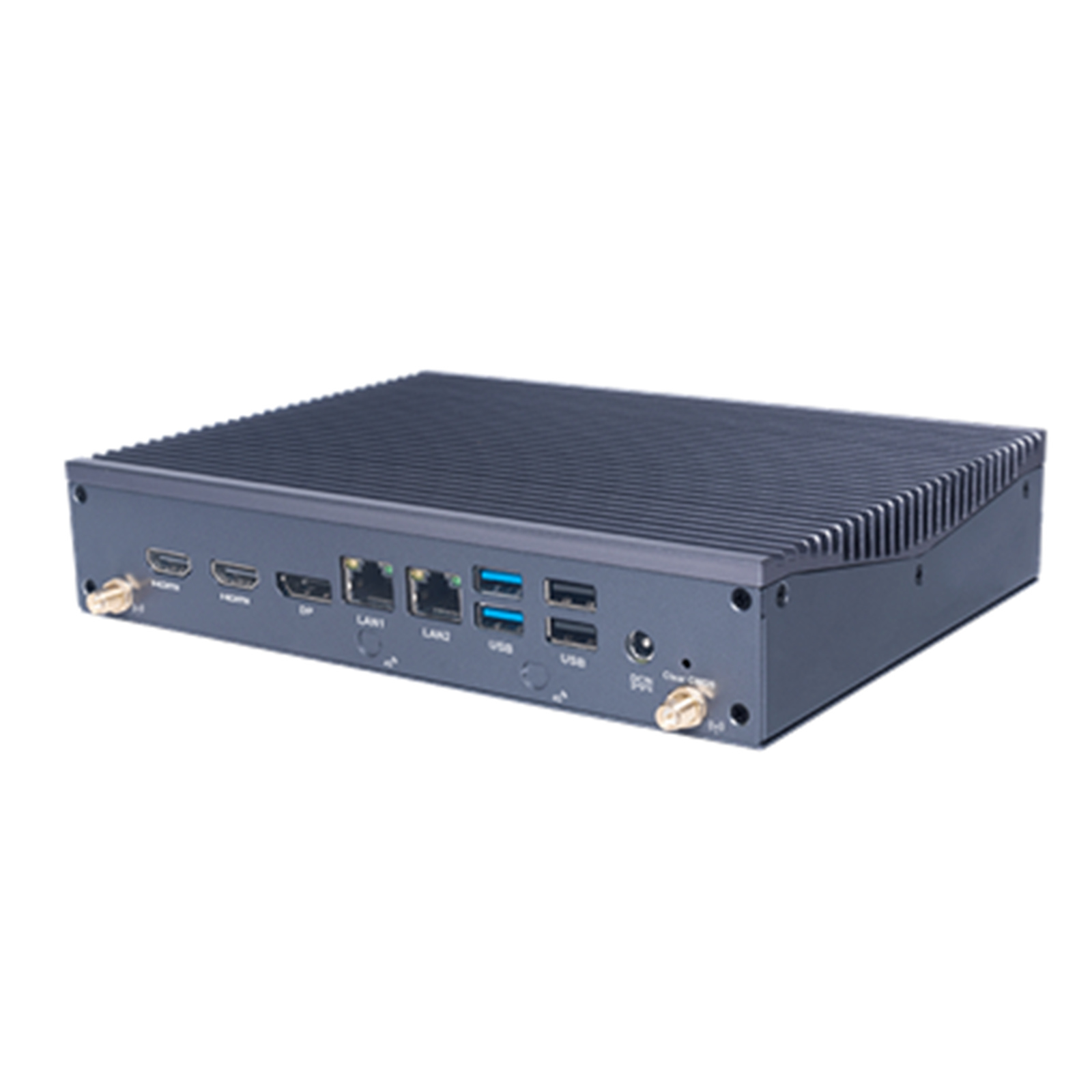

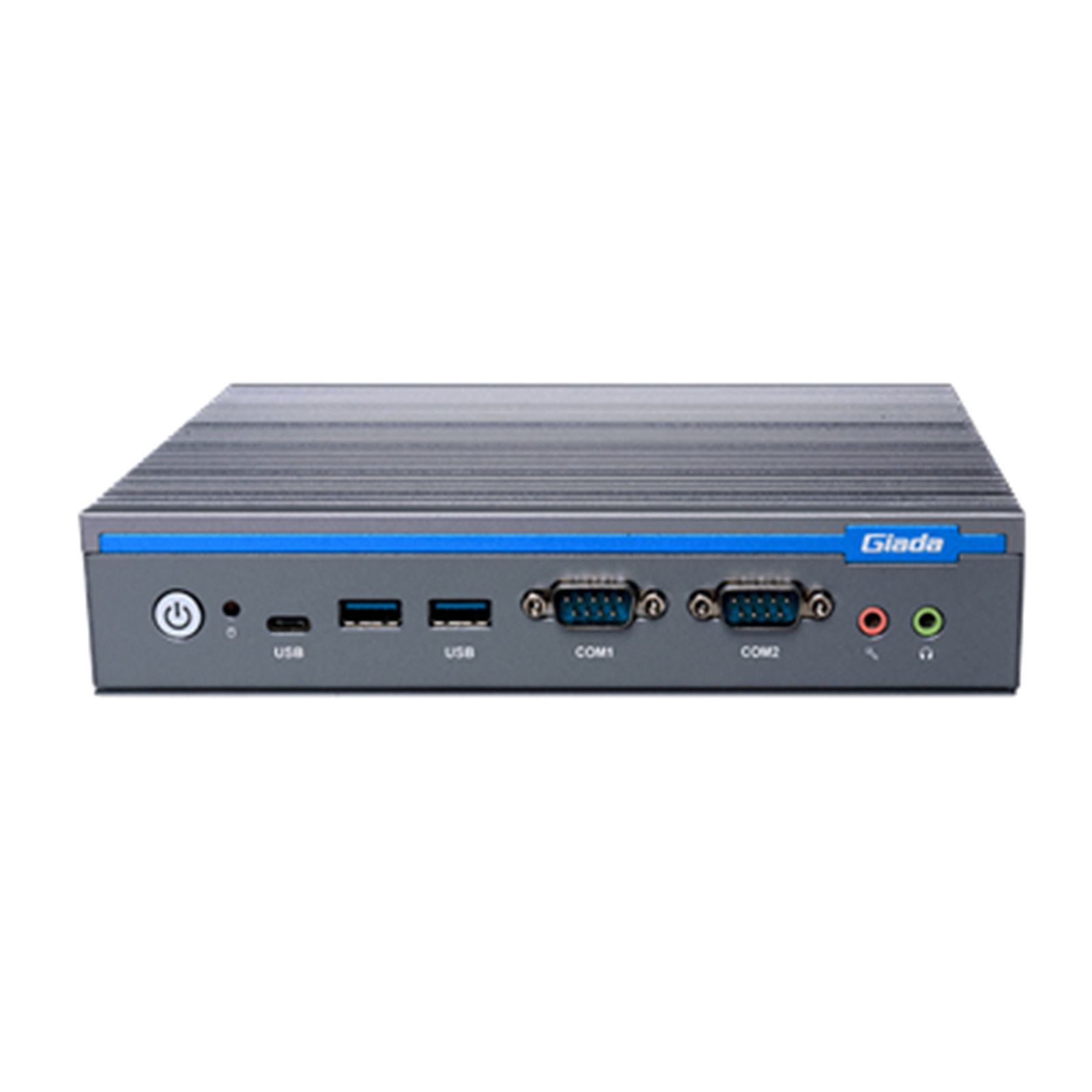

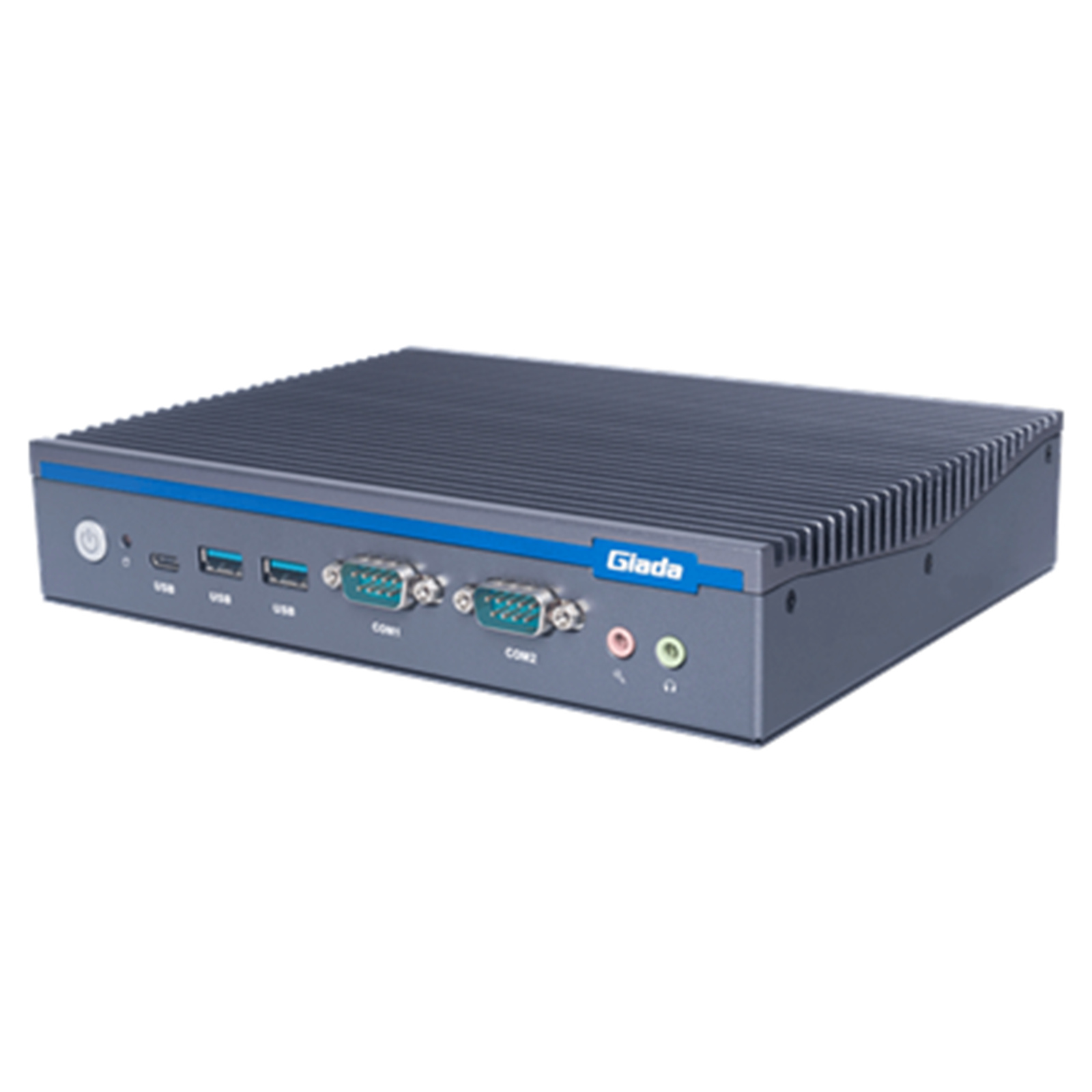

Giada DF612-i5 Core i5-1235U CPU, Barebone, Windows/Linux, 1xDP+2xHDMI, Fanless, 8K Display,
Out of stock
Giada DF612-i5 Core i5-1235U CPU, Barebone, Windows/Linux, 1xDP+2xHDMI, Fanless, 8K Display,
- Brand: Giada
- MPN: DF612-i5
- Part #: IPCGDA20012
- UPC:
- Brand: Giada
- MPN: DF612-i5
- Part #: IPCGDA20012
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Giada DF612-i5 Core i5-1235U CPU, Barebone, Windows/Linux, 1xDP+2xHDMI, Fanless, 8K Display,
- Brand: Giada
- MPN: DF612-i5
- Part #: IPCGDA20012

Product URL: https://www.pbtech.co.nz/product/IPCGDA20012/Giada-DF612-i5-Core-i5-1235U-CPU-Barebone-WindowsL
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Powered by Intel® 12th Gen. CPU

Supporting 8K Display




Specifications
CPU
CPU
Intel® Core™ i5-1235U processor
Efficient Frequency
3.30 GHz/3.30 GHz/3.50 GHz
Performance Frequency
4.40 GHz/4.40 GHz/4.70 GHz
Chipset
SoC
Processing Units
6 Cores /10 Cores /10 Cores
Configurable TDP-up
15 W /15 W /15 w
Memory
Size
Up to 64 GB
Type
2 x SO-DIMM DDR4-3200 MHz
Storage Socket 1
1 x M-Key M.2 (2242/2280) for PCIe SSD
Display
GPU
Intel® UHD Graphics (Core™ Core i3)
Intel® IRIS® Xe Graphics (Core™ Core i5/i7)
Graphic Engine
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
Display Interface
1 x DP (Max.7680 x 4320 @60 Hz)
2 x HDMI (Max.4096 x 2304 @60 Hz)
Network
Network Controller
1 x Intel i219-LM Gigabit Ethernet
1 x Realtek RTL8111H Gigabit Ethernet
Ethernet Interface
2 x RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
Mobile Network
1 x B-Key M.2 (3042) for 3G/4G,
1 x SIM Slot
I/O interface
USB
1 x USB Type-C3.2 Gen2 (10 Gbps),
4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
Serial Port
1 x RS232, 1 x RS232/422/485
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT
2 x Connector for 3G/4G (Reserved)
System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Power Requirement
DC-IN, 19 V/3.42 A
Dimensions
200 mm x 150 mm x 40 mm (7.87" x 5.90" x 1.57")
Construction
Metal, Grey
Operating System
Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B, UKCA
