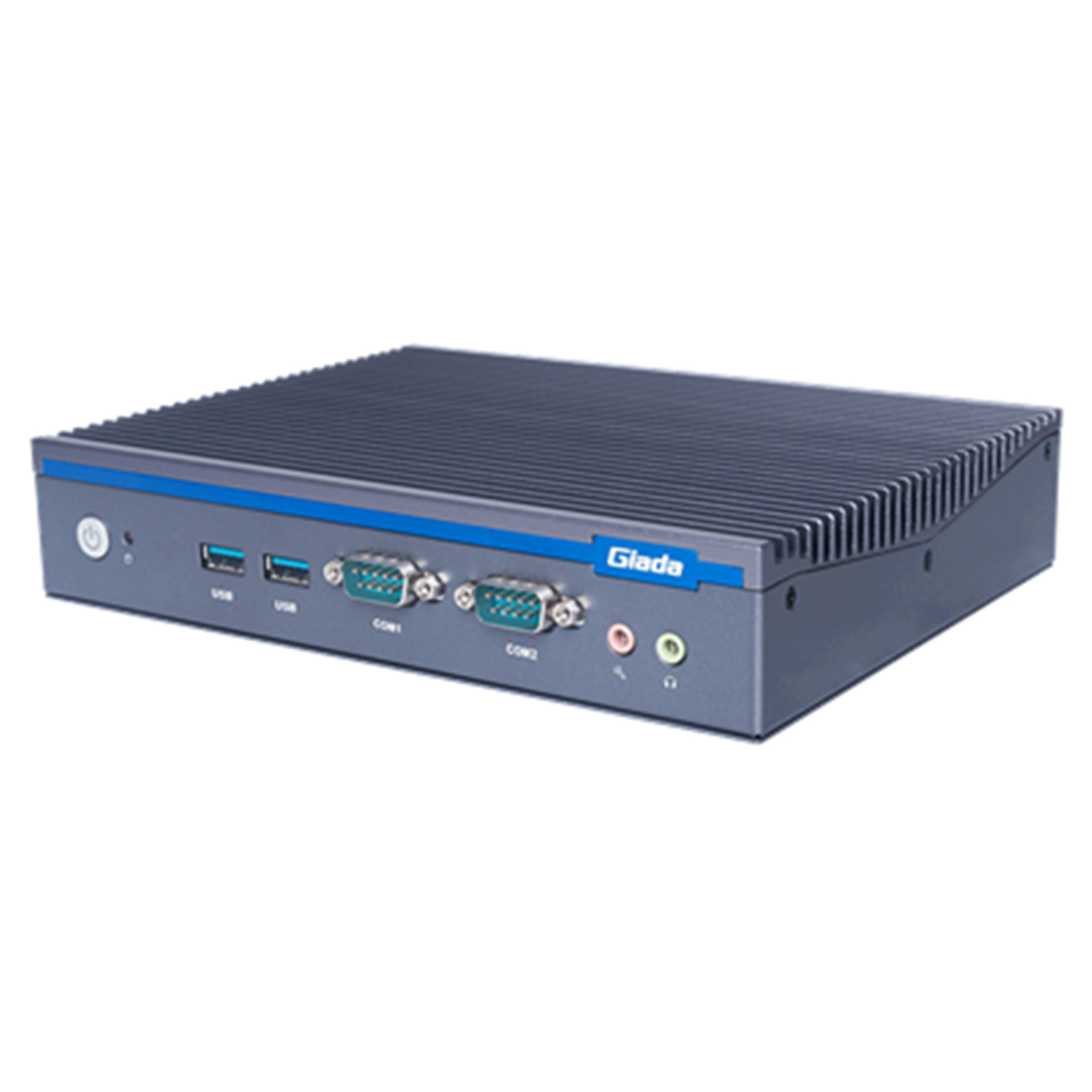

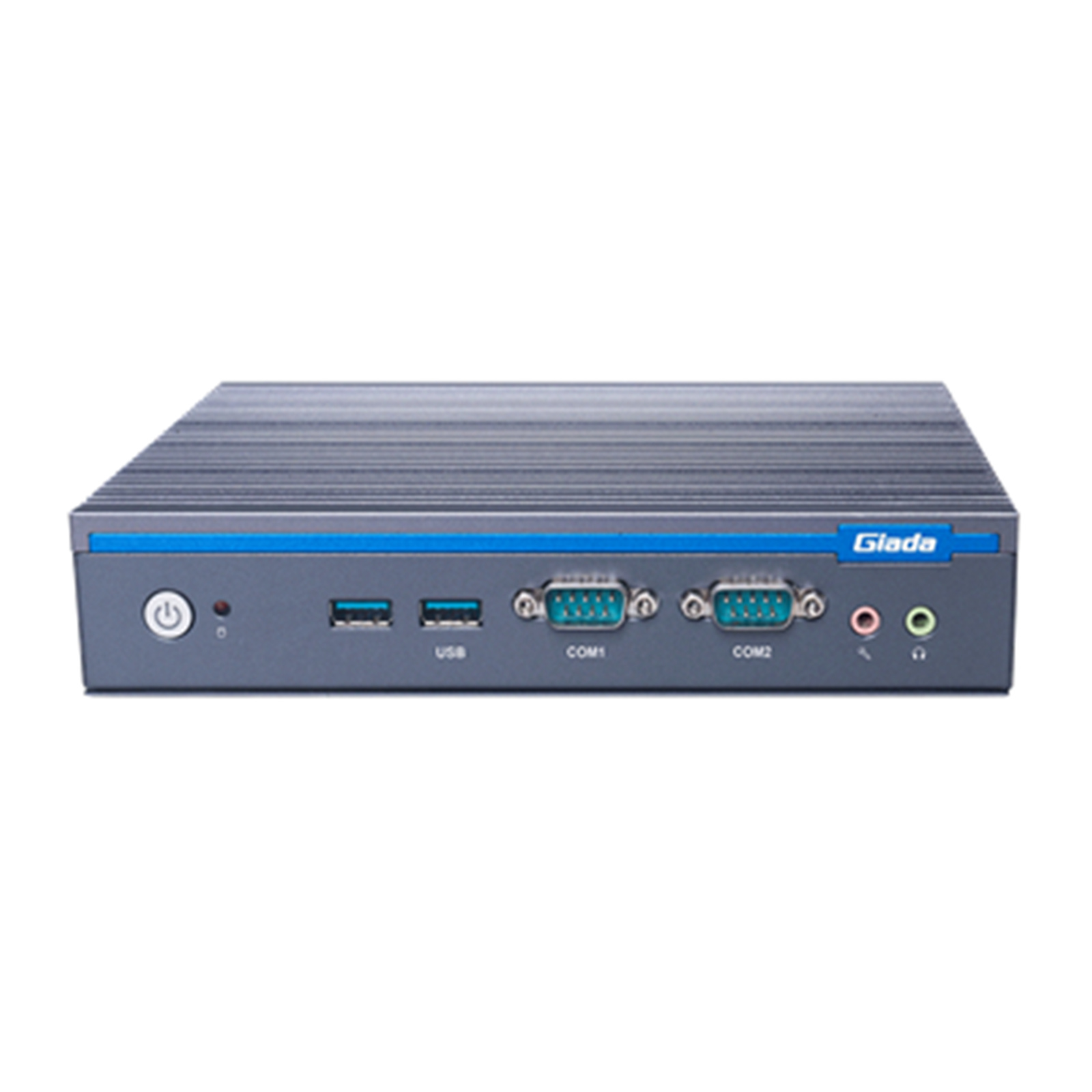

Giada AE613-i3 Core i3-1315U CPU, Barebone vPro Technology, Windows/Linux, -20 C- 60 C, 1xDP+2xHDMI, Fanless

PB Tech price
PB Tech price
$ 841 .60
 +GST
$ 967 .84
 inc GST

Out of stock

Giada AE613-i3 Core i3-1315U CPU, Barebone vPro Technology, Windows/Linux, -20 C- 60 C, 1xDP+2xHDMI, Fanless

  • Brand: Giada
  • MPN: AE613-i3
  • Part #: IPCGDA20013
  • UPC:
PB Tech price
$ 841 .60 $ 967 .84
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

Intel® 13th Gen. Raptor Lake Processors High Computing Performance
Giada AE613, powered by Intel® Raptor Lake™ Core i3-1315U/i5-1335U processors, introduces a new era of performance and efficiency. The semi-industrial computer features TDP of 15W, which provides superior processing power while minimizing energy consumption.
Semi-industrial PC
Giada AE613 is a semi-industrial PC supporting wide temperature (-20? ~60?) and voltage (12 V~24 V) range. With 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 and two COM ports, this device is ready for anything.
3 Display Outputs
Supporting 8K
Giada AE613 has 3 display outputs, with a DP and two HDMI ports. Powered by Intel® UHD Graphics (Core i3)/Intel® Iris® Xe Graphics (Core i5), Giada AE613 can support 8K resolution (7680 x 4320 @60 Hz), delivering stunning visuals and an immersive multimedia experience.
Intel® vPro Technology
Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.
Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada? device applicable in mission critical applications.

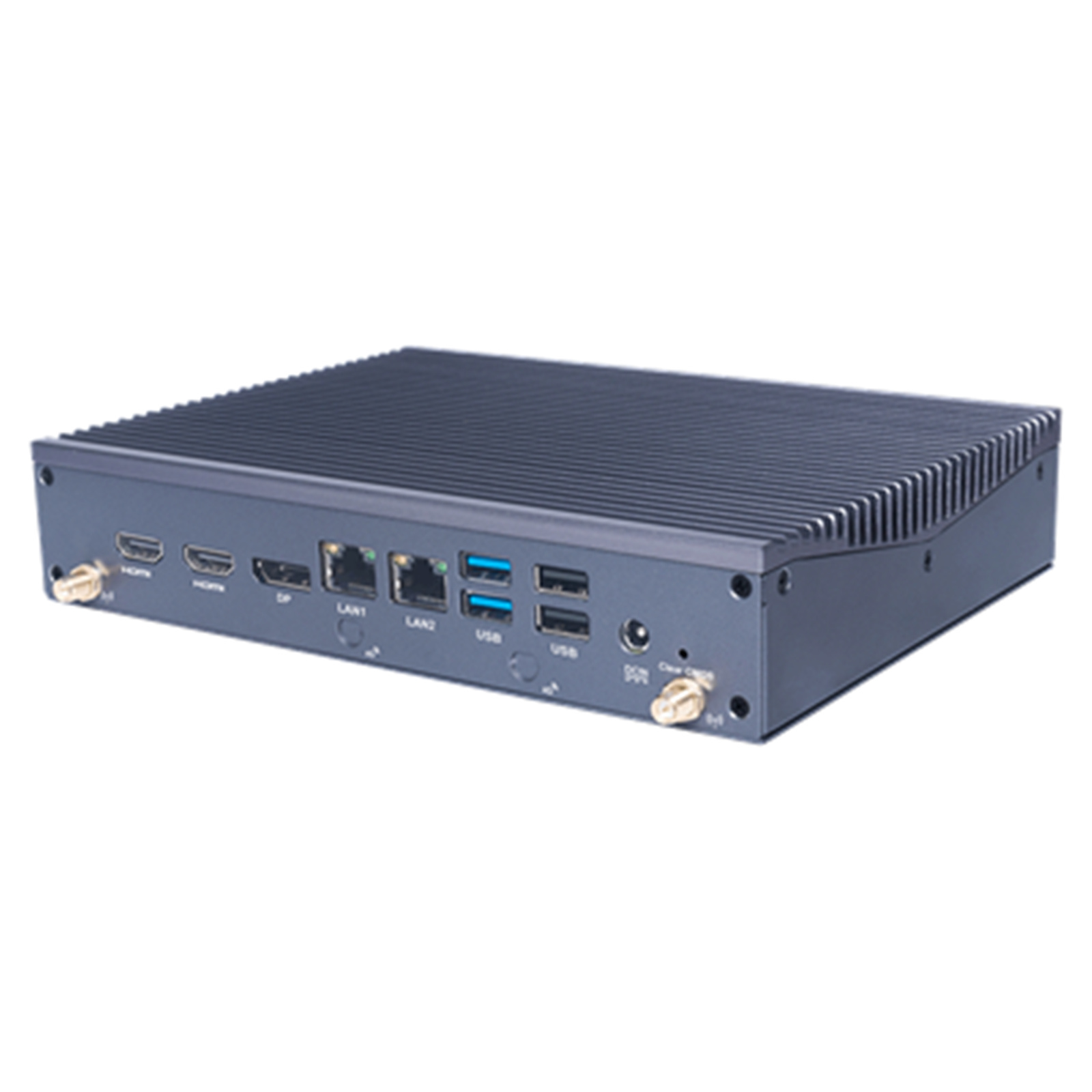

                           I/O port introduction

Specifications

CPU

CPU

Intel® Core™ i3-1315U processor

Efficient Frequency

3.30 GHz/3.40 GHz

Performance Frequency

4.50 GHz/4.60 GHz

Chipset

SoC

Processing Units

6 Cores /10 Cores

Configurable TDP-up

15 W /15 W

Memory

Size

Up to 64 GB

Type

2 x SO-DIMM DDR4-3200 MHz

Storage

Socket 1

1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD

Display

GPU

Intel® UHD Graphics (Core™ Core i3)
Intel® IRIS® Xe Graphics (Core™ Core i5)

Graphic Engine

DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC

Display Interface

1 x DP (Max.7680 x 4320 @60 Hz)
2 x HDMI (Max.4096 x 2304 @60 Hz)

Network

Network Controller

1 x Intel i219-LM Gigabit Ethernet
1 x Intel i210-IT Gigabit Ethernet

Ethernet Interface

2 x 1 GbE RJ45

Wi-Fi/BT

1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

Mobile Network

1 x B-Key M.2 (3042) for 3G/4G,
1 x SIM Slot

I/O interface

USB

4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

Serial Port

1 x RS232, 1 x RS232/422/485

Audio

1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT
2 x Connector for 3G/4G (Reserved)

System

TPM

Optional: TPM2.0

Watchdog Timer

Yes

Auto Power On

Yes

RTC

Set up independently every day, a week as a cycle

Power Requirement

DC-IN, 12 ~ 24V, 90W

Dimensions

200 mm x 150 mm x 50 mm (7.87" x 5.90" x 1.97")

Construction

Metal, Grey

Operating System

Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature

-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow

Humidity

10% ~ 90% @45°C (non-condensing)

Storage Temperature

-40°~80°C (-40°F~176°F) not include the package

Certifications

CE, FCC Class B, UKCA

Manufacturer Part No:
AE613-i3
Brand:
Giada
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCGDA20013
Product Model:
AE613-i3
Warranty: 12 months *
