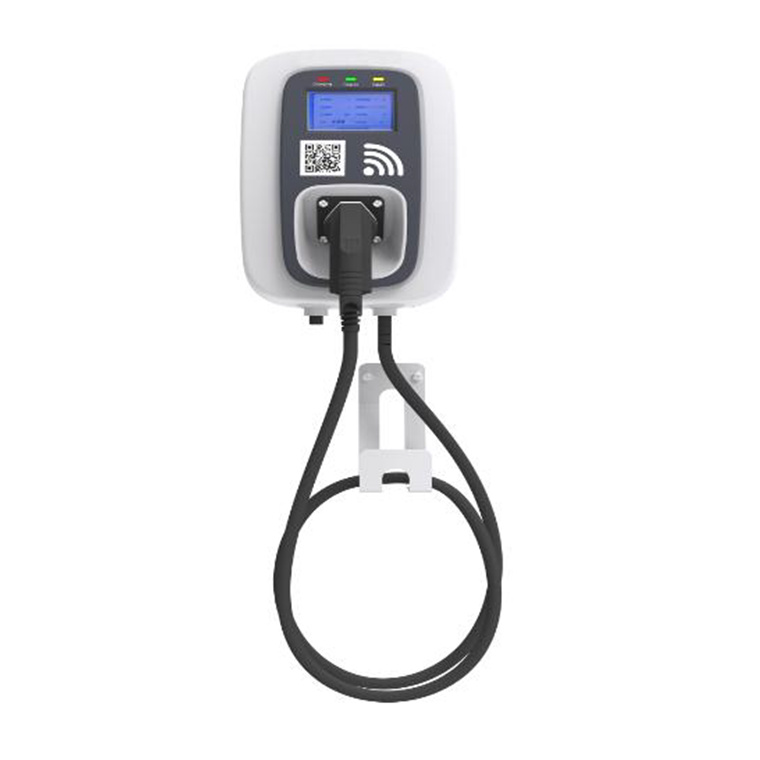

IES Lab ICS series EV charger, AC 1-phase, 7KW, Case B, wall-mounted and floor-mounted
Out of stock
IES Lab ICS series EV charger, AC 1-phase, 7KW, Case B, wall-mounted and floor-mounted
- Brand: IES Lab
- MPN: iES-ICS 70032EB
- Part #: IPCIESICS001
- UPC:
- Brand: IES Lab
- MPN: iES-ICS 70032EB
- Part #: IPCIESICS001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





IES Lab ICS series EV charger, AC 1-phase, 7KW, Case B, wall-mounted and floor-mounted
- Brand: IES Lab
- MPN: iES-ICS 70032EB
- Part #: IPCIESICS001

Product URL: https://www.pbtech.co.nz/product/IPCIESICS001/IES-Lab-ICS-series-EV-charger-AC-1-phase-7KW-Case
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Introduction
iES-ICS series EV AC chargers are available in wall-mounted and floor-mounted configuration with output current of 16A, 32A and 63A. The charger is reliable,flexible,
fast and easy to operate, fully tested by authorities, suitable for public and residential parking lots, highway service areas, etc.
Features
- Touch Screen
Colored LCD touch screen user interface, displaying operation status,charging progress, IC card balance and other information
- Metering
Complying with the relevant provisions of AC power metering
- Card Swiping
Supporting card swiping methods such as RFID and IC card with charging billing and control
- Various Payment Methods
Supporting third-party payment platform, bus card, mobile phone payment,etc.
- Data Management
Protecting and managing the integrity and security of data, allowing data query and replication
- Remote Monitoring
Available in communication with server control and management system, supporting Ethernet, 3G, 4G, etc.
- Safety & Protections
Self-checking, fault alarm, over-current, over- voltage, under-voltage, leakage, anti-lightning, emergency stop, pull-out to power-off, auto power-off on abnormal charging, full auto-stop and other protections
- Charging Reservation
Can be set to charge according to charging amount, power, time etc., or charge automatically
Advantages
- International Standard
Complying with European standards, CE certified, compatible with OCPP
- Higher Intelligence
Allowing search, navigation, inquiry and reservation via mobile app and supporting various payment methods
Advanced SSE Cloud management platform with intelligent monitoring
- Higher Reliability
Adopting flame-retarding materials, sturdy and well insulated shell; Key switch and swipe-card start, equipped with anti-theft holes;
Various other protections to ensure the safety of personnel and vehicles
- Higher Stability
Excellent protection against harsh environmental conditions
- According to IEC 61851-1
It needs RCD(Residual Current protective Devices) -TypeB OR RCD Type A and appropriate equipment that ensures the disconnection of the supply in case of fault current above 6 mA
Specifications
Input parameters
AC Frequency
45-65Hz
AC Voltage
AC220±10%; AC380±20%
Power Factor
>0.99
Total harmonic current
<5% (Rated input )
Output parameters
Output efficiency
(%) =98
Output
Insulation resistance (mO)
Leakage current
(mA) <30
Charging interfaces
1 or 2
Communication interface
Ethernet/3G/4G
Working environment
Operating temperature (?)
-20 ~ +50°C , full power output below 45?,Power derating 5%/ ? above 45?
Storage temperature
-40 ~ +70°C
Working humidity
0 ~ 95%
Working altitude
2000 m
Pollution gradation
=Level ?
Environment
No acid, alkaline or other corrosive gases or explosive gases in the ambient air, rain and
snow prevention measures required
Protection level
IP54
Protections
Over-current, over-voltage, under-voltage, leakage, anti-lightning, emergency stop, pullout
to power-off, full auto-stop
Standard
Monitor interface
OCPP 1.6J , LAN 10M/100M and optional inner LTE wireless modem support
Charging interface
IEC 62196-2, Type 2, 1-phase or Type 1-SAE J1772
The charging connector of M3W products meet IEC 62196-2, Type 2 plug (with charging cable).
M3W series products provide a Type 2 female plug with charging cable, it only charge an EV with a Type 2 vehicle inlet.
Certification
CE, ROHS, REACH ,ULus, ULc, FCC
Function and Interface
HMI
4.3-inch LCD screen (display charging current, voltage, energy, charging time, state & fault information, etc.)
Metering
1 or 2 AC energy meter GB/T 50063-2008 and DL/T 5137-2008 standard
Charging Mode Power Distribution Mode
Auto basis,Time basis,Amount basis,Energy basis
Stand alone,Current switch,Plug switch,Full hold,Master slave
Mechanical
Dimention (W * H * D mm)
264×120×388 (wall-mounted); 264×120×1400 (floor-mounted)
Weight(Kg)
10kg
Charging Protection
Overcurrent protection
Short circuit protection, Overvoltage protection, Undervoltage protection
Insulation monitoring, Protect Earth connect monitoring
Reverse polarity protection, Overtemperature protection
Configuration
Model Number
1-phase, 3.5kW / 7kW,Case B iES-ICS 35016EB/ iES-ICS 70032EB
1-phase, 3.5kW / 7kW Case C iES-ICS 35016EC/ iES-ICS 70032EC
3-phase, 11kW / 22kW, Case B iES-ICS 11016EB/ iES-ICS 11032EC
3-phase, 11kW / 22kW, Case C iES-ICS 11016EC/ iES-ICS 22032EC
